D10AFPG Banner Sensor Accessories
Part#:D10AFPG
Manufacturer:Banner
Alt. Part#:72810
Product Lifecycle:Active
Get a quick Quote!

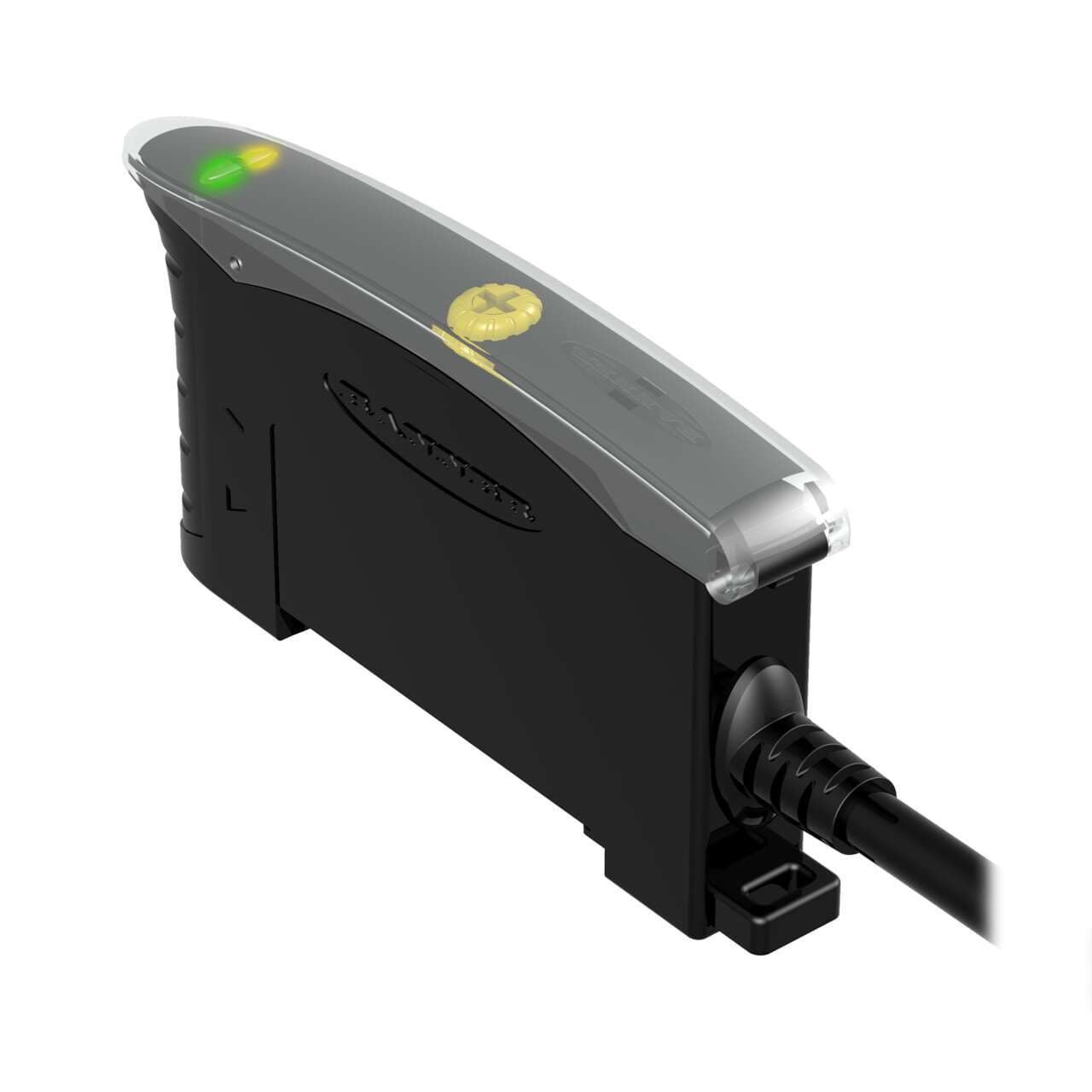

D10 AFPG 2 m CABLE 4 WIRE GREEN
About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the D10AFPG Banner price in the box on the right side or send a quick quote.
Product Details
- Weight99.79024 g
- Country Of OriginCN
- Number of Pins 4
- Delay at Power-up (ms) 100
- Fiber Type Plastic and Glass
- Crosstalk Avoidance Yes
- Feature: Hazardous Area No
- Color LED - Amplifiers Green
- Min Op. Temperature (°C) -20
- Adjustments Potentiometer
- Housing Style DIN Rail
- Output Type (Specific) Single Discrete
- Special Feature: Remote Teach No
- Housing Material Thermoplastic
- Output Bipolar (NPN & PNP)
- Intrinsically Safe No
- Special Feature: Bussable Power No
- Cable Length (m) 2
- Repeatability (µs) 95
- Power Supply/Supply Voltage 10-30 V dc
- Feature: Timing (Hold/Delay) Yes
- Connection Cable
- Power DC
- Max Op. Relative Humidity (%) 90% @ 55°C
- Feature: Audible No
- Input/Output Discrete
- Max Op. Temperature (°C) 55
- Minimum response time (ms) .5
- Quick Disconnect Type No QD
- NEMA Rating NEMA 1
- IO Link No
- Primary Housing Material Thermoplastic
- IP Rating IP50
- Indicator Display Type Indicator LEDs
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
D10AFPG Description
Banner Engineering D10AFPG is an amplifier designed for sensor applications, featuring a DIN rail mount for easy installation. It has a net width of 11 mm and is constructed with a thermoplastic housing and a polycarbonate (PC) cover. This part operates within an ambient air temperature range of -20 to +55 °C and offers a degree of protection rated at IP50 NEMA 1. It emits a visible green light and has a response time of 500ms / 0.5 s. The D10AFPG includes 1 x digital output (NPN/PNP transistor) and is shaped rectangularly. It is part of the D10 series and is designed with potentiometer adjustment for high-performance fiber optic sensor amplification. The connection is facilitated by a pre-wired 6.5ft / 2m cable terminated with bare end flying leads, and it requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). The net depth and height are 36 mm and 69 mm, respectively.
Related documents D10AFPG Specs
