DELS-118E Banner Cordsets
Part#:DELS-118E
Manufacturer:Banner
Alt. Part#:86946
Product Lifecycle:Active
Get a quick Quote!

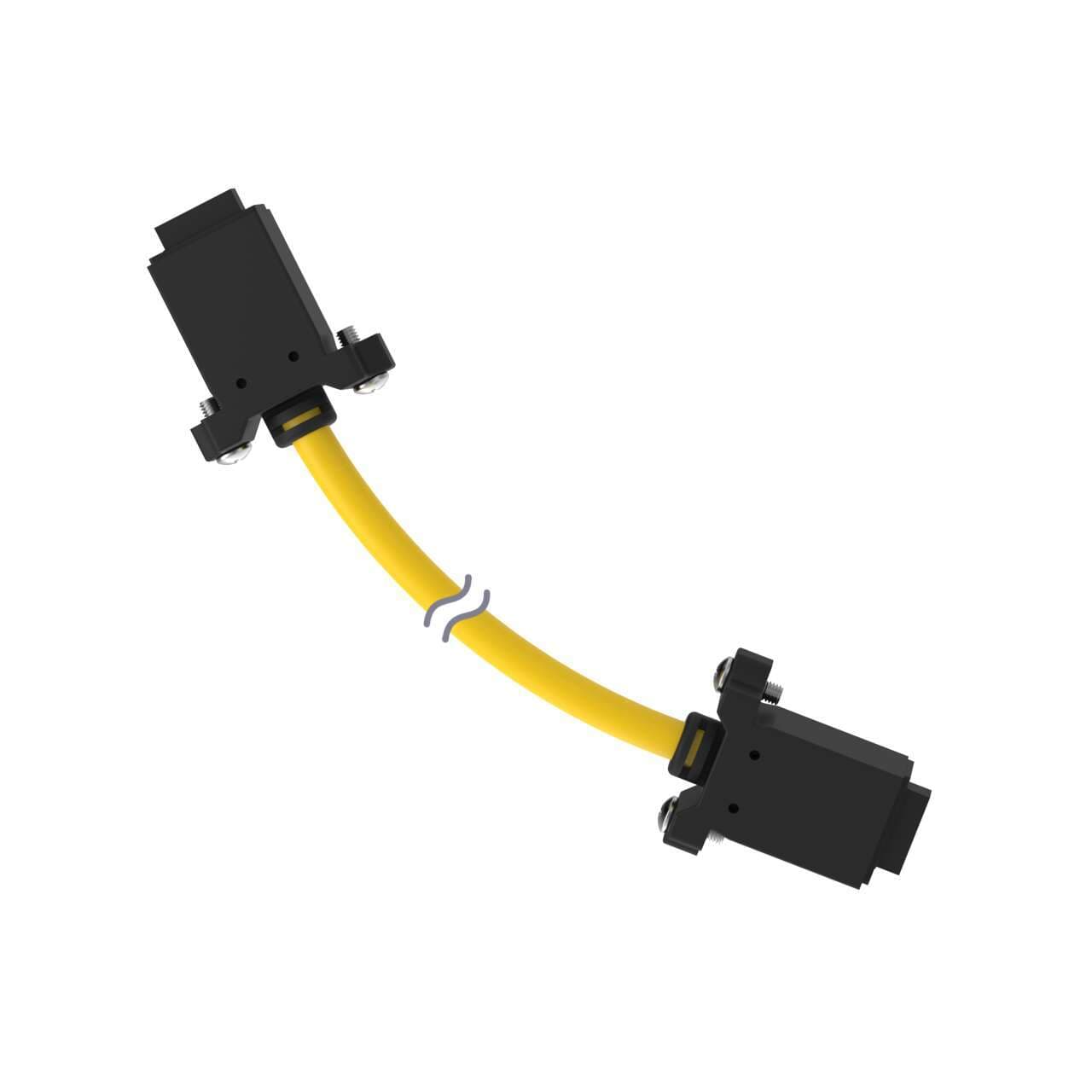

Cordset: Double Ended LS-Custom; 12-pin Straight Female; 12-pin Straight Female; 2.5 m 11x24 Yellow PVC Jacket; PVC Black; Custom Coupling Nuts
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DELS-118E Banner price in the box on the right side or send a quick quote.
Product Details
- Weight167.82904 g
- Country Of OriginTW
- Connector Body Material/Color PVC Black
- Voltage Rating (V) 60 V ac/75 V dc
- Outside Cable Diameter (mm) 6
- Number of Contacts 12
- Primary Gender Female
- Trunk Length (m) No Trunk
- Primary Coupling Method EZS-LS
- Secondary AWG 24
- Shield/No Shield No Shield
- Primary Connector Type LS-Custom
- Secondary Connector Type LS-Custom
- Coupling Material/Color Custom
- Primary AWG 24
- Oil/Grease Resistant No
- Number of Connectors 2
- Cable Jacket Material PVC
- Primary Orientation Straight
- Cordset Length (m) 2.5
- IP Rating IP67
- Secondary Orientation Straight
- Current Rating (A) 2.0
- Secondary Gender Female
- Maximum Temp. (°C) 55
- Primary Number of Conductors 11
- Feature: Hazardous Area No
- Cable Jacket Color Yellow
- Minimum Temp. (°C) -20
- Secondary Coupling Method EZS-LS
- Secondary Number of Conductors 11
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DELS-118E Description
Banner Engineering DELS-118E is a pre-assembled, double-ended cable or cordset designed for automation applications. It features PVC cable material with yellow sheathing and has a diameter of 6mm. The cable is 8.2 feet (2.5 meters) in length and is equipped with 2 x 11-pin LS female connectors at both ends. It operates within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP67, making it suitable for environments requiring dust and water ingress protection. The DELS-118E is rated for a voltage of 60Vac and 75Vdc.
