IVU2PRBB12 Banner Barcode Readers
Part#:IVU2PRBB12
Manufacturer:Banner
Alt. Part#:90944
Product Lifecycle:Active
Get a quick Quote!

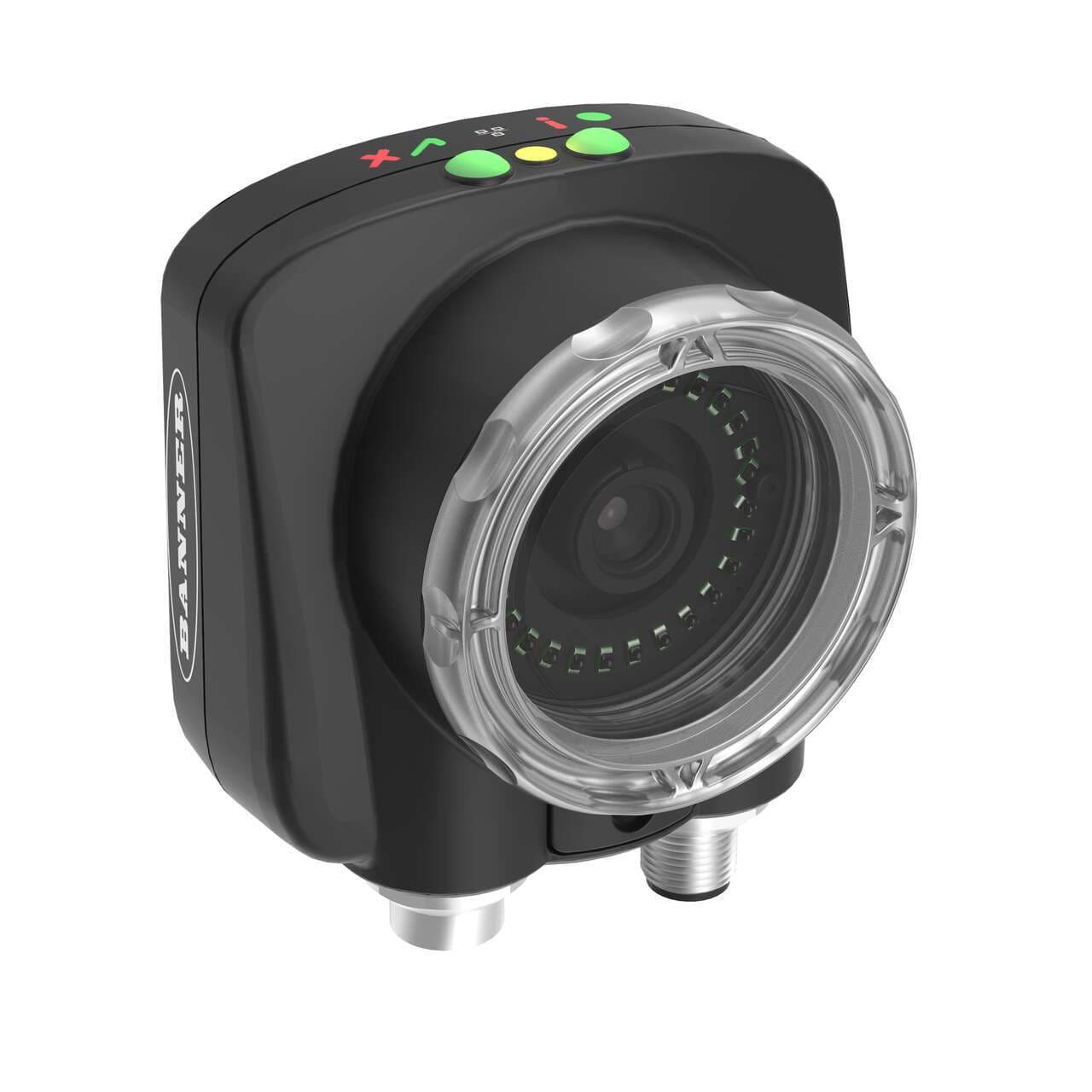

iVu PLUS BCR Gen2 Remote Sensor with Ethernet; Blue Ring Light and 12 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional
About the manufacturer: Banner is one of the manufacturers that offers Barcode Readers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the IVU2PRBB12 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight675.85208 g
- Country Of OriginCN
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Color Black housing
- Ambient air temperature for operation 0...+40 °C
- Net Depth (mm) 52 mm
- Main function Sensor (Vision)
- Design remote touchscreen 12mm optical lns. blue LED ring light illumination grayscale sensor
- Connection type Pre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)
- Degree of protection IP67
- Order code / Manufacturer SKU 90944
- Net Width (mm) 81 mm
- Sub-range name iVu Plus TG and Color Gen2 Image Sensors
- Image sensor characteristics 752x480pixels 1/3" CMOS sensing; Monochrome
- Mounting mode C-mount
- Compliant with standard(s) cULus CE
- Net Height (mm) 79 mm
- Functions 1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC
- Communication protocol Ethernet/IP Modbus TCP PROFINET RS-232
- Material thermoplastic housing Acrylic window
- Primary brand Banner Engineering
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Type of lens 12mm
- Feature: Touchscreen Interface Yes
- Feature: PC Interface Yes
- Camera Housing Size (HxWxL mm) 79 x 81 x 52
- IP Rating IP67
- PCCC Yes
- Imager Type Grayscale
- FTP No
- Primary Housing Material Thermoplastic
- Image Resolution 752 x 480 pixels
- Modbus/TCP Yes
- PROFINET Yes
- Code Type 1D, 2D
- Touchscreen Display Remote
- RS-422 No
- Light Color Blue
- Common Ethernet Protocol No
- USB No
- EtherNet/IP Yes
- Lens (mm) 12
- Device Type Imager BCR
- Feature: Washdown Rated Yes
- RS-232 Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
IVU2PRBB12 Description
Banner Engineering IVU2PRBB12 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It is designed with a remote touchscreen, a 12mm optical lens, and a blue LED ring light for illumination. This model can store up to 30 inspections and supports PCCC. The scanner has a visible blue light and comes in a black thermoplastic housing with an acrylic window. It is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet connections, and an 8-pin Euro-style M12 female connector for the remote display. The IVU2PRBB12 supports multiple communication protocols, including Ethernet/IP, Modbus TCP, PROFINET, and RS-232. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The device offers a C-mount mounting mode, has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. It operates within an ambient air temperature range of 0 to +40°C and is rated with a degree of protection of IP67. Additionally, it features 1 x digital output (PNP/NPN transistor) and utilizes a 12mm type of lens.
