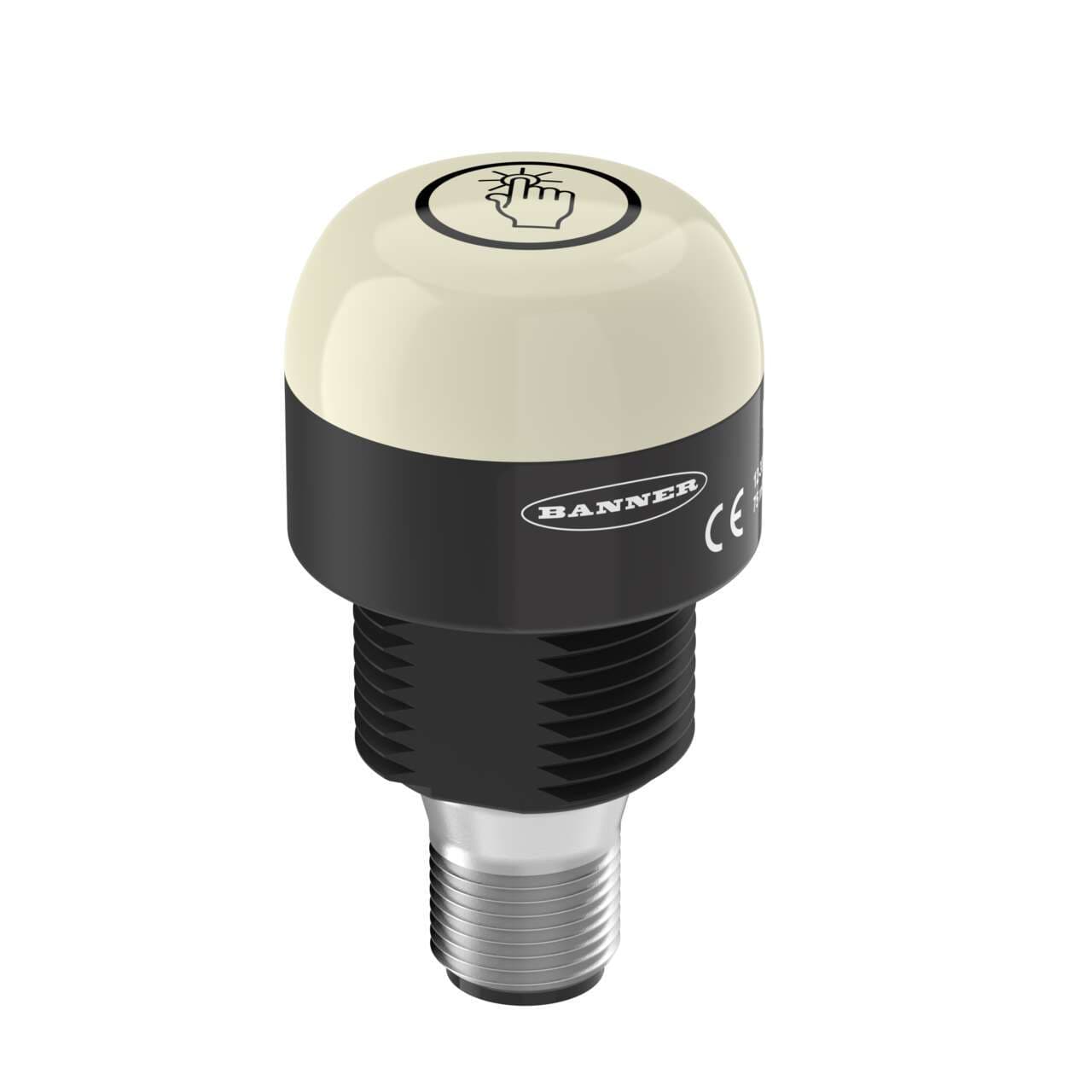

K30RBTGXHQ Banner Pick-to-Light Sensors
Part#:K30RBTGXHQ
Manufacturer:Banner
Alt. Part#:85174
Product Lifecycle:Active
Get a quick Quote!
K30 Series: 1-Color Touch Sensor; Momentary Output; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Output: Bipolar (NC); Colors: Green - Not Activated, Green - Activated; M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K30RBTGXHQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight31.75144 g
- Country Of OriginMX
- Actuation Yes
- Max Current Color (mA) 55
- Input Type Bimodal (PNP/NPN)
- Button Operation Momentary
- Pro-Editor Compatible (Discrete) No
- Power Source DC
- Product Size (mm) 30
- Operation Normally Closed
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Audible No
- Primary Housing Material Polycarbonate
- Quick Disconnect Type M12 (Euro)
- Environmental Rating IP67; IP69
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 54.5
- Feature: Washdown Rated Yes
- Cable Length (m) 2
- Number of Colors / Segments 1
- Number of Input Pins/Conductors 5
- NEMA Type and UL Type Rating NEMA 4X, 13
- Feature: Quick Disconnect Yes
- Power DC
- Connection Integral QD
- Max Output Response Time (ms) 150
- Max Op. Temperature (°C) 50
- IO Link No
- Mounting Thread M22 x 1.5
- Animation Option 1 Solid On
- Output Type Bipolar (NPN & PNP)
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- Activation Function Capacitive Touch
- Color Technology Standard LED
- Max Input Response Time (ms) 300
- Primary Housing Color Black
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Housing Style Base Mount - Dome Window
- Color Option 1 Green
- Supply Voltage 12-30 V dc
- Storage Temp (°C) -40 to 70
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K30RBTGXHQ Description
Banner Engineering K30RBTGXHQ is an illuminated capacitive touch-sensitive button designed with a 1-color G (Not activated) / No color (Activated) LED illumination housed in a black polycarbonate base and dome window. This part features a pre-equipped 5-pin M12 Euro-style QD connector for connectivity and operates within a supply voltage range of 12Vdc-30Vdc, with 24Vdc nominal. It offers versatile mounting options including surface or base pole with an M22 thread and has a 30mm / 1-3/16" dome diameter. The K30RBTGXHQ is built to function in ambient air temperatures ranging from -40°C to +50°C and is protected to IP67, IP69K, NEMA 4X, and NEMA 13 standards. It operates in a momentary NC (Normally Closed) touch output mode, consumes 55mA of current, and includes 1 x digital input (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.
