K50LGRAL1BNQ Banner Electronic Components
Part#:K50LGRAL1BNQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

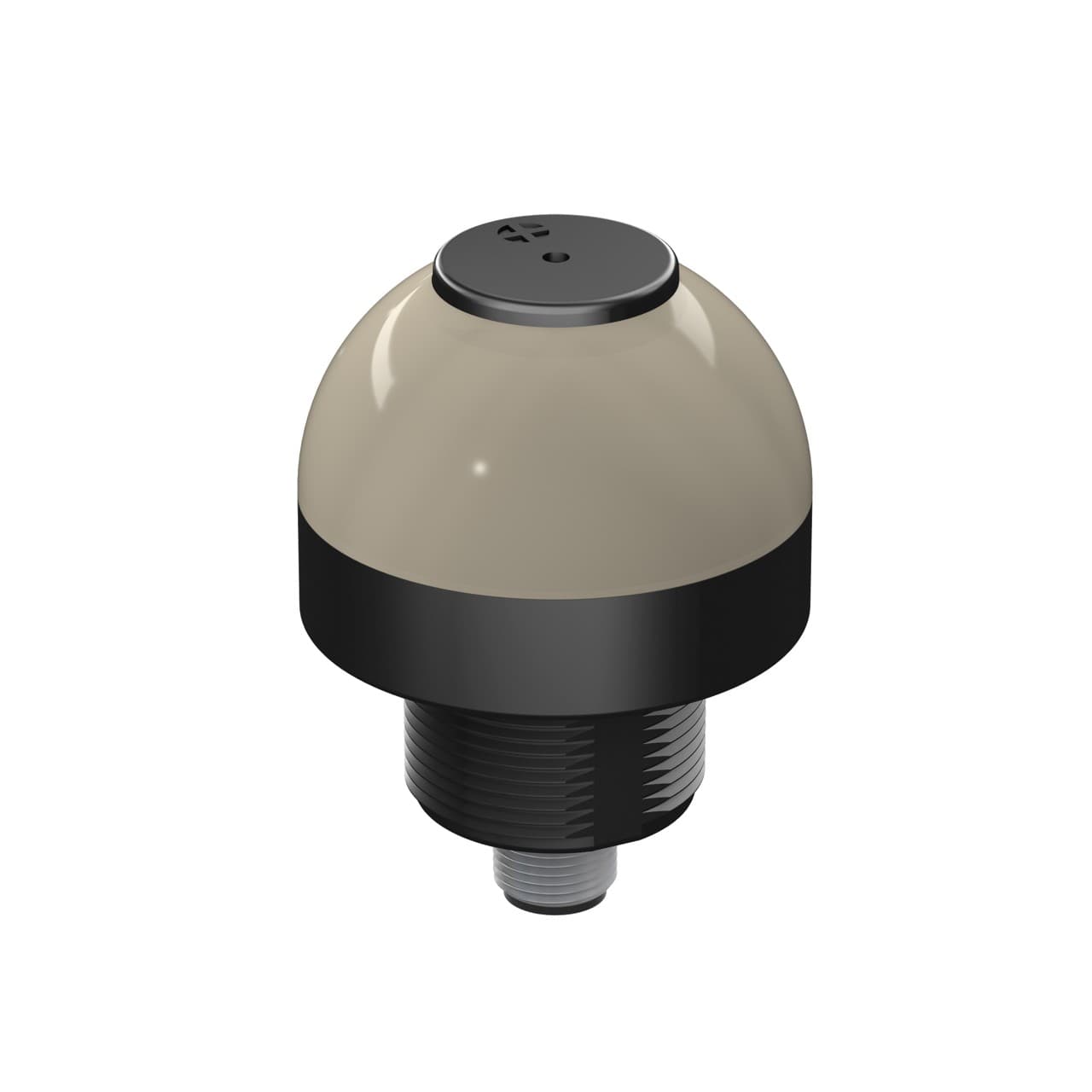

Banner Engineering K50LGRAL1BNQ is a pilot light from the EZ-LIGHT series designed to serve as an audible LED pilot light indicator. It features a continuous loud sound and 3-color G/R/B color pattern LED illumination, housed in a black polycarbonate base with a dome-shaped diffused window, also made of polycarbonate. This part is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads, supporting a supply voltage range of 18Vdc to 30Vdc (24Vdc nominal). It offers versatile mounting options including surface, base, or pole flush with a 30mm hole and M30 thread. The dome has a diameter of 50mm / 2 inches. It operates within an ambient air temperature range of -20°C to +50°C and boasts a degree of protection rated at IP50, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The current consumption is 40mA, and it includes 3 x digital inputs for color control and 1 x digital input for alarm, all supporting 18-30Vdc; NPN.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50LGRAL1BNQ Banner price in the box on the right side or send a quick quote.
Product Details
- Housing Style Base Mount - Dome Window
- Color Option 1 Green
- Audible Alarm Type Continuous
- Environmental Rating IP50
- Multi-Color Device Single Color On
- Power Source DC
- Color Technology Standard LED
- Number of Input Pins/Conductors 5
- Min Op. Temperature (°C) -20
- Number of Colors / Segments 3
- Connection Integral QD
- Min Audible Intensity (db at 1m) 95
- Primary Housing Color Black
- Color Option 2 Red
- Max Input Response Time (ms) 10
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Polycarbonate
- Product Size (mm) 50
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 68.0
- Supply Voltage 18-30 V dc
- Feature: Chemical Resistant No
- Mounting Thread M30 x 1.5
- Animation Option 1 Solid On
- Audible Operating Frequency (kHz) 2.7
- Feature: Hazardous Area No
- IO Link No
- Indication Yes
- Color Option 3 Blue
- Max Current - Audible Alarm (mA) 40
- Secondary Material Polycarbonate
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Current Color (mA) 40
- Max Audible Intensity (db at 1m) 95
- Max Op. Temperature (°C) 50
- Power DC
- Quick Disconnect Type M12 (Euro)
- Input Type NPN
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Feature: Quick Disconnect Yes
- Wireless No
- Modbus RTU No
- Feature: Audible Yes
