K50LGRASYPQ Banner Pick-to-Light Sensors
Part#:K50LGRASYPQ
Manufacturer:Banner
Alt. Part#:19124
Product Lifecycle:Active
In-stock parts: 6
Nov 6, 2025

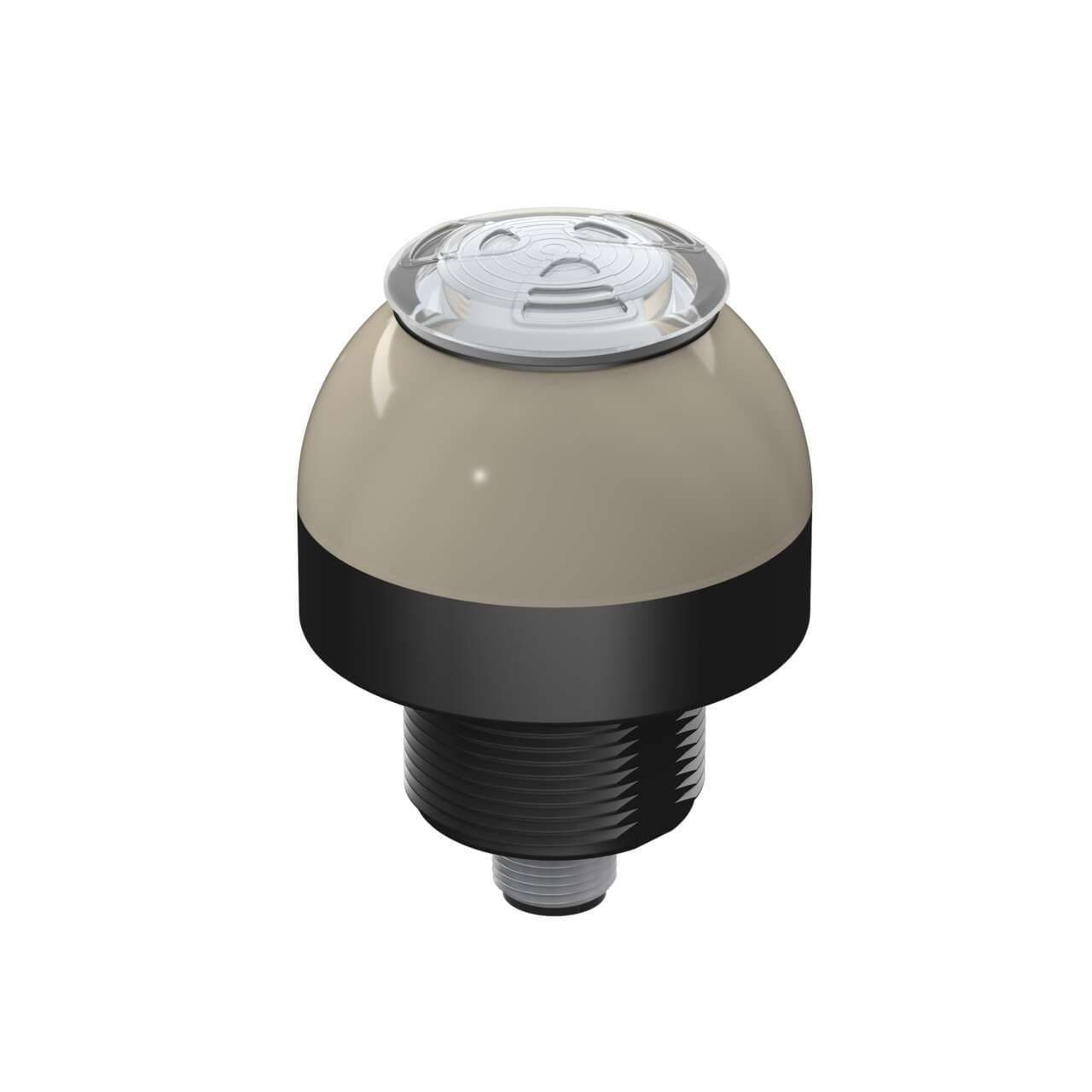

K50 Series EZ-LIGHT: 3-Color Sealed Audible Indicator; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Tone: Loud; Input: PNP; Colors: Green Red Yellow; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50LGRASYPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight158.7572 g
- Country Of OriginMX
- Indication Yes
- Connection Integral QD
- Input Type PNP
- Max Op. Temperature (°C) 50
- Pro-Editor Compatible (Discrete) No
- Power Source DC
- Color Option 1 Green
- Environmental Rating IP67; IP69
- Secondary Material Polycarbonate
- Wireless No
- Power DC
- Quick Disconnect Type M12 (Euro)
- Max Input Response Time (ms) 1
- Primary Housing Color Black
- Multi-Color Device Single Color On
- Min Audible Intensity (db at 1m) 65
- Feature: Washdown Rated Yes
- Cable Length (m) 0.15
- Number of Input Pins/Conductors 5
- Color Option 3 Yellow
- Audible Alarm Type Continuous
- Feature: Hazardous Area No
- Mounting Thread M30 x 1.5
- Product Size (mm) 50
- Max Audible Intensity (db at 1m) 65
- Min Op. Temperature (°C) -20
- Feature: Quick Disconnect Yes
- Primary Housing Material Polycarbonate
- Max Current Color (mA) 35
- Supply Voltage 12-30 V dc
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Modbus RTU No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 2 Red
- Max Current - Audible Alarm (mA) 35
- Feature: Chemical Resistant No
- Number of Colors / Segments 3
- Animation Option 1 Solid On
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 73.0
- Feature: Audible Yes
- Housing Style Base Mount - Dome Window
- Color Technology Standard LED
- Audible Operating Frequency (kHz) 2.9
- Primary Window Material Polycarbonate Diffused
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50LGRASYPQ Description
Banner Engineering K50LGRASYPQ is a sealed audible LED pilot light indicator from the EZ-LIGHT series, featuring a fixed tone with 3-color G/R/Y color pattern LED illumination. It has a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 6" / 15cm pigtail that terminates with a 5-pin M12 Euro-style QD connector. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The K50LGRASYPQ offers versatile mounting options including surface, base, or pole flush with a 30mm hole and M30 thread. The dome diameter is 50mm / 2", and it can operate in ambient air temperatures ranging from -20°C to +50°C. It is designed with a high degree of protection, rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, ensuring durability in various environments. The current consumption is 35mA. For control, it includes 3 x digital inputs for color control and 1 x digital input for alarm input, all supporting 12-30Vdc PNP.
Related documents K50LGRASYPQ Specs
