LEDRLA290XP6-PHQ Banner Vision Accessories
Part#:LEDRLA290XP6-PHQ
Manufacturer:Banner
Alt. Part#:81791
Product Lifecycle:Active
Get a quick Quote!
LINEAR ARRAY RED ACRYLIC 1 FT DIMMABLE ACT.HIGH
About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the LEDRLA290XP6-PHQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight816.4656 g
- Country Of OriginMX
- Housing Style Linear Strip
- Color Technology Standard LED
- Power DC
- Number of Input Pins/Conductors 5
- Window Material Acrylic
- Max Op. Temperature (°C) 50
- Connection Type Integral QD
- Feature: Quick Disconnect Yes
- Device Type Bar Light
- Max Current Color (mA) 1000
- Primary Housing Material Anodized Aluminum
- Lens Focusing Angle (°)/Field of View 6.5
- Intensity Adjustment Potentiometer and Analog
- QD Type/Cable Length M12 (Euro) requires mating cordset
- Color Red
- Supply Voltage 24 V DC
- Physical Dimensions (LxWxH or DxH mm) 332.6 x 59.4 x 32.6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
LEDRLA290XP6-PHQ Description

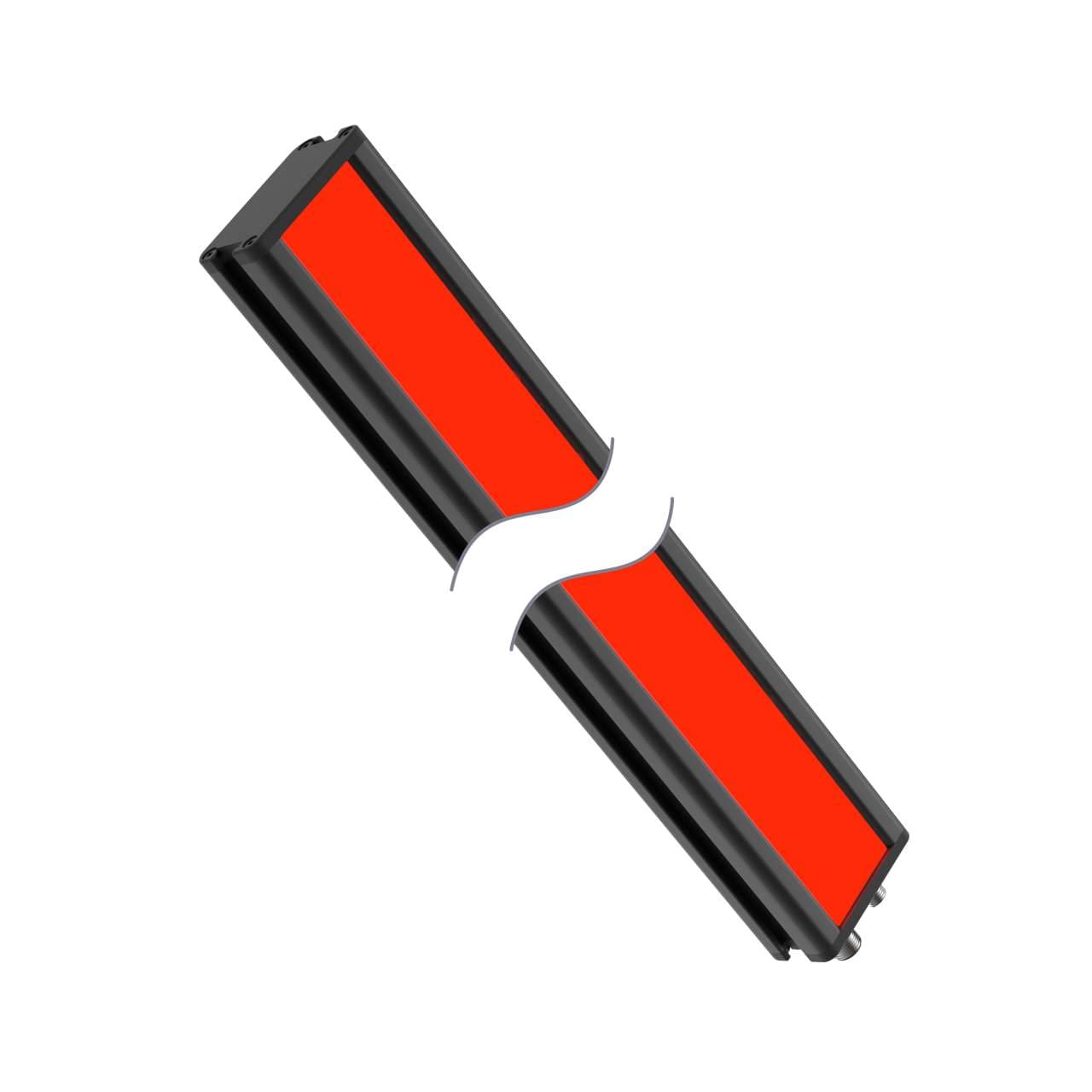

Banner Engineering LEDRLA290XP6-PHQ is an illumination unit designed for linear array illumination backlight applications. It features intensity adjustment capabilities, allowing for dimming via a potentiometer or analog input, and delivers high-intensity visible red light. The unit measures 290mm in array length and is housed in black anodized aluminum with a clear acrylic window, shaped in a rectangular form. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDRLA290XP6-PHQ operates on a 24Vdc supply voltage and offers a degree of protection rated at IP50. It includes 1 x digital input (24Vdc; high-polarity) for strobe control and 1 x analog input (0-10Vdc) for intensity control.
