QS18VP6RQ5 Banner Proximity Sensors
Part#:QS18VP6RQ5
Manufacturer:Banner
Alt. Part#:64584
Product Lifecycle:Active
Get a quick Quote!

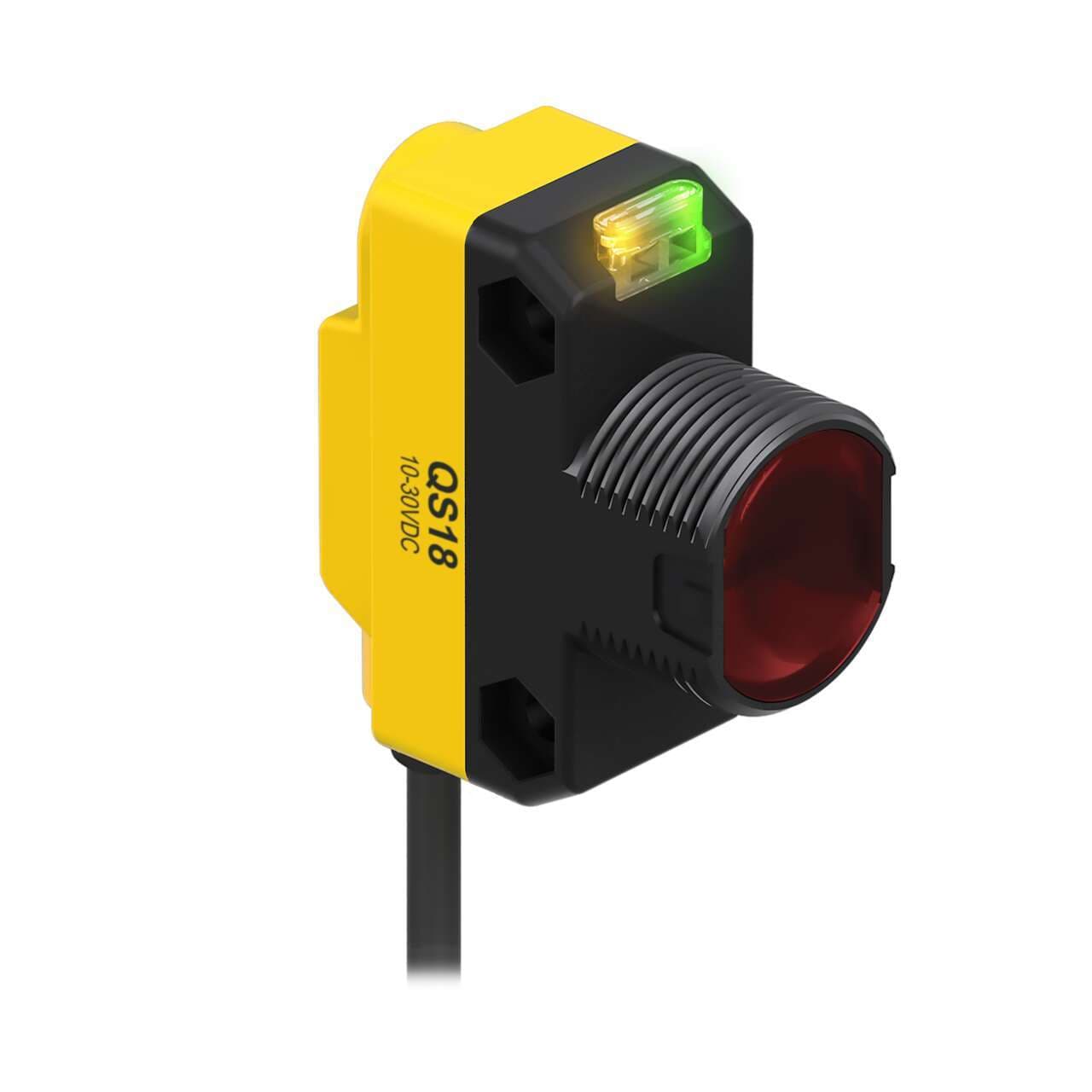

WORLD-BEAM QS18 Series: Receiver; Range: 20 m; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) M12 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS18VP6RQ5 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight63.50288 g
- Country Of OriginMX
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Thread size M18
- Product series / family name WORLD-BEAM series
- Shape Rectangular
- Mounting mode Threaded mount
- Material thermoplastic housing Acrylic lns.
- Main function Sensor (Photo-electric)
- Sensing distance 20m
- Operating mode Light-ON Dark-ON
- Sub-range name QS18 series
- Functions Photo-electric sensor receiver green LED (power ON) yellow LED (light sensed)
- Degree of protection IP67 NEMA 6
- Compliant with standard(s) cURus CE
- Primary brand Banner Engineering
- Design through-beam system / opposed mode
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Order code / Manufacturer SKU 64584
- Digital outputs 1 x digital output (PNP transistor)
- Ambient air temperature for operation -20...+70 °C
- Power DC
- Operation Light/Dark Operate
- NEMA Rating NEMA 6
- Feature: Audible No
- Primary Housing Material ABS
- Quick Disconnect Type M12 (Euro)
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Chemical Resistant No
- Outputs PNP
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Hazardous Area No
- Output response time (ms) 0.75 ON/0.375 OFF
- Repeatability (µs) 100
- Feature: Timing (Hold/Delay) No
- Input/Output Discrete
- Sensing Mode (General) Opposed
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Indicator LEDs
- IO Link No
- Sensing Beam Visible Red or IR
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Adjustments N/A
- Feature: Quick Disconnect Yes
- Housing Style Rectangular w/M18 Mount
- Connection Pigtail QD
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver Receiver
- Sensing Mode (Detailed) Receiver
- Min Op. Temp. (°C) -20
- Number of Pins 4
- Feature: Encapsulated No
- Max Sensing Distance (mm) 20000
- Barrel Diameter (mm) 18
- Delay at Power-up (ms) 100
- DeviceNet No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QS18VP6RQ5 Description
Banner Engineering QS18VP6RQ5 is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component within the QS18 series. This sensor features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. It is equipped with a pre-wired 6-inch (150mm) pigtail that terminates with a 4-pin M12 connector, facilitating straightforward connectivity. The QS18VP6RQ5 is housed in a rectangular, thermoplastic body with an acrylic lens, ensuring durability and clear signal transmission. It offers a sensing distance of up to 20 meters and supports both Light-ON and Dark-ON operating modes. The sensor provides a single digital output (PNP transistor; complementary NO/NC) and is powered by a supply voltage ranging from 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. This model is designed to withstand harsh environments, boasting an IP67 and NEMA 6 degree of protection against dust and water ingress.
Related documents QS18VP6RQ5 Specs
