QS30LLPCQ Banner Proximity Sensors

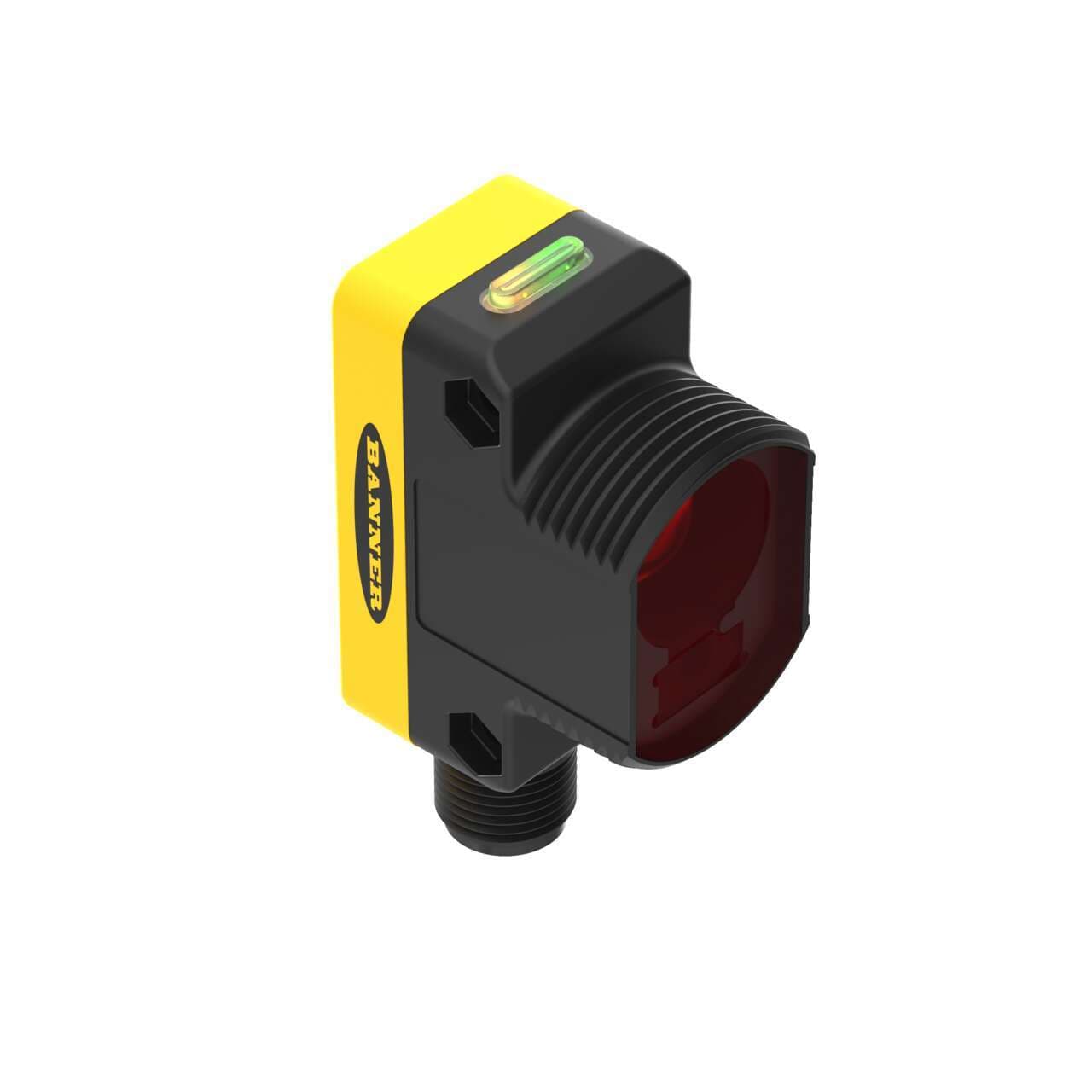

Banner QS30LLPCQ WORLD-BEAM QS30: Low Contrast Laser Polar Retro; Range: 0.2-18 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1PNP; 5-pin M12 Integral QD
Banner

Part#:QS30LLPCQ

Manufacturer:Banner

Alt. Part#:71378

Product Lifecycle:Active

Get a quick Quote!

WORLD-BEAM QS30: Low Contrast Laser Polar Retro; Range: 0.2-18 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1PNP; 5-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QS30LLPCQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight99.79024 g
  • Country Of OriginUS
  • Sensing Beam
    Visible Red Laser
  • Small Visible Spot
    Laser
  • Sensing Mode (General)
    Retroreflective
  • Sensing Mode (Detailed)
    Polarized
  • Laser Classification
    Class 1
  • Power
    DC
  • Housing Style
    Rectangular w/M30 Mount
  • Quick Disconnect Type
    M12 (Euro)
  • Power Supply/Supply Voltage
    10-30 V dc
  • Sensing Beam Wavelength
    650
  • Output response time (ms)
    0.5
  • Repeatability (µs)
    70
  • Delay at Power-up (ms)
    1000
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Indicator
    Bargraph
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Chemical Resistant
    No
  • Primary Housing Material
    Thermoplastic
  • Connection
    Integral QD
  • Number of Pins
    5
  • Opposed Mode Emitter/Receiver
    N/A
  • Input/Output
    Discrete
  • Special Feature: Intrinsically Safe
    No
  • Special Feature: Remote Teach
    Yes
  • Feature: Audible
    No
  • Max Sensing Distance (mm)
    18000
  • Operation
    Light/Dark Operate
  • Adjustments
    Teach Button
  • DeviceNet
    No
  • Outputs
    Bipolar (NPN & PNP)
  • Special Feature: Water Detection
    No
  • Barrel Diameter (mm)
    30
  • Feature: Hazardous Area
    No
  • Min Op. Temp. (°C)
    -10
  • IP Rating
    IP67
  • Lens Material
    Acrylic
  • IO Link
    No
  • Max Op. Temp. (°C)
    50
  • NEMA Rating
    NEMA 6
  • Feature: Encapsulated
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

QS30LLPCQ Description

Banner Engineering QS30LLPCQ is a polarized Class 1 laser photo-electric sensor designed for retro-reflective mode with TEACH mode functionality. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50 °C. This sensor is equipped with a 5-pin Euro-style M12 connector for straightforward connection. Part of the QS30LLPC series, it offers a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. The QS30LLPCQ operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens. With a sensing distance of up to 18 meters and a visible red light color at a wavelength of 650 nm, this sensor supports both Light-ON and Dark-ON operating modes. It provides a rapid response time of 0.5ms / 0.0005 s and includes 1 x digital output (PNP/NPN transistor) for versatile application use.

Related documents QS30LLPCQ Specs

QS30LLPCQ 112355.pdf
