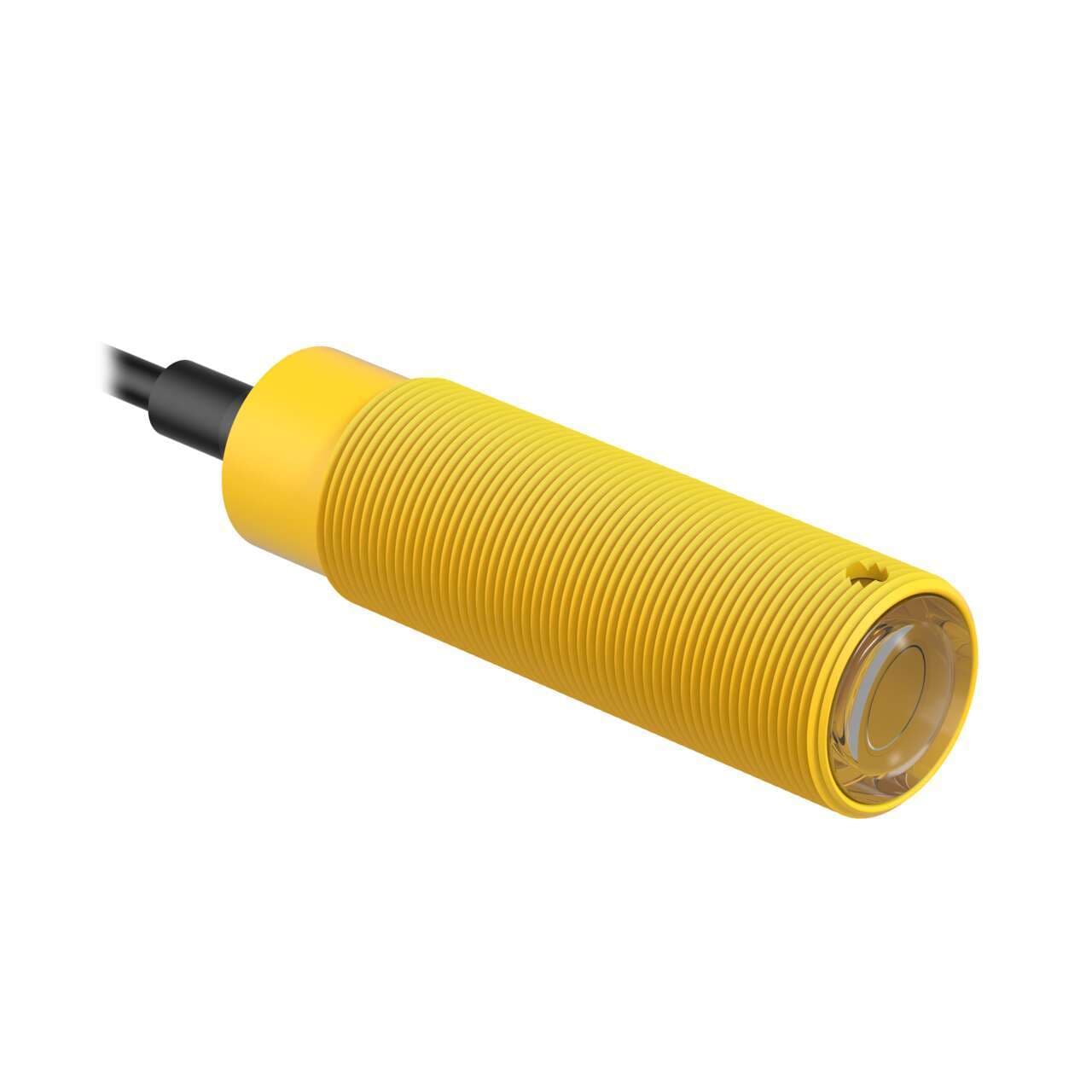

SM2A30PRLNC W/30 Banner Proximity Sensors

Banner SM2A30PRLNC W/30 SM30 Series: Receiver - Frequency A PBT Polyester; Range: 150 m; Input: 24-240 V ac; Output: SPST Solid-State - Dark Operate; 9 m (30 ft) Cable
Banner

Part#:SM2A30PRLNC W/30

Manufacturer:Banner

Alt. Part#:27797

Product Lifecycle:Active

Get a quick Quote!

SM30 Series: Receiver - Frequency A PBT Polyester; Range: 150 m; Input: 24-240 V ac; Output: SPST Solid-State - Dark Operate; 9 m (30 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SM2A30PRLNC W/30 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight637.29676 g
  • Country Of OriginUS
  • Sensing Mode (General)
    Opposed
  • Connection
    Cable
  • NEMA Rating
    NEMA 6P
  • Barrel Diameter (mm)
    30
  • Housing Style
    Barrel
  • Outputs
    Solid-State AC Switch
  • Repeatability (µs)
    1000
  • Feature: Encapsulated
    No
  • Cable Length (m)
    9
  • Max Op. Temp. (°C)
    70
  • Special Feature: Water Detection
    No
  • Opposed Mode Emitter/Receiver
    Receiver
  • Feature: Chemical Resistant
    No
  • Sensing Mode (Detailed)
    Receiver
  • Quick Disconnect Type
    No QD
  • Number of Pins
    3
  • Feature: Hazardous Area
    No
  • Input/Output
    Solid-State AC Switch
  • Min Op. Temp. (°C)
    -40
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Adjustments
    N/A
  • DeviceNet
    No
  • Sensing Beam
    Infrared LED
  • Operation
    Dark Operate
  • Special Feature: Intrinsically Safe
    No
  • Lens Material
    Acrylic
  • IO Link
    No
  • Power
    AC
  • Power Supply/Supply Voltage
    24-240 V ac
  • Special Feature: Remote Teach
    No
  • Indicator
    LEDs
  • Max Sensing Distance (mm)
    150000
  • Output response time (ms)
    10
  • IP Rating
    IP67
  • Feature: Timing (Hold/Delay)
    No
  • Primary Housing Material
    Thermoplastic
  • Delay at Power-up (ms)
    N/A
  • Feature: Audible
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

SM2A30PRLNC W/30 Description

Banner Engineering SM2A30PRLNC W/30 is a photo-electric sensor from the SM30 series, designed with a through-beam system and opposed mode "A" modulation frequency, suitable for washdown applications. This sensor, functioning as a receiver alone, is housed in a thermoplastic material and comes pre-wired with a 30ft / 9m cable terminated with bare end flying leads. It operates on a supply voltage range of 24Vac-240Vac (200Vac / 220Vac nom.) and can function within an ambient air temperature range of -40 to +70°C. The sensor is protected to a degree of IP67 NEMA 6P IP69K, ensuring its durability in various environmental conditions. It features a M30 cylindrical threaded/barrel shape, a single digital output (Solid-state AC output), and is capable of sensing distances up to 150m. The sensor utilizes infrared (IR) light with a wavelength of 880 nm and has a response time of 10ms / 0.01 s. It operates in a Dark-ON mode and is equipped with an M30 thread size.

Related documents SM2A30PRLNC W/30 Specs

SM2A30PRLNC W/30 03541.pdf
