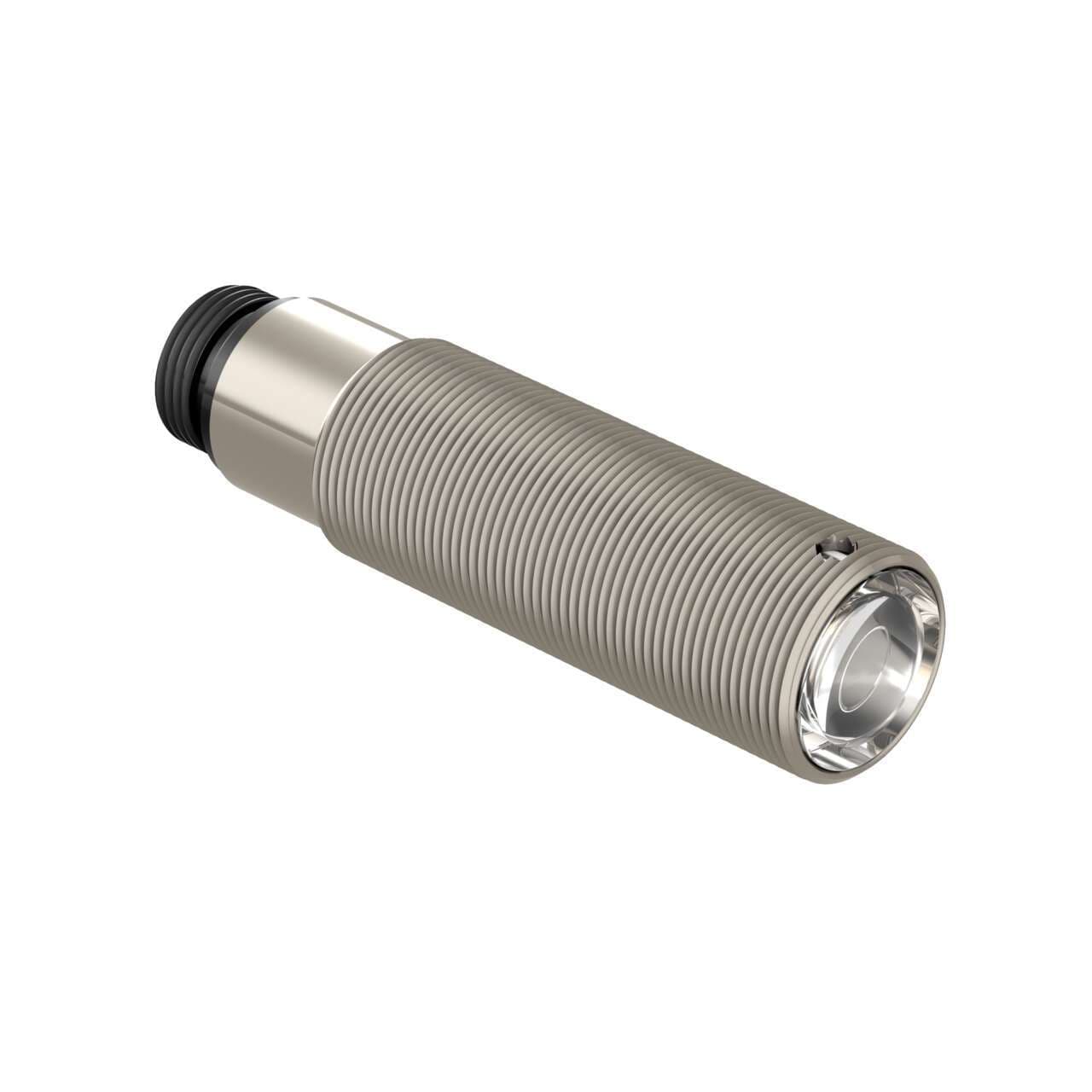

SMA30SELQDC Banner Proximity Sensors
Part#:SMA30SELQDC
Manufacturer:Banner
Alt. Part#:27562
Product Lifecycle:Active
Get a quick Quote!
SM30 Series: Emitter - Frequency C Stainless Stl; Range: 150 m; Input: 10-30 V dc /12-240 V ac; Output: Not Applicable; 3-pin Mini Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SMA30SELQDC Banner price in the box on the right side or send a quick quote.
Product Details
- Weight381.01728 g
- Country Of OriginMX
- Sensing Mode (General) Opposed
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Emitter
- Output response time (ms) N/A
- IP Rating IP67
- Feature: Encapsulated Yes
- Power AC/DC Universal
- Connection Integral QD
- Repeatability (µs) N/A
- Feature: Timing (Hold/Delay) No
- Housing Style Barrel
- Min Op. Temp. (°C) -40
- Adjustments N/A
- Feature: Chemical Resistant Yes
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
- Opposed Mode Emitter/Receiver Emitter
- Power Supply/Supply Voltage 10-30 V dc or 12-240 V ac
- Outputs N/A
- Sensing Beam Infrared LED
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- Primary Housing Material Stainless Steel
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Audible No
- Max Sensing Distance (mm) 150000
- Quick Disconnect Type 7/8 in. (Mini)
- Delay at Power-up (ms) N/A
- Indicator LEDs
- Operation N/A
- Number of Pins 3
- DeviceNet No
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SMA30SELQDC Description
Banner Engineering SMA30SELQDC is a photo-electric sensor from the SM30 series designed with a through-beam system and opposed mode "C" modulation frequency, suitable for washdown applications. This sensor features a stainless steel housing and is pre-equipped with a 3-pin 7/8" mini connector for connectivity. It operates on a supply voltage range of 12Vac-240Vac (200Vac / 220Vac nom.) for AC and 10Vdc-30Vdc (12Vdc / 24Vdc nom.) for DC. The SMA30SELQDC can function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67, NEMA 6P, and IP69K. Its M30 cylindrical threaded/barrel shape facilitates easy installation, and it has a sensing distance of up to 150m. The sensor utilizes infrared (IR) light with a wavelength of 880 nm and boasts a quick response time of 10ms / 0.01 s.
Related documents SMA30SELQDC Specs
