SP350GYRN Banner Electronic Components
Part#:SP350GYRN
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

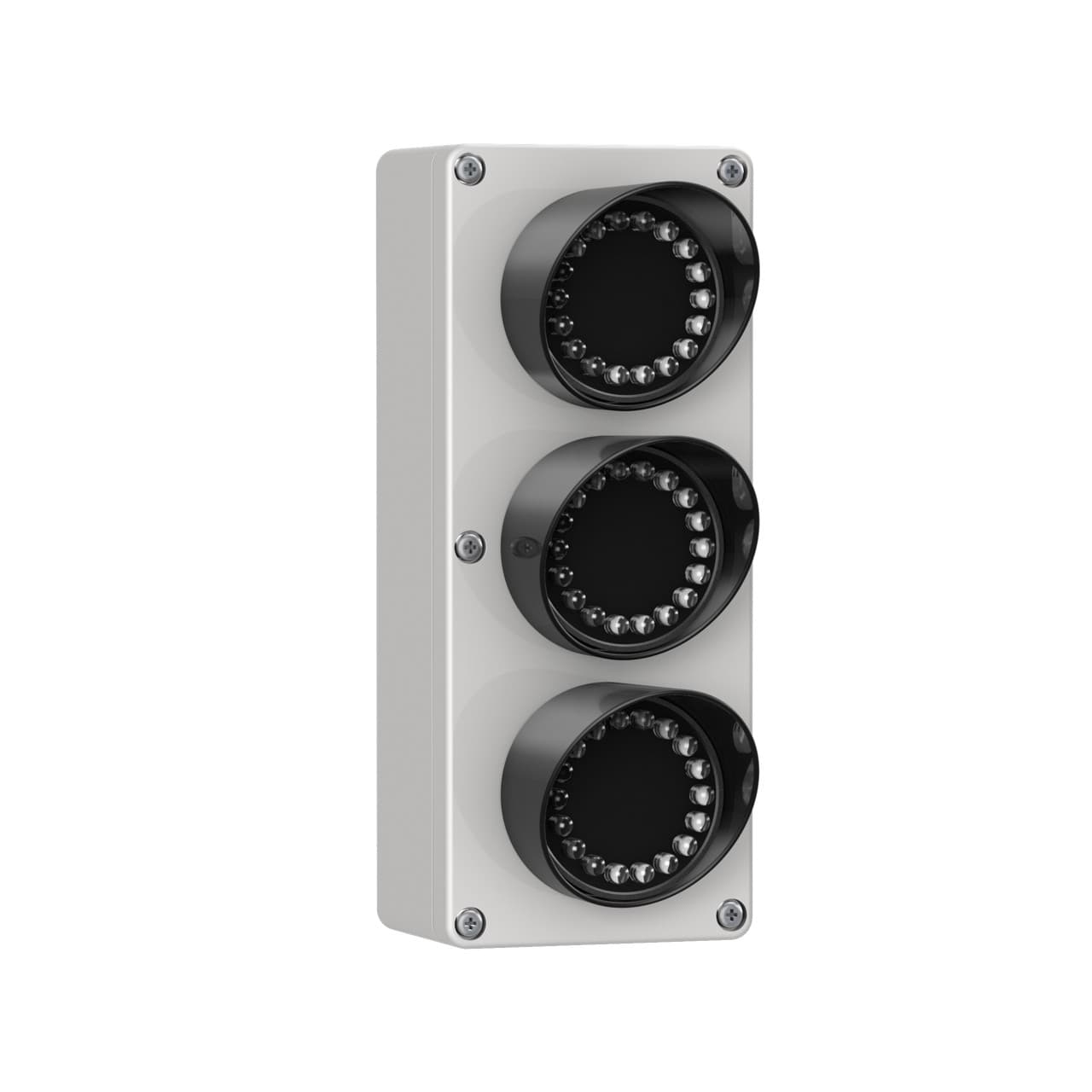

Banner Engineering SP350GYRN, part of the EZ-LIGHT series, is a traffic light designed with a 3-tiers 3-color G+Y+R color pattern LED illumination. This LED traffic signal light features a polycarbonate (PC) base and a gray housing. It offers a screw-clamp terminal connection for secure installation. The SP350GYRN operates on a supply voltage of 15Vdc-30Vdc, with a nominal voltage of 24Vdc, and can be mounted on surfaces or walls. It is designed to function within an ambient air temperature range of -40°C to +50°C. With an IP65 degree of protection, this traffic light is safeguarded against dust and low-pressure water jets from any direction. The shape of the part is specifically designed for traffic light applications, and it has a current consumption of 120mA. Additionally, it includes 3 x digital inputs (15-30Vdc; NPN) for color control.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SP350GYRN Banner price in the box on the right side or send a quick quote.
Product Details
- Number of Colors / Segments 3
- Color Option 2 Yellow
- Input Type NPN
- Indication Intensity High Brightness & Daylight Visible
- Color Option 1 Green
- Color 2 - Wavelength/Color Temp/Coordinates 590 nm
- Physical Dimensions (LxWxH or DxH mm) 195.0 x 80.0 x 105.2
- Primary Housing Material Polycarbonate
- Color 1 - Wavelength/Color Temp/Coordinates 528 nm
- Number of Input Pins/Conductors 4
- Feature: Audible No
- Product Size (mm) Other
- Power DC
- Color Option 3 Red
- Environmental Rating IP65
- IO Link No
- Color Technology Standard LED
- Housing Style Flat Mount - Signal Light
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Max Op. Temperature (°C) 50
- Mounting Thread No Thread
- Connection Terminal
- Max Current Color (mA) 120
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
- Power Source DC
- Animation Option 1 Solid On
- Lumens Color 3 20.0
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 2 14.0
- Max Input Response Time (ms) 10
- Multi-Color Device Simultaneous Colors On
- Indication Yes
- Lumens Color 1 57.0
- Supply Voltage 15-30 V dc
- Feature: Hazardous Area No
- Feature: Quick Disconnect No
- Application: Traffic Light Yes
- Wireless No
