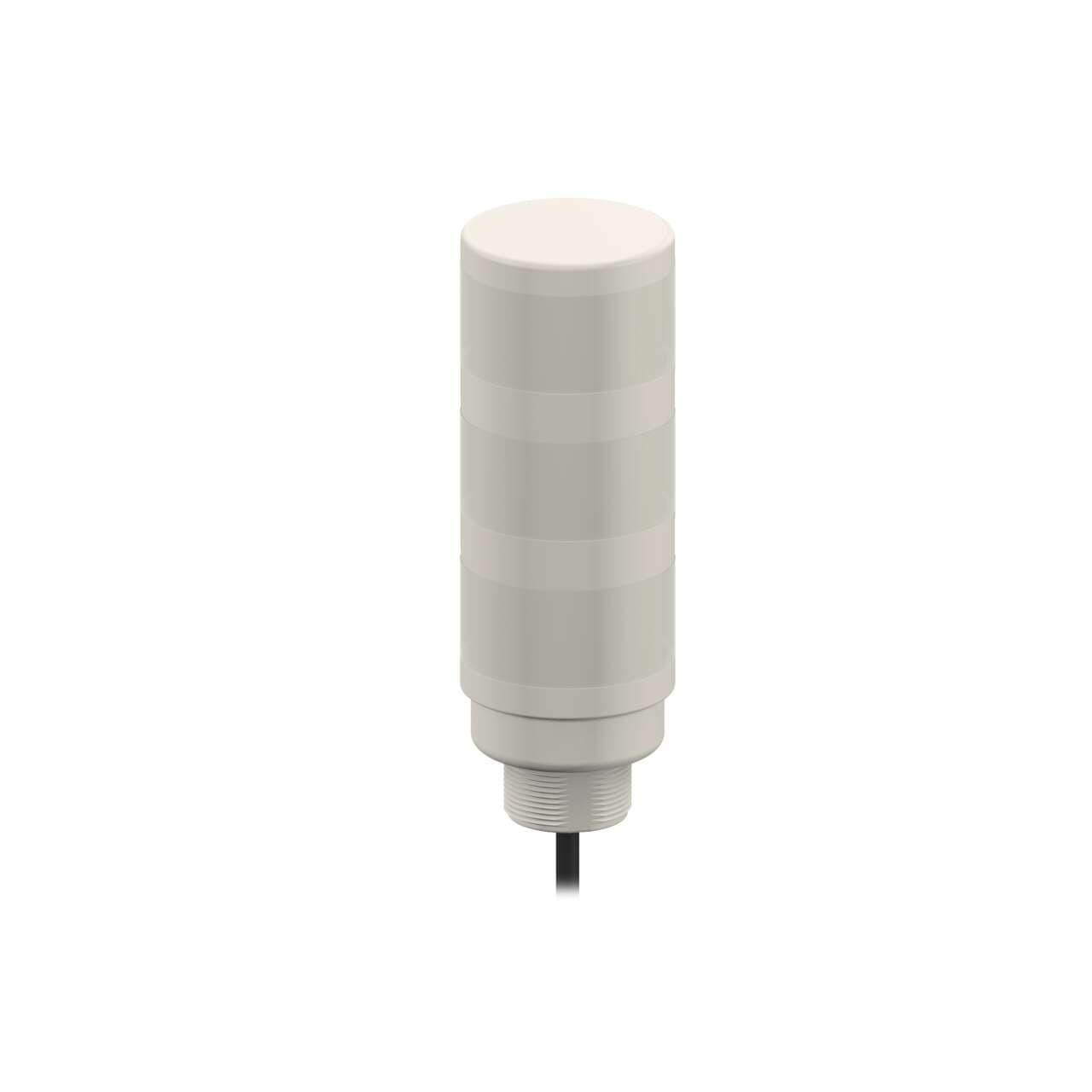

TL50P3CQP Banner Signal Towers
Part#:TL50P3CQP
Manufacturer:Banner
Alt. Part#:806723
Product Lifecycle:Active
Get a quick Quote!
TL50 Pro Tower Light, Standard Gray Housing: 3 Segment; Voltage: 10-30 V dc; Environ. Rating: IP67; Colors: Multicolor; 150 mm (6 in) 5-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL50P3CQP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight249.4756 g
- Country Of OriginMX
- PFM Input Yes
- Housing Style Base Mount - Tower
- Color 1 - Wavelength/Color Temp/Coordinates 522 nm
- Max Op. Temperature (°C) 50
- Power DC
- Lumens Color 1 17.5
- Supply Voltage 10-30 V dc
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect Yes
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Modbus RTU No
- Number of Colors / Segments 3
- Color Option 1 Green
- Color 2 - Wavelength/Color Temp/Coordinates 576 nm
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 161.5
- Mounting Thread M30 x 1.5
- Color Technology RGB Configurable
- Color Option 2 Yellow
- Color Option 3 Red
- Power Source DC
- Quick Disconnect Type M12 (Euro)
- Max Current Color (mA) 220
- Environmental Rating IP67
- Pro-Editor Compatible (Discrete) Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Product Size (mm) 50
- Lumens Color 2 23.8
- NEMA Type and UL Type Rating NEMA and UL 13
- Feature: Chemical Resistant No
- Indication Yes
- Number of Tower Light Segments 3
- Lumens Color 3 7.2
- Input Type Bimodal (PNP/NPN)
- IO Link No
- Feature: Hazardous Area No
- Number of Input Pins/Conductors 5
- Feature: Audible No
- Connection Pigtail QD
- Primary Housing Material ABS
- Color 3 - Wavelength/Color Temp/Coordinates 620 nm
- Multi-Color Device Simultaneous Colors On
- Max Input Response Time (ms) 250
- Primary Housing Color Gray
- Wireless No
- Primary Window Material Polycarbonate Diffused
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL50P3CQP Description
Banner Engineering TL50P3CQP is a tower light from the Standard series, featuring a monolithic design with 3-tiers of 14-color multicolor LED illumination. This programmable tower or stack light is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers. It has a 50mm / 2" diameter and is pre-wired with a 6" / 15cm pigtail that terminates with a 5-pin M12 Euro-style QD connector. The housing is gray, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). Designed for surface or base pole mounting with an M30 thread, it can operate in ambient air temperatures ranging from -40°C to +50°C. The TL50P3CQP offers a degree of protection rated at IP67, NEMA 13, UL type 13, and has a cylindrical shape. It consumes 220mA of current and includes 3 x digital inputs (10-30Vdc; PNP/NPN) for color control.
Related documents TL50P3CQP Specs
1-year warranty
