WLB32C1130PBQ Banner Light Bars

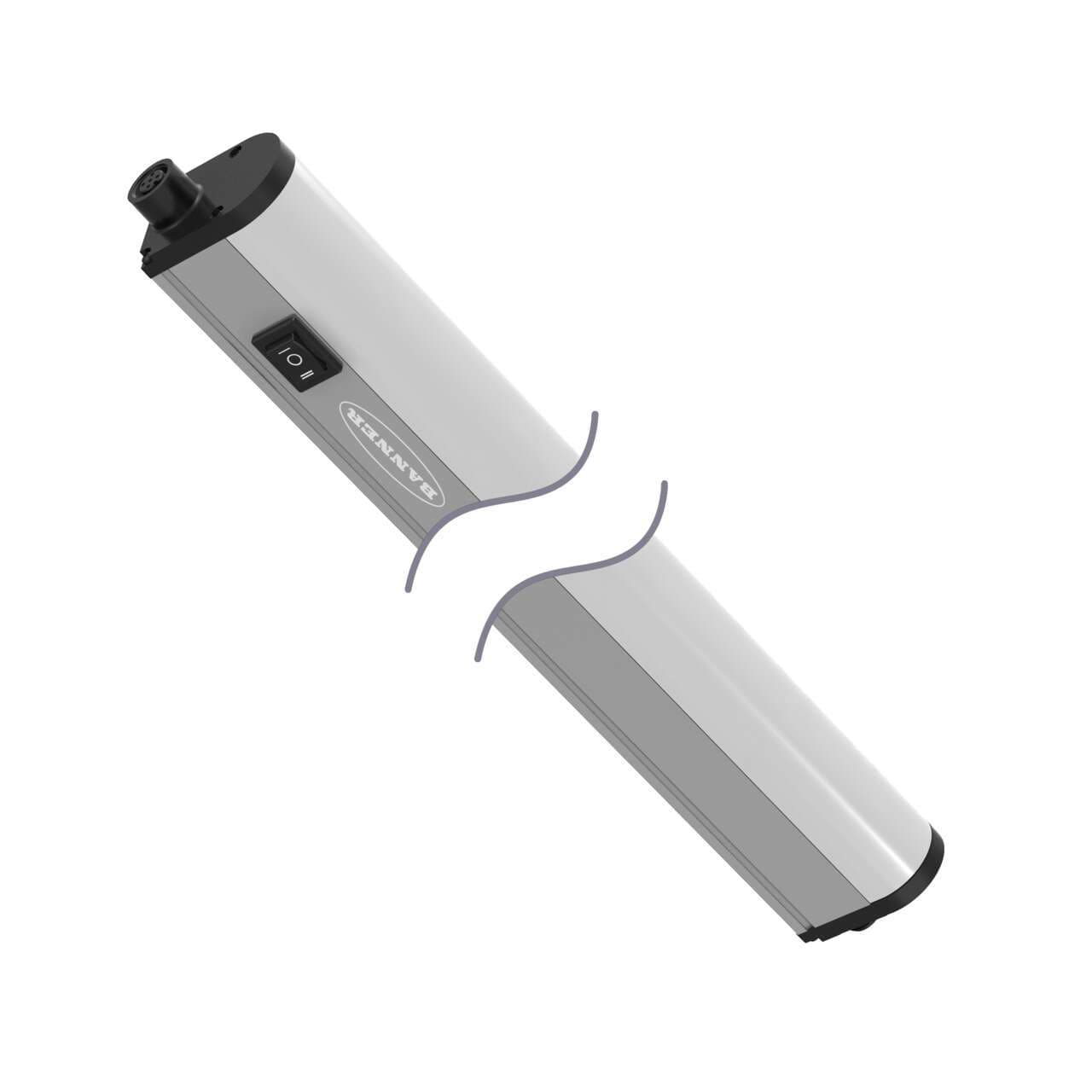

Banner WLB32C1130PBQ WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 1130 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; Cascadable; 4-pin M12 Integral QD; Diffuse Window
Banner

Part#:WLB32C1130PBQ

Manufacturer:Banner

Alt. Part#:87484

Product Lifecycle:Active

In-stock parts: 2

Nov 5, 2025

WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 1130 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; Cascadable; 4-pin M12 Integral QD; Diffuse Window

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLB32C1130PBQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight1025.11792 g
  • Country Of OriginMX
  • Color Option 1
    White
  • Lumens Color 1
    3000
  • Power Source
    DC
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    4
  • Feature: Hazardous Area
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Product Size (mm)
    32
  • Housing Style
    Linear Strip
  • Supply Voltage
    12-30 V dc
  • Storage Temp (°C)
    -40 to 70
  • Modbus RTU
    No
  • Illumination
    Yes
  • Connection
    Integral QD
  • Illuminated Length (LxWxH mm)
    1130.0
  • Illumination Switch Function
    I=Low; O=OFF; II=High
  • Number of Colors / Segments
    1
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Environmental Rating
    IP50
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Power
    DC
  • Dimming Option
    High-Low-Off
  • Primary Housing Material
    Aluminum
  • Quick Disconnect Type
    M12 (Euro)
  • Max Op. Temperature (°C)
    70
  • Feature: Chemical Resistant
    No
  • Mounting Thread
    No Thread
  • Animation Option 1
    Solid On
  • Min Op. Temperature (°C)
    -40
  • Feature: Audible
    No
  • Physical Dimensions (LxWxH or DxH mm)
    1166.0 x 31.9 x 46.0
  • IO Link
    No
  • Feature: Cascade
    Yes
  • Primary Window Material
    Polycarbonate Diffused
  • Wireless
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

WLB32C1130PBQ Description

Banner Engineering WLB32C1130PBQ is a cascadable industrial LED workstation task light bar designed for a variety of lighting needs. It features a high/low/off switch and provides 1-color Daylight White (DW) LED illumination. This product operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this linear lighting are L1130mm x W32mm, and it is constructed with a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The WLB32C1130PBQ offers a degree of protection rated at IP50 and can operate in ambient air temperatures ranging from -40°C to +70°C. It includes 1 x digital input (12Vdc / 24Vdc) for color control, consumes 3.2A of current, and delivers a luminous flux of 3000 lm (lumens).

Related documents WLB32C1130PBQ Specs

WLB32C1130PBQ 176313.pdf
