WLS28-2XW1130XPBQ Banner Light Bars
Part#:WLS28-2XW1130XPBQ
Manufacturer:Banner
Alt. Part#:88001
Product Lifecycle:Active
In-stock parts: 6
Nov 5, 2025
WLS28-2 Work Light Strip; Switched; Length: 1130 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS28-2XW1130XPBQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight1043.2616 g
- Country Of OriginMX
- Power Source DC
- Product Size (mm) 28
- Quick Disconnect Type M12 (Euro)
- Min Op. Temperature (°C) -40
- Number of Colors / Segments 1
- Power DC
- Connection Integral QD
- Environmental Rating IP50
- Feature: Quick Disconnect Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Dimming Option High-Low-Off
- Storage Temp (°C) -40 to 70
- Feature: Chemical Resistant No
- Housing Style Linear Strip
- Animation Option 1 Solid On
- Illumination Switch Function I=Low; O=OFF; II=High
- Wireless No
- Mounting Thread No Thread
- Color Technology Standard LED
- Supply Voltage 12-30 V dc
- Feature: Audible No
- Illumination Yes
- Color Option 1 White
- Physical Dimensions (LxWxH or DxH mm) 1203.0 x 28.0 x 25.0
- IO Link No
- Primary Housing Material Aluminum
- Number of Input Pins/Conductors 4
- Primary Window Material Polycarbonate Clear
- Lumens Color 1 3200
- Illuminated Length (LxWxH mm) 1130.0
- Feature: Hazardous Area No
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Max Op. Temperature (°C) 70
- Modbus RTU No
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS28-2XW1130XPBQ Description

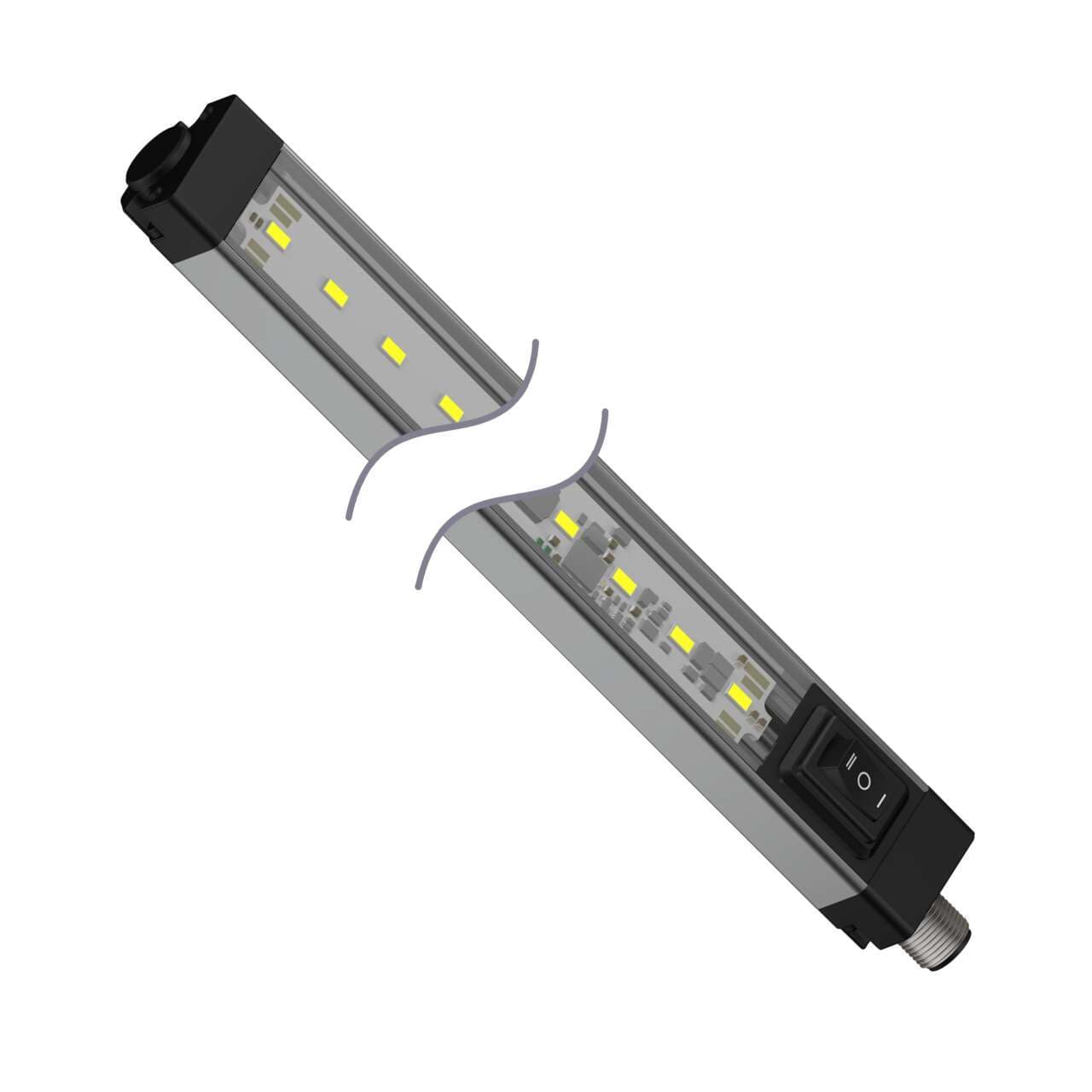

Banner Engineering WLS28-2XW1130XPBQ is a LED industrial task strip light designed for a variety of lighting needs. It features a high/low/off switch with a clear plastic window for 1-color Cool White (W) LED illumination. This task light operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. It measures 1130mm in length and 28mm in width. The light strip is constructed with a polycarbonate window and an anodized aluminum housing, ensuring durability. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The linear light strip is designed for surface or wall mounting and offers a degree of protection rated at IP50. It can operate in ambient air temperatures ranging from -40°C to +70°C. Additionally, it includes 1 digital input (12-30Vdc) for color control and provides a luminous flux of 3200 lumens.
Related documents WLS28-2XW1130XPBQ Specs
