DH223NRK Eaton Industrial Automation Components
Part#:DH223NRK
Manufacturer:Eaton
Product Lifecycle:Active
Get a quick Quote!

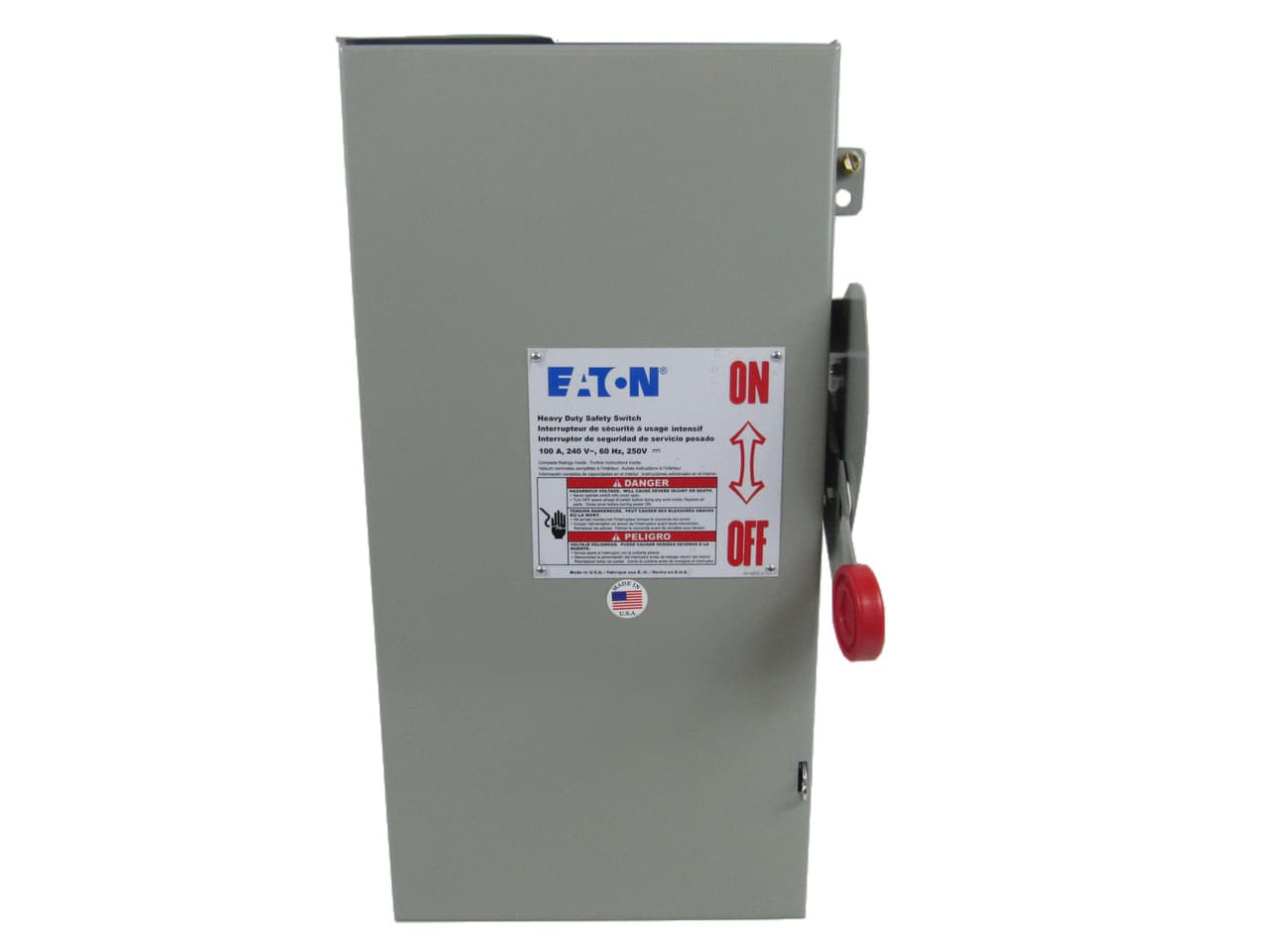

DH223NRK Eaton - Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 100 A, NEMA 3R, Neutral, Two-pole, Three-wire, 240 V, Max Hp: 7.5, 15 hp/15, 30 hp/20 hp (1,3PH @ Std fuse/time delay/250 Vdc), #14-#1/0 Cu/Al
About the manufacturer: Eaton is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. At Eaton, we are dedicated to improving quality of life and preserving the environment through power management technologies that emphasize reliability, efficiency, safety, and sustainability. Our attention is on impactful solutions, and we are committed to their success.
Check out the DH223NRK Eaton price in the box on the right side or send a quick quote.
Product Details
- UPC 782113206233
- Special features Enhanced visible blade
- Product Height 9 in
- Voltage rating 240V
- Product Category Heavy Duty, Fusible with neutral
- Type Heavy Duty Fusible Safety Switch
- Product Name Eaton enhanced visible blade single-throw fused safety switch
- Catalog Notes 3-Phase hp ratings shown are grounded B phase ratings; UL listed
- Product Width 12.75 in
- Fuse class provision Class H
- HP rating - max 7.5, 15 hp/15, 30 hp/20 hp (1,3PH @ Std fuse/time delay/250 Vdc)
- Product Length/Depth 22.5 in
- Enclosure 3R
- Catalog Number DH223NRK
- Enclosure material Painted galvanized steel
- Certifications UL Listed
- Amperage Rating 100A
- Product Weight 26 lb
- Number of wires 3
- Fuse configuration Fusible with neutral
- Number Of Poles Two-pole
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Shipping Length: 23.00 In.
- Enclosure Material: Steel
- Size: 10.78 Inch W x 9.89 Inch D x 21.99 Inch H
- Fuse Type: Cartridge
- Shipping Width: 13.00 In.
- Neutral Type: Solid
- Type: Heavy Duty Safety
- Poles: 2
- Fuse Provision: Fusible
- Shipping Height: 9.00 In.
- Finish: Painted Galvanized
- UPC: 782113206233
- Approval: UL 98
- Amps: 100 A
- DC Voltage Rating: 250 V
- Shipping Weight: 21.35
- Enclosure: NEMA 3R
- Series: DH
- AC Voltage Rating: 240 V
- Number of Wires: 3
- Power Rating: 7-1/2 HP at 240 VAC 1-Phase
- Amperage 100 amperes
- Number of Poles 2
- Weight 26 pounds
- Height 9 inches
- Length 22.5 inches
- Enclosure Material Painted Galvanized Steel
