1451382 Festo Stepper Motors
Part#:1451382
Manufacturer:Festo
Alt. Part#:EMMS-ST-28-L-SEB
Product Lifecycle:Active
Get a quick Quote!

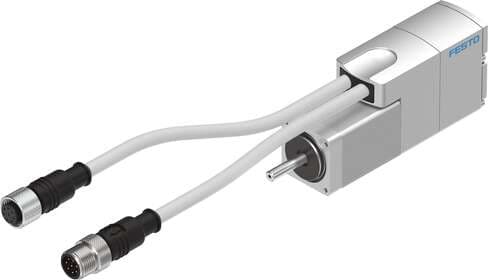

stepper motor EMMS-ST-28-L-SEB Without gear unit/with brake. Ambient temperature: -10 - 50 °C, Storage temperature: -20 - 70 °C, Relative air humidity: 0 - 85 %, Conforms to standard: IEC 60034, Insulation protection class: B
About the manufacturer: Festo is one of the manufacturers that offers Stepper Motors that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 1451382 Festo price in the box on the right side or send a quick quote.
Product Details
- Step angle with full step 1.8 deg
- Step angle tolerance ±5%
- Brake DC operating voltage 24 V
- Motor nominal current 1.4 A
- Voltage constant, phase 6 mVmin
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Degree of protection IP65
- Total output inertia moment 0.025 kgcm²
- Permissible axial shaft load 7 N
- Rotor mass moment of inertia 0.018 kgcm²
- Max. rotational speed 6000 1/min
- Phase winding resistance 2.3 Ohm
- Rating class according to EN 60034-1 S1
- Storage temperature -20 °C ... 70 °C
- Ambient temperature -10 °C ... 50 °C
- Certification RCM compliance mark c UL us - Recognized (OL)
- Rotor position sensor Incremental encoder
- Rotor position sensor measuring principle Optical
- Winding inductance phase 1.4 mH
- Motor holding torque 0.09 Nm
- Product weight 380 g
- Type code EMMS-ST
- Brake power consumption 8 W
- CE marking (see declaration of conformity) As per EU EMC directive
- Relative air humidity 0 - 85 %
- Thermal class according to EN 60034-1 B
- Brake holding torque 0.2 Nm
- Brake mass moment of inertia 0.007 kgcm²
- Note on materials RoHS-compliant
- Rotor position sensor interface RS422 TTL A/B channels + zero index
- Insulation protection class B
- Nominal operating voltage DC 48 V
- Electrical connection technology Plug
- Permissible radial shaft load 20 N
- Conforms to standard IEC 60034
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
