574340 Festo Proximity Sensors
Part#:574340
Manufacturer:Festo
Alt. Part#:SMT-8M-A-PO-24V-E-7,5-OE
Product Lifecycle:Active
In-stock parts: 12
Jan 15, 2026

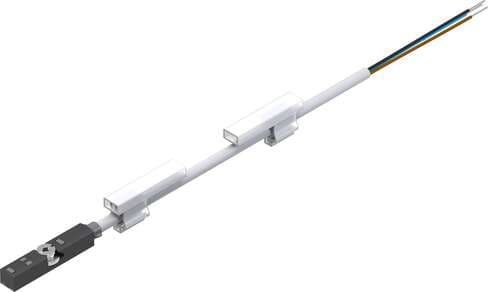

proximity sensor SMT-8M-A-PO-24V-E-7,5-OE Magnetic, contactless, for T-slot. Design: for T-slot, Based on the standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC
About the manufacturer: Festo is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 574340 Festo price in the box on the right side or send a quick quote.
Product Details
- Type code SMT
- Electrical connection 1, number of pins/wires 3
- Design for T-slot
- Note on materials Free of copper and PTFE Halogen-free
- Max. switching capacity DC in mounting kits 2.8 W
- Reverse polarity protection for all electrical connections
- Connection outlet orientation Longitudinal
- Material of cable sheath TPE-U(PUR)
- Switching status indication LED yellow
- Electrical connection 1, connection technology Open end
- Based on norm EN 60947-5-2
- Special features Oil-resistant
- Switching output PNP
- Max. output current in mounting kits 100 mA
- DC operating voltage range 5 V ... 30 V
- Color cable sheath Gray
- Cable length 7.5 m
- Housing colour Black
- KC characters KC EMC
- Certification RCM compliance mark c UL us - Listed (OL)
- Ambient temperature -40 °C ... 85 °C
- On time ≤ 1.3 ms
- Max. switching frequency 180 Hz
- Voltage drop < 1.5 V
- Rated operating voltage DC 24 V
- Mounting position Any
- Degree of protection IP65 IP69K
- Ambient temperature with flexible cable installation -20 °C ... 85 °C
- Repetition accuracy 0.2 mm
- CE marking (see declaration of conformity) As per EU EMC directive As per EU RoHS directive
- Measuring principle Magneto-resistive
- Switch-off time ≤ 1.4 ms
- Max. switching capacity DC 2.8 W
- Overload protection Available
- Cable characteristic Suitability for energy chains/robot applications
- Product weight 85.1 g
- Max. tightening torque 0.6 Nm
- Function reserve indication LED orange
- Electrical connection 1, connection type Cable
- Symbol 00991151
- Measured variable Position
- Switching element function N/C contact
- Max. output current 100 mA
- Short-circuit protection yes
- Connector cable test conditions Flexural strength: as per Festo standard Torsional resistance: > 300 000 cycles, ±270°/0.1 m
- Type of mounting Screwed tightly Can be inserted in slot from above
- Housing material PA-reinforced High-alloy stainless steel
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 574340 Specs
