YGHC2C2TN Hubbell Electronic Components
Part#:YGHC2C2TN
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

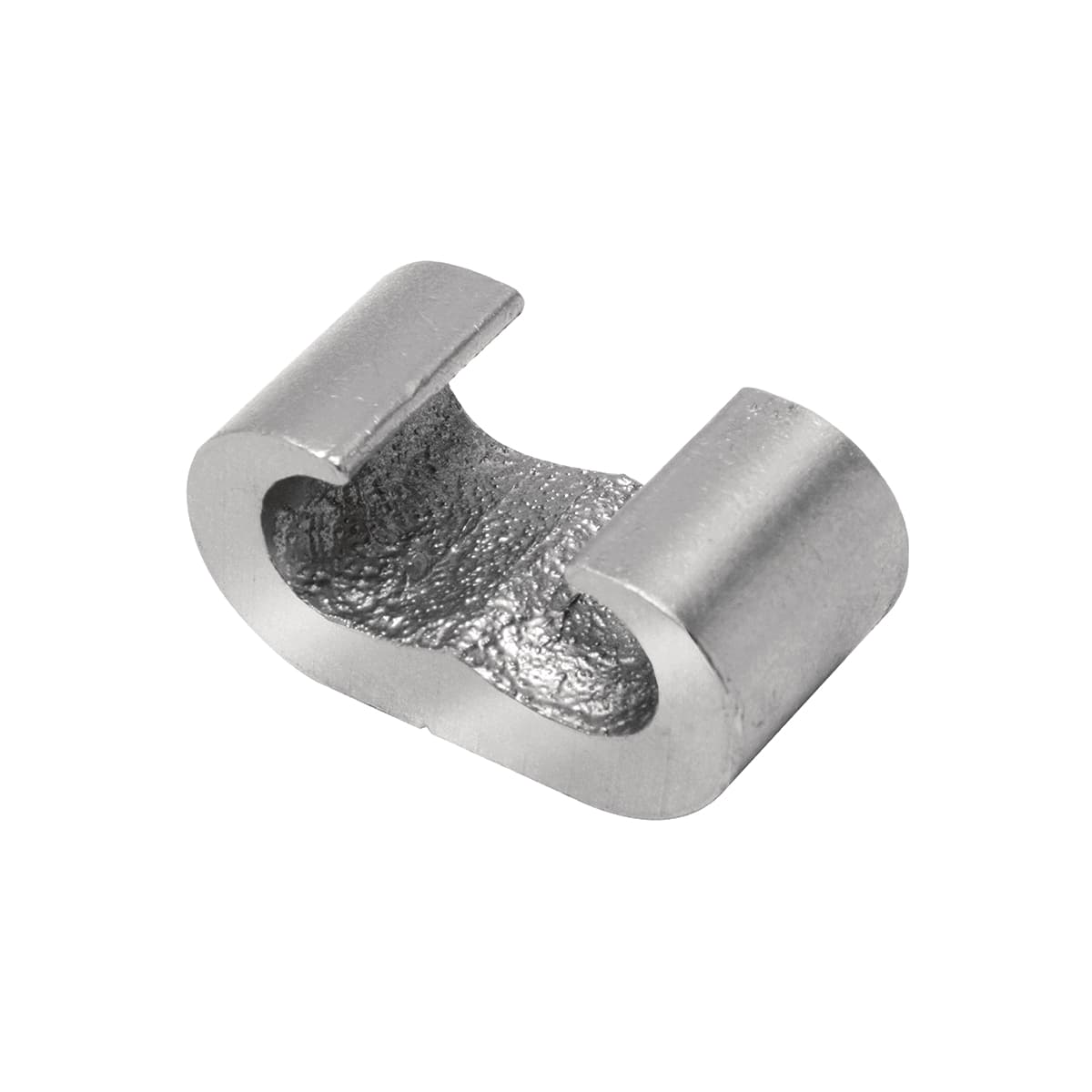

Cu Comp Ground Tap Connector, #6 Sol-#2 Str, 1/4 " Rod(Run), #6 Sol-#2 Str(Tap), C Index.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YGHC2C2TN Hubbell price in the box on the right side or send a quick quote.
Product Details
- Dimension - Height fraction 1-4/25 in
- Type Taps
- Dimension - Length Overall inch 0.75 in
- Conductor - Copper Str Run 7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Rod Run Range 1/4 in
- Certification - CSA Approved Yes
- Minimum Pack Quantity 1
- Connector Type Tap
- Conductor - Copper Solid Tap 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG
- Certification - ETL No
- Certification - cULus No
- Dimension - Height inch 1.16 in
- Conductor - Copper Solid Run Range 6 AWG-1 AWG
- Plating Type Tin - Electro Plated
- Conductor - Copper Solid Tap Range 6 AWG-1 AWG
- Conductor - Copper Str Tap Range 7-2
- Standards - Industry Standards Met UL467 ; IEEE 837 ; UL468A-468B
- Die Index C
- UPC 781810172810
- Plated Y
- Conductor - Copper Str Tap 7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Certification - UL Listed Direct Burial Yes
- Industry Standard(s) Direct Burial
- Physical Attribute - Number of Crimps Required 1
- UPC 12 Digit 7818101728100
- Trade Name HYTAP™
- Conductor - Rod Run 1/4 in
- Conductor - Copper Str Run Range 7 AWG-2 AWG
- Certification - UL Recognized No
- Standards - RoHS Compliance Status CM
- UL Listed Yes
- Dimension - L Length Overall mm 19 mm
- Conductor - Copper Solid Run 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents YGHC2C2TN Specs
