R1200132 Mersen Electronic Components
Part#:R1200132
Manufacturer:Mersen
Alt. Part#:9008567015629
Product Lifecycle:Active
Get a quick Quote!

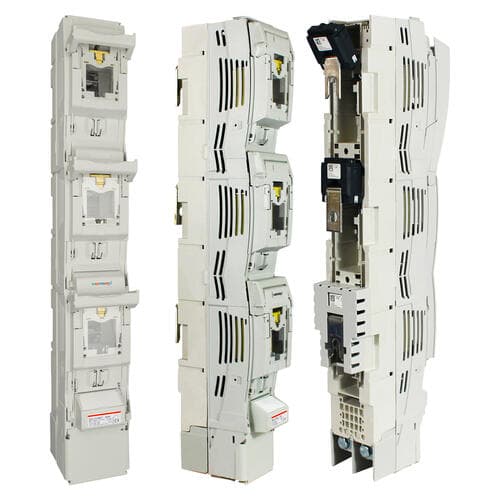

MULTIVERT i-Xtensio 400A, single pole switching V-terminal
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the R1200132 Mersen price in the box on the right side or send a quick quote.
Product Details
- Switchability 1 x triple pole, 3 x single pole
- Conventional Free Air thermal Current - Solid Links 630 A
- Rated short circuit making capacity with solid links Icm 16 kA
- Product Height 26.97 in
- Catalogue No. 7.220.000
- Utilization Category AC22B @ Ue = AC 500 V; Ie = 400 A
- Max Power dissipation of Fuse Links Pn 34 W
- Frequency 50...60 Hz
- Rated Insulation Voltage 1000 V
- Power Dissipation by Ith without Solid Links 151 W
- Sell Pack Height 4.13 in
- Number of Poles 3-Pole
- Installation Mounting Bus bar system 185 mm
- Sell Pack Width 7.87 in
- Rated voltage AC IEC 690 V
- Short Circuit Current Rating (SCCR) 120kA@Ue = AC 400 V; Ie = 400 A / 120kA@Ue = AC 500 V; Ie = 400 A / 120kA@Ue = AC 690 V; Ie = 315 A / 100kA@Ue = AC 690 V; Ie = 400 A
- Conventional Free Air thermal Current With Fuse-Links Ith 400 A
- Sell Pack Weight 11.244 lb
- ROHS Compliant Yes
- Degree of Pollution 3
- Power Dissipation by Ith without Fuse-Links 61 W
- Sell Pack Quantity 1 Each
- Ampere Rating 400 A
- Fuse Size 2
- Max Power dissipation of Solid Links Pn 9 W
- Product Length 8.5 in
- Rated Impulse Withstand Voltage 12 kV
- Rated SC Withstand 8 kA / 1 s
- Product Weight 11.244 lb
- Sell Pack Length 27.76 in
- Product Width 3.86 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents R1200132 Specs
