S075916 Mersen Fuses
Part#:S075916
Manufacturer:Mersen
Alt. Part#:3605340013009
Product Lifecycle:Active
Get a quick Quote!

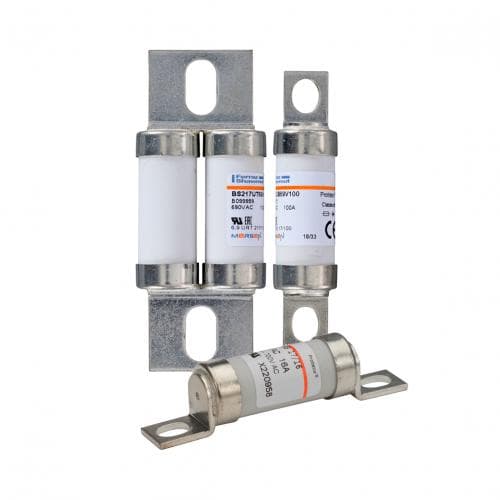

S075916 Mersen - British Standard fuse-link Protistor® 2x17x49 gR 690V AC UL 150A With Striker
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the S075916 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating150 A
- Trip ClassHigh Speed
- Fuse ClassSemiconductor
- Weight94.886 g
- Country Of OriginIN
- Clearing I2t At Rated Voltage 18500 A²s
- Product Diameter 0 in
- Indication System Type Striker
- Catalogue No. BS217UT69V150P
- Power Dissipation at Rated Current Value 28.7 W
- Product Length 3.55 in
- Ampere Rating 150 A
- Body/Insulating Material Ceramic
- Sell Pack Width 4.02 in
- Mounting Bolted
- Sell Pack Quantity 5 EACH
- Sell Pack Height 1.18 in
- Fuse Size 2x17x49
- Indication System Yes
- Product Weight 0.209 lb
- Sell Pack Weight 1.047 lb
- Sell Pack Length 9.72 in
- Melting I2t 2090 A²s
- Product Height 0.94 in
- Rated voltage AC UL 1
- AC Max I.R./Breaking Capacity: I1 200 kA
- Product Width 1.79 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
S075916 Description
S075916 Mersen - British Standard fuse-link Protistor® 2x17x49 gR 690V AC UL 150A With Striker
Product type: Semiconductor Protection Fuses
Extremely high breaking capacity fuses:
Protection of power semiconductors as per IEC standard 60269-1 and -4
690V voltage rating as per IEC 33
gR class (current ratings 12 to 90A) as per VDE 636-23
- Clearing all overloads
- Improved safety and protection
- Enabling selective coordination with all fuses within distribution circuit
aR class (current ratings 100A) according to VDE 636-23 and IEC 60269-4
Connection as per:
- German standard DIN 43653/00C
- British standard BS88-4
These fuses are UL Recognized
