85692 Murr Elektronik AC/DC Power Supplies
Part#:85692
Manufacturer:Murr Elektronik
Alt. Part#:85002
Product Lifecycle:Active
Get a quick Quote!

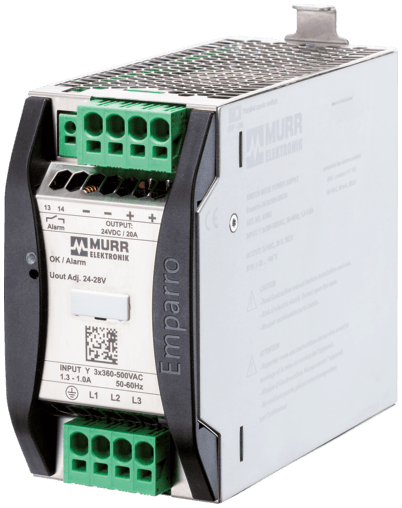

85692 Murrelektronik - Emparro Power Supply 3-PHASE, IN: 360 - 500VAC OUT: 24-28V/20ADC, Power Boost - for 5 seconds 50% additional power
About the manufacturer: Murr Elektronik is one of the manufacturers that offers AC/DC Power Supplies that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 85692 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight1360 g
- SeriesTransformators/Power Supplies
- Connection Push-In spring clamp terminals
- Parallel usage/serial usage max. 3 units
- Mounting method DIN-rail mountable TH35 (EN 60715)
- Power factor 0.65 (3× 500 V AC)
- Efficiency 94.8% (3× 400 V AC); 94.5% (3× 480 V AC)
- Output current 15 A (70 °C); 20 A (60 °C); 24 A (45 °C)
- Frequency 50...60 Hz
- Spikes max. 90 mV ss/pp
- Input voltage 3× 324...572 V AC/450...745 V DC
- Temperature range -40...+70 °C, ...+70 °C derating (storage temperature -40...+85 °C)
- Ripple max. 20 mV eff/rms
- Standards IEC 61010-2-201, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47
- Input current 1.3 A (3× 360 V AC); 1.0 A (3× 500 V AC)
- Protection IP20
- LED display LED (green): OK; LED (red): overload, overheating or short-circuit
- Power Boost Iout N × 150% (min. 5 s)
- Product article number of manufacturer 85692
- Dimensions H×W×D 143×65×167 mm
- Inrush current after 1 ms max. 13 A (3× 500 V AC)
- Output voltage 24 V DC (SELV), ±1%; 24...28 V adjustable
- Mains failure bridging time min. 40 ms (3× 500 V AC)
- Input fuse (internal) 3× 6.3 A (T)
- Relative humidity 5...95%, no condensation
- Unit protection short-circuit and overload protected, permanently by 20% (to 45 °C)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
85692 Description
85692 Murrelektronik - Emparro Power Supply 3-PHASE, IN: 360 - 500VAC OUT: 24-28V/20ADC, Power Boost - for 5 seconds 50% additional power
Related documents 85692 Specs
1-year warranty
