BN 32-01 Schmersal Electronic Components
Part#:BN 32-01
Manufacturer:Schmersal
Alt. Part#:101057229
Product Lifecycle:Active
Get a quick Quote!

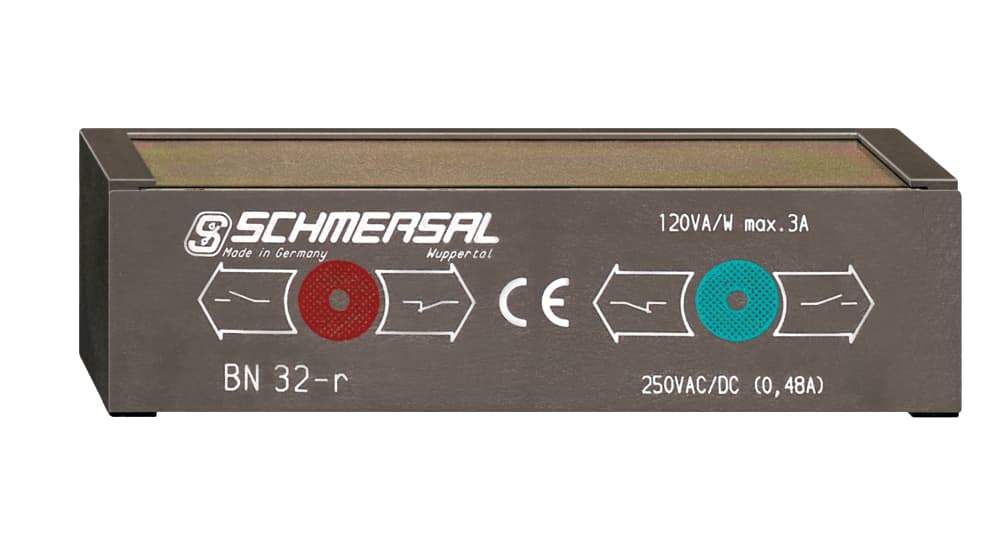

Magnetic reed switch; Non-contact principle; 1 Reed contakts; Long life; Actuating surface and direction of actuation marked by switch symbol; 85 mm x 26 mm x 24 mm; Thermoplastic enclosure; Actuating distance up to 55 mm depending on actuating magnet and
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the BN 32-01 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Gross weight 58 g
- Voltage type AC (alternating current)
- Actuating element Magnet
- Switch distance Sn BP 10 = 5 mm, BP 15 = 6 mm, BP 34 = 15 mm
- Height of sensor 26 mm
- Switching current, maximum 3 A
- Actuating panels lateral
- Mechanical life, minimum 1,000,000,000 Operations
- Terminal Connector Flat plug-in connector 4.8 mm
- Width of sensor 85 mm
- Ambient temperature, maximum +90 °C
- Enclosure material Glass-fibre, reinforced thermoplastic
- Length of sensor 24 mm
- Degree of protection IP67
- Bounce duration, minimum 0.3 ms
- Active area lateral
- Notice (Switch distance Sn) Actuating distance up to 40 mm depending on version and actuating magnet
- Ambient temperature, minimum -25 °C
- Switching frequency 1,080,000 /h
- Housing construction form Block
- Active principle Magnetic drive
- Actuating speed, maximum 18 m/s
- Switching voltage, maximum 250 VAC
- Switching element Opener (NC)
- Number of openers 1
- Repeat accuracy R R 0.3 mm
- Resistant to vibration 15 g, on sine wave oscillation
- Bounce duration, maximum 0.6 ms
- Switching capacity, maximum 120 VA
- Versions Reed contacts
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents BN 32-01 Specs
1-year warranty
