BN 325-RG-1279 Schmersal Electronic Components
Part#:BN 325-RG-1279
Manufacturer:Schmersal
Alt. Part#:101147106
Product Lifecycle:Active
Get a quick Quote!

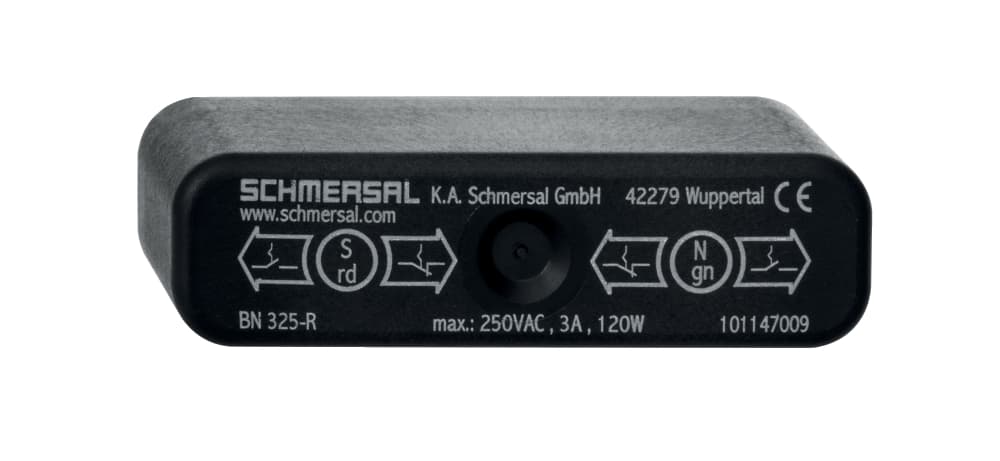

Magnetic reed switch; Cable output left and 2 shielding plates; Actuation from front; Non-contact principle; 1 Reed contakts; Long life; Actuating surface and direction of actuation marked by switch symbol; 85 mm x 26 mm x 24 mm; Thermoplastic enclosure;
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the BN 325-RG-1279 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Active principle Magnetic drive
- Notice (Switch distance Sn) Actuating distance up to 55 mm depending on actuating magnet and version. The specified switching distances are applicable for the actuation of individually mounted components without ferromagnetic influence. A change of the distance, either positive or n
- Ambient temperature, minimum -25 °C
- Versions Reed contacts
- Actuating panels front side
- Gross weight 93.5 g
- Terminal Connector Cable outlet left and 2 shielding plates with LED
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Bounce duration, minimum 0.3 ms
- Enclosure material Glass-fibre, reinforced thermoplastic
- Switch distance Sn 5 mm … 55 mm, 2 x BP 21S = 20 ... 55 mm, BP 34S = 10 ... 25 mm
- Degree of protection IP67
- Switching current, maximum 3 A
- Number of snap-in contacts 1
- Actuating speed, maximum 18 m/s
- Height of sensor 26 mm
- Switching frequency, maximum 300 Hz
- Integral System Diagnostics, status Yes
- Mounting rear with 2 threaded bolts
- Ambient temperature, maximum +70 °C
- Switching capacity, maximum 120 VA
- Suitable for elevators Yes
- Repeat accuracy R R 0.3 mm
- Width of sensor 85 mm
- Switching element bistable contact
- Latching Yes
- Actuating element Magnet
- Length of cable 1 m
- Switching voltage, maximum 250 VAC
- Housing construction form rectangular
- Mechanical life, minimum 1,000,000,000 Operations
- Length of sensor 24 mm
- Restistance to shock 50 g / 11 ms
- Bounce duration, maximum 0.6 ms
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents BN 325-RG-1279 Specs
