BN 85-R-1824-1 5,0M Schmersal Electronic Components
Part#:BN 85-R-1824-1 5,0M
Manufacturer:Schmersal
Alt. Part#:101095158
Product Lifecycle:Active
Get a quick Quote!

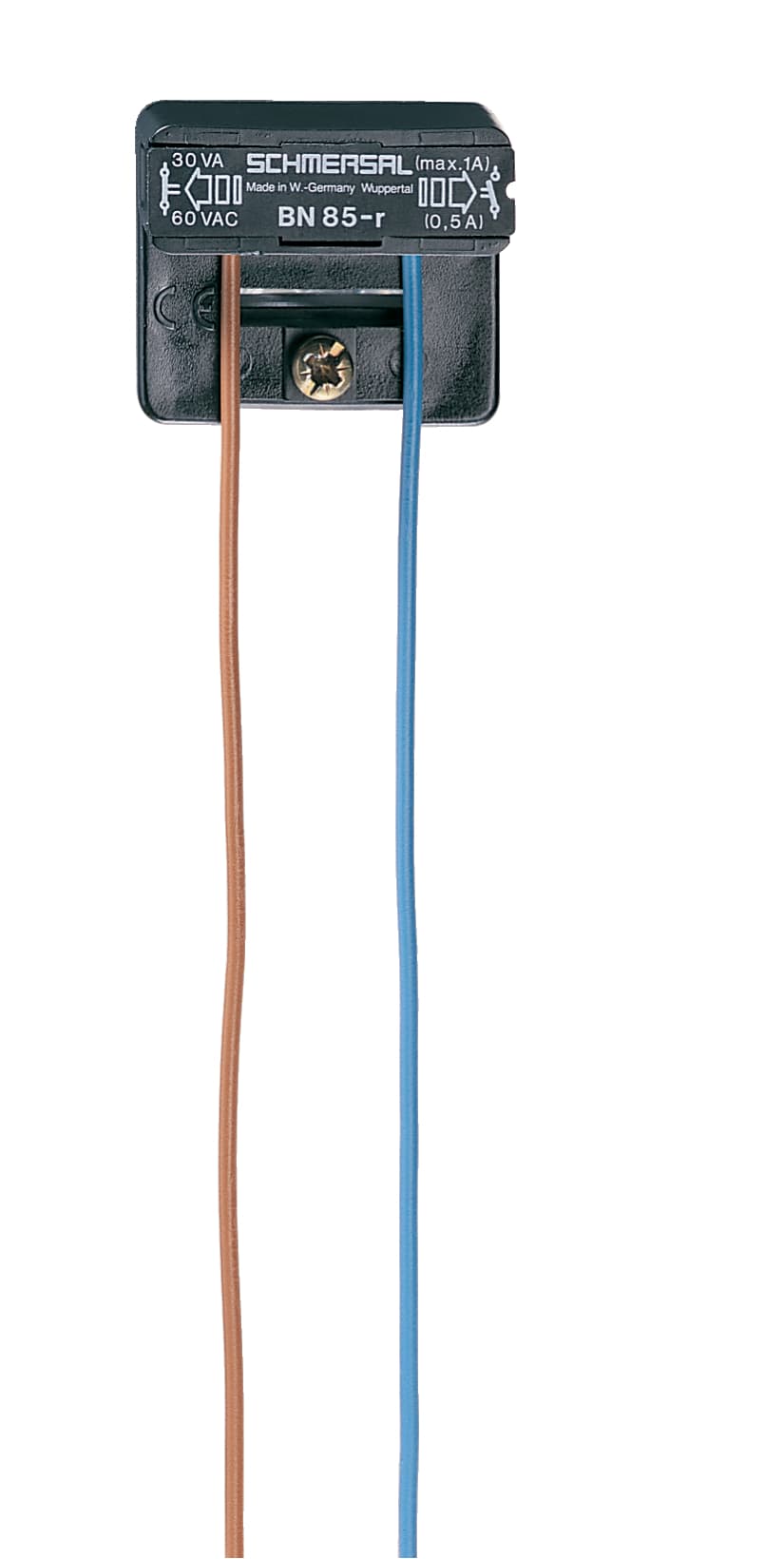

Magnetic reed switch; Mounting on C DIN rail and sheathed cable without screws; Non-contact principle; 1 Reed contakts; Long life; Actuating distance up to 40 mm depending on actuating magnet and version; 40 mm x 35 mm x 16,5 mm; Thermoplastic enclosure;
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the BN 85-R-1824-1 5,0M Schmersal price in the box on the right side or send a quick quote.
Product Details
- Gross weight 130 g
- Actuating panels front side
- Mounting Mounting to C profile rails and sheathed cable without screws
- Material of the Cable mantle LiY
- Wire cross-section 18 AWG
- Ambient temperature, maximum +75 °C
- Restistance to shock 60 g, on sine wave oscillation
- Switching voltage, maximum 60 VDC
- Enclosure material Glass-fibre, reinforced thermoplastic
- Suitable for elevators Yes
- Housing construction form Block
- Terminal Connector Cable
- Width of sensor 40 mm
- Voltage type AC (alternating current), DC (direct current)
- Bounce duration, maximum 0.2 ms
- Number of snap-in contacts 1
- Actuating element Magnet
- Notice (Switch distance Sn) Actuating distance up to 40 mm depending on version and actuating magnet
- Height of sensor 35 mm
- Versions Reed contacts
- Latching Yes
- Mechanical life, minimum 1,000,000,000 Operations
- Length of sensor 16.5 mm
- Switching current, maximum 1 A
- Active principle Magnetic drive
- Length of cable 5 m
- Degree of protection IP40 to EN 60529
- Switching element bistable contact
- Active area lateral
- Switch distance Sn 2 mm … 40 mm, BP 6S = 2 … 12 mm, BP 8S = 2 … 10 mm
- Ambient temperature, minimum +0 °C
- Switching capacity, maximum 30 VA
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents BN 85-R-1824-1 5,0M Specs
1-year warranty
