BN 85-R-1824-3 1,0M Schmersal Electronic Components

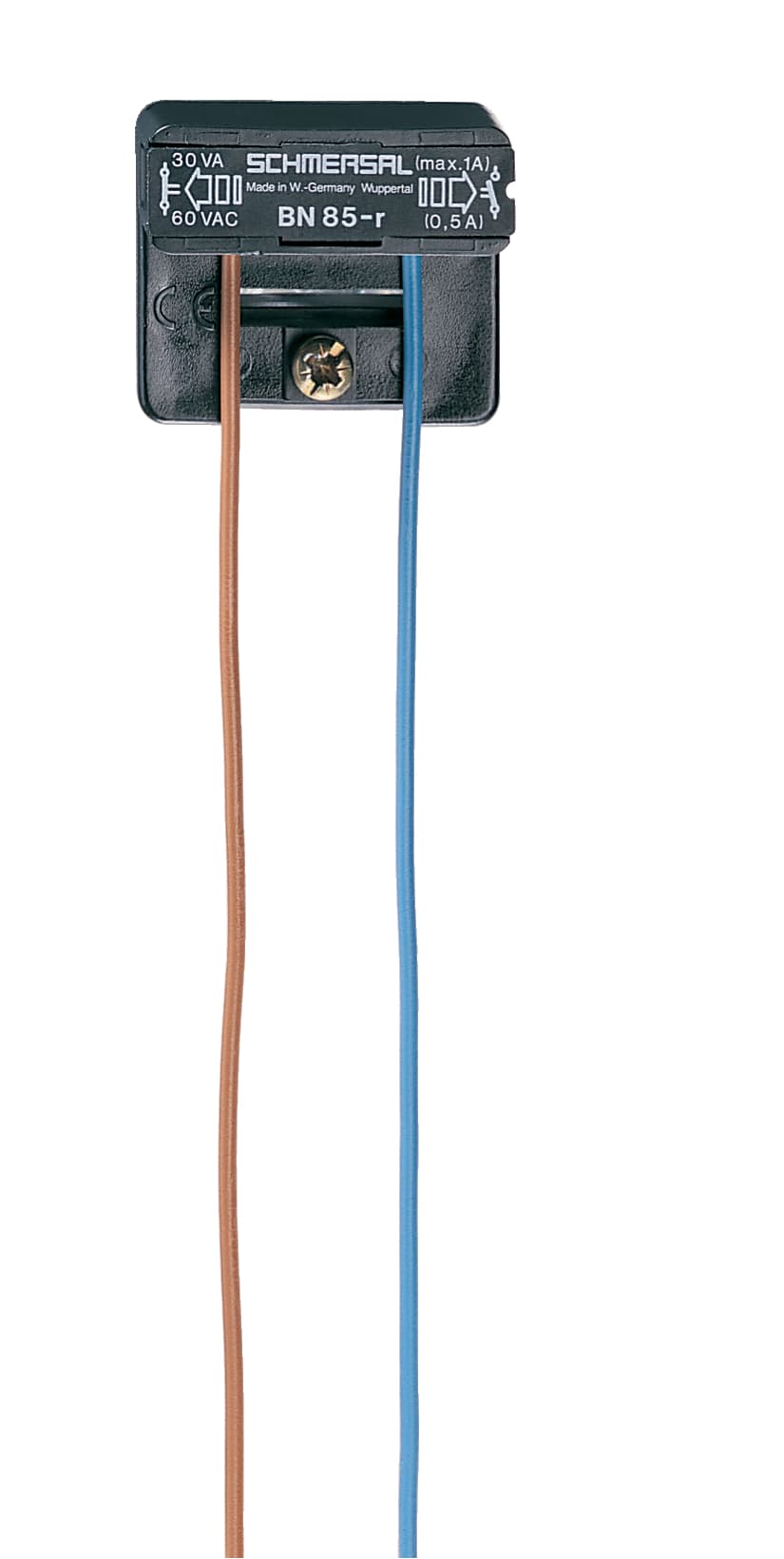

Schmersal BN 85-R-1824-3 1,0M Magnetic reed switch; Mounting with clamping brackets and sheathed cable; Actuation from front; Non-contact principle; 1 Reed contakts; Long life; Actuating distance up to 40 mm depending on actuating magnet and version; 40 mm x 35 mm x 16,5 mm; Thermopla
Schmersal

Part#:BN 85-R-1824-3 1,0M

Manufacturer:Schmersal

Alt. Part#:101101624

Product Lifecycle:Active

Get a quick Quote!

Magnetic reed switch; Mounting with clamping brackets and sheathed cable; Actuation from front; Non-contact principle; 1 Reed contakts; Long life; Actuating distance up to 40 mm depending on actuating magnet and version; 40 mm x 35 mm x 16,5 mm; Thermopla

About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.

Check out the BN 85-R-1824-3 1,0M Schmersal price in the box on the right side or send a quick quote.

Product Details

  • Actuating element
    Magnet
  • Notice (Switch distance Sn)
    Actuating distance up to 40 mm depending on actuating magnet and version. The specified switching distances are applicable for the actuation of individually mounted components without ferromagnetic influence. A change of the distance, either positive or n
  • Number of snap-in contacts
    1
  • Mechanical life, minimum
    1,000,000,000 Operations
  • Material of the Cable mantle
    LiY
  • Ambient temperature, maximum
    +75 °C
  • Switching element
    bistable contact
  • Actuating panels
    front side
  • Actuating speed, maximum
    18 m/s
  • Wire cross-section
    23 AWG
  • Degree of protection
    IP40 to EN 60529
  • Suitable for elevators
    Yes
  • Height of sensor
    35 mm
  • Length of cable
    1 m
  • Latching
    Yes
  • Terminal Connector
    Cable
  • Restistance to shock
    60 g, on sine wave oscillation
  • Versions
    Reed contacts
  • Active principle
    Magnetic drive
  • Switch distance Sn
    2 mm … 40 mm, BP 6S = 2 … 12 mm, BP 8S = 2 … 10 mm
  • Ambient temperature, minimum
    +0 °C
  • Bounce duration, maximum
    0.2 ms
  • Gross weight
    35 g
  • Length of sensor
    16.5 mm
  • Switching current, maximum
    1 A
  • Width of sensor
    40 mm
  • Switching capacity, maximum
    30 W
  • Enclosure material
    Glass-fibre, reinforced thermoplastic
  • Housing construction form
    Block
  • Mounting
    Mounting with clamping foot and sheathed cable
  • Switching voltage, maximum
    60 VDC
  • Voltage type
    AC (alternating current), DC (direct current)

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents BN 85-R-1824-3 1,0M Specs

BN 85-R-1824-3 1,0M Datasheet.pdf
