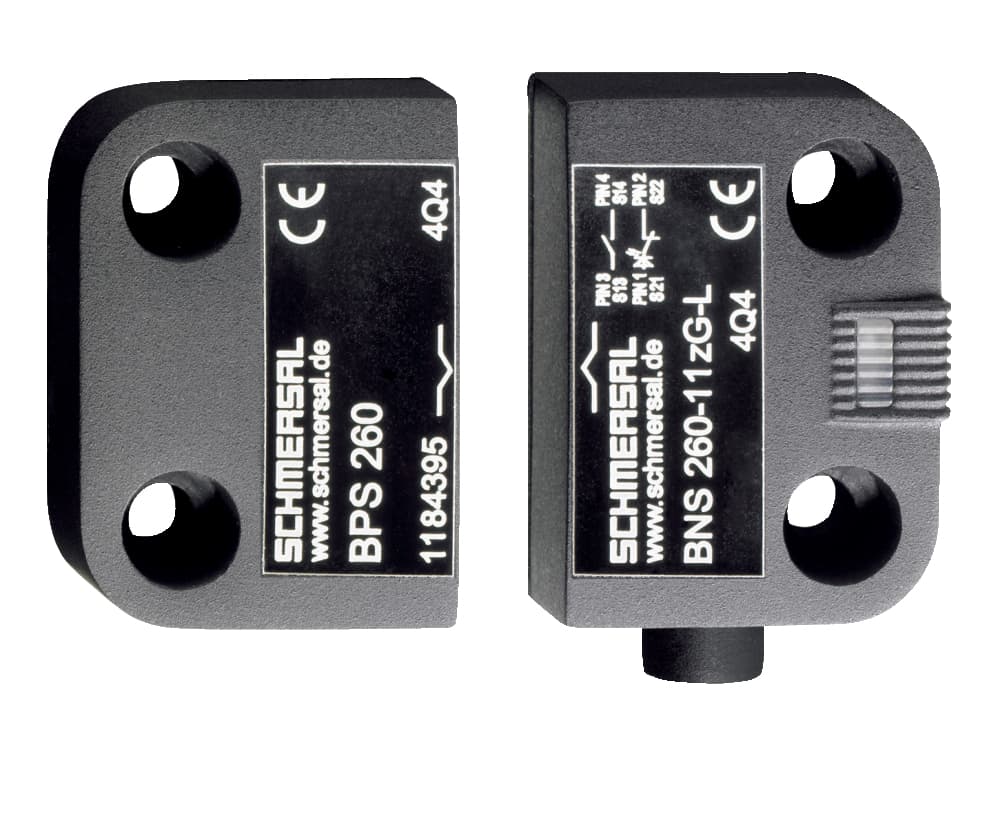

BNS 260-02/01Z-R 5,0M Schmersal Electronic Components
Part#:BNS 260-02/01Z-R 5,0M
Manufacturer:Schmersal
Alt. Part#:101195758
Product Lifecycle:Active
Get a quick Quote!
Safety sensors; Magnetic safety sensors; Thermoplastic enclosure; Small body; Concealed mounting possible; 26 mm x 36 mm x 13 mm; Long life; no mechanical wear; Insensitive to transverse misalignment; Insensitive to soiling
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the BNS 260-02/01Z-R 5,0M Schmersal price in the box on the right side or send a quick quote.
Product Details
- Coding level according to ISO 14119 Low
- Wire cross-section 0.25 mm2
- Standards IEC 60947-5-3, BG-GS-ET-14
- Number of cable wires 6
- Length of sensor 13 mm
- Switching current, maximum 0.4 A
- Number of safety contacts 2
- Ensured switch distance ON Sao 5 mm
- Width of sensor 26 mm
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Number of shutters 3
- Length of cable 5 m
- Ambient temperature, maximum +70 °C
- Switching capacity, maximum 10 VA
- Gross weight 0.3 g
- Terminal Connector Cable
- Storage and transport temperature, maximum +70 °C
- Number of openers 0
- Actuating element Magnet
- Material of the Cable mantle PVC
- Storage and transport temperature, minimum -25 °C
- Enclosure material Glass-fibre, reinforced thermoplastic
- Ensured switch distance OFF Sar 15 mm
- Height of sensor 36 mm
- Restistance to shock 30 g / 11 ms
- Active principle Magnetic drive
- Direction of motion Head-on to the active surface
- Ambient temperature, minimum -25 °C
- Installation conditions (mechanical) quasi-flush
- Notice (Switch distance Sn) Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the t
- Degree of protection IP67
- Switching frequency, maximum 5 Hz
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents BNS 260-02/01Z-R 5,0M Specs
1-year warranty
