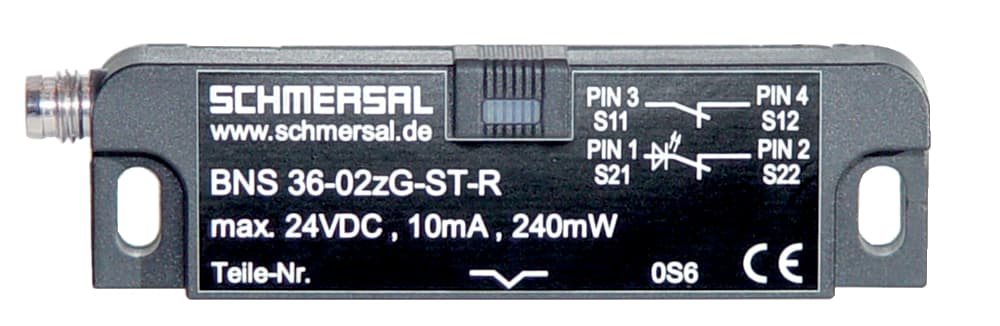

BNS 36-02/10ZG-R 5,0M Schmersal Electronic Components
Part#:BNS 36-02/10ZG-R 5,0M
Manufacturer:Schmersal
Alt. Part#:101217187
Product Lifecycle:Active
Get a quick Quote!
Safety sensors; Magnetic safety sensors; Thermoplastic enclosure; Long life; no mechanical wear; 88 mm x 25 mm x 13 mm; Concealed mounting possible; Insensitive to transverse misalignment; Insensitive to soiling
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the BNS 36-02/10ZG-R 5,0M Schmersal price in the box on the right side or send a quick quote.
Product Details
- Number of openers 2
- Actuating element Magnet
- Active principle Magnetic drive
- Enclosure material Glass-fibre, reinforced thermoplastic
- Number of shutters 1
- Ensured switch distance ON Sao 6 mm
- Number of cable wires 6
- Number of safety contacts 2
- Installation conditions (mechanical) quasi-flush
- Length of cable 5 m
- Ensured switch distance OFF Sar 17 mm
- Degree of protection IP67
- Voltage type DC (direct current)
- Standards IEC 60947-5-3, BG-GS-ET-14
- Notice (Switch distance Sn) Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the t
- Length of sensor 13 mm
- Storage and transport temperature, minimum -25 °C
- Coding level according to ISO 14119 Low
- Wire cross-section 23 AWG
- Switching capacity, maximum 0.2 W
- Height of sensor 25 mm
- Restistance to shock 30 g / 11 ms
- Gross weight 330 g
- Terminal Connector Cable
- Material of the Cable mantle PVC
- Ambient temperature, maximum +70 °C
- Switching frequency, maximum 5 Hz
- Integral System Diagnostics, status Yes
- Direction of motion Head-on to the active surface
- Width of sensor 88 mm
- Ambient temperature, minimum -25 °C
- Switching current, maximum 0.01 A
- Storage and transport temperature, maximum +70 °C
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents BNS 36-02/10ZG-R 5,0M Specs
