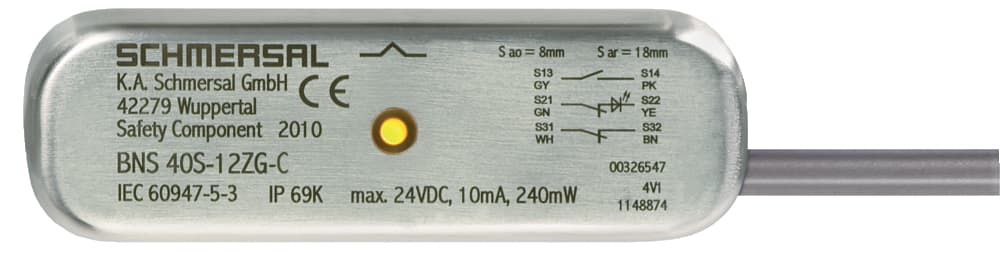

BNS 40S-12ZG-C 20,0M Schmersal Electronic Components
Part#:BNS 40S-12ZG-C 20,0M
Manufacturer:Schmersal
Alt. Part#:103009080
Product Lifecycle:Active
Get a quick Quote!
Safety sensors; Magnetic safety sensors; LED version; especially easy to clean through concealed threaded holes at the rear; Stainless steel enclosure; Cable connection suitable for the food industry; Concealed mounting possible; 88 mm x 27 mm x 14,5 mm;
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the BNS 40S-12ZG-C 20,0M Schmersal price in the box on the right side or send a quick quote.
Product Details
- Number of shutters 1
- Ambient temperature, maximum +80 °C
- Switching capacity, maximum 0.2 W
- Prerequisite evaluation unit Yes
- Actuating element Magnet
- Number of openers 2
- Wire cross-section 23 AWG
- Material of the Cable mantle LiYY
- Restistance to shock 30 g / 11 ms
- Installation conditions (mechanical) not flush
- Terminal Connector Cable
- Width of sensor 88 mm
- Gross weight 1,160 g
- Storage and transport temperature, minimum -25 °C
- Degree of protection IP69K
- Versions Miscellaneous, Reed contacts
- Coding level according to ISO 14119 Low
- Enclosure material Stainless steel (V4A)
- Ensured switch distance OFF Sar 18 mm
- Switching current, maximum 0.01 A
- Active principle Magnetic drive
- Standards IEC 60947-5-3, BG-GS-ET-14
- Length of cable 20 m
- Length of sensor 14.5 mm
- Concealed, threaded holes on the back Yes
- Direction of motion Head-on to the active surface
- Ambient temperature, minimum -25 °C
- Switching frequency, maximum 5 Hz
- Number of cable wires 6
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Storage and transport temperature, maximum +80 °C
- Ensured switch distance ON Sao 8 mm
- Height of sensor 27 mm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents BNS 40S-12ZG-C 20,0M Specs
