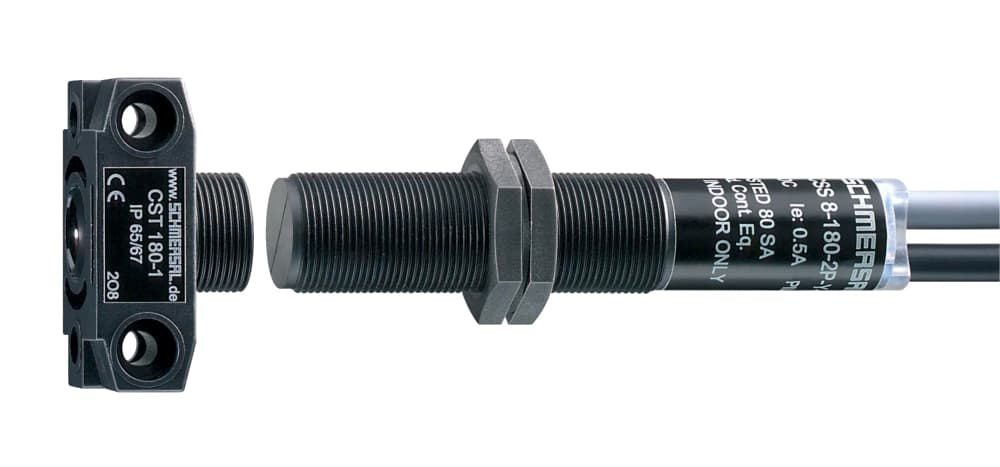

CSS 8-180-2P-E-L Schmersal Electronic Components
Part#:CSS 8-180-2P-E-L
Manufacturer:Schmersal
Alt. Part#:101167896
Product Lifecycle:Active
Get a quick Quote!
Safety sensors; Electronic safety sensors; Pre-wired cable 4-pole; Thermoplastic enclosure; Electronic contact-free, coded system; Misaligned actuation possible; High repeat accuracy of the switching points; Max. length of the sensor chain 200 m; Early wa
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the CSS 8-180-2P-E-L Schmersal price in the box on the right side or send a quick quote.
Product Details
- Housing construction form Cylinder, thread
- Integral System Diagnostics, status Yes
- Hysteresis (Switch distance), maximum 0.7 mm
- Terminal connector, Output 4-pole
- Length of sensor 92 mm
- Rated insulation voltage Ui 32 VDC
- Rated operating current (safety outputs) 500 mA
- Material of the nuts Glass-fibre, reinforced thermoplastic
- Gross weight 137.4 g
- Repeat accuracy R R 0.2 mm
- Switching frequency, approx. 3 Hz
- Storage and transport temperature, minimum -25 °C
- Wire cross-section 20 AWG
- Degree of pollution to VDE 0100 3
- Voltage, Utilisation category DC13 24 VDC
- Sensor topology Individual sensor or end sensor in a series
- Installation conditions (mechanical) not flush
- Active principle inductive
- Number of fail-safe digital outputs 2
- Tightening torque of nuts, maximum 3 Nm
- Storage and transport temperature, maximum +85 °C
- Operating voltage, maximum 26.4 VDC
- Output current, (fail-safe output), maximum 0.5 A
- Voltage, Utilisation category DC12 24 VDC
- Enclosure material Glass-fibre, reinforced thermoplastic
- Duration of risk, maximum 30 ms
- Ensured switch distance OFF Sar 10 mm
- width across flats 24 BK
- Protection rating II
- Rated operating voltage 24 VDC
- Current, Utilisation category DC13 0.5 A
- Reaction time, maximum 30 ms
- Short-circuit recognition Yes
- Switch distance 8 mm
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Rated impulse withstand voltage Uimp 0.8 kV
- Operating current 1,000 mA
- Current, Utilisation category DC12 0.5 A
- Standards IEC 61508, IEC 60947-5-3
- Number of Series-wiring of sensors 16
- Length of cable 2 m
- Ambient temperature, maximum +60 °C
- Restistance to shock 30 g / 11 ms
- Operating voltage, minimum 20.4 VDC
- Current leakage Ir 0.5 mA
- Terminal Connector Cable
- Ambient temperature, minimum -25 °C
- Overvoltage category III
- No-load supply current I0 50 mA
- Voltage drop Ud, maximum 0.5 V
- Active area Glass-fibre, reinforced thermoplastic
- Short circuit detection Yes
- Safety functions Yes
- Ensured switch distance ON Sao 7 mm
- ISO thread of the sensor M18
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Voltage type DC (direct current)
- Versions p-type
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents CSS 8-180-2P-E-L Specs
