MS 017-22Y Schmersal Electronic Components
Part#:MS 017-22Y
Manufacturer:Schmersal
Alt. Part#:101054923
Product Lifecycle:Active
Get a quick Quote!

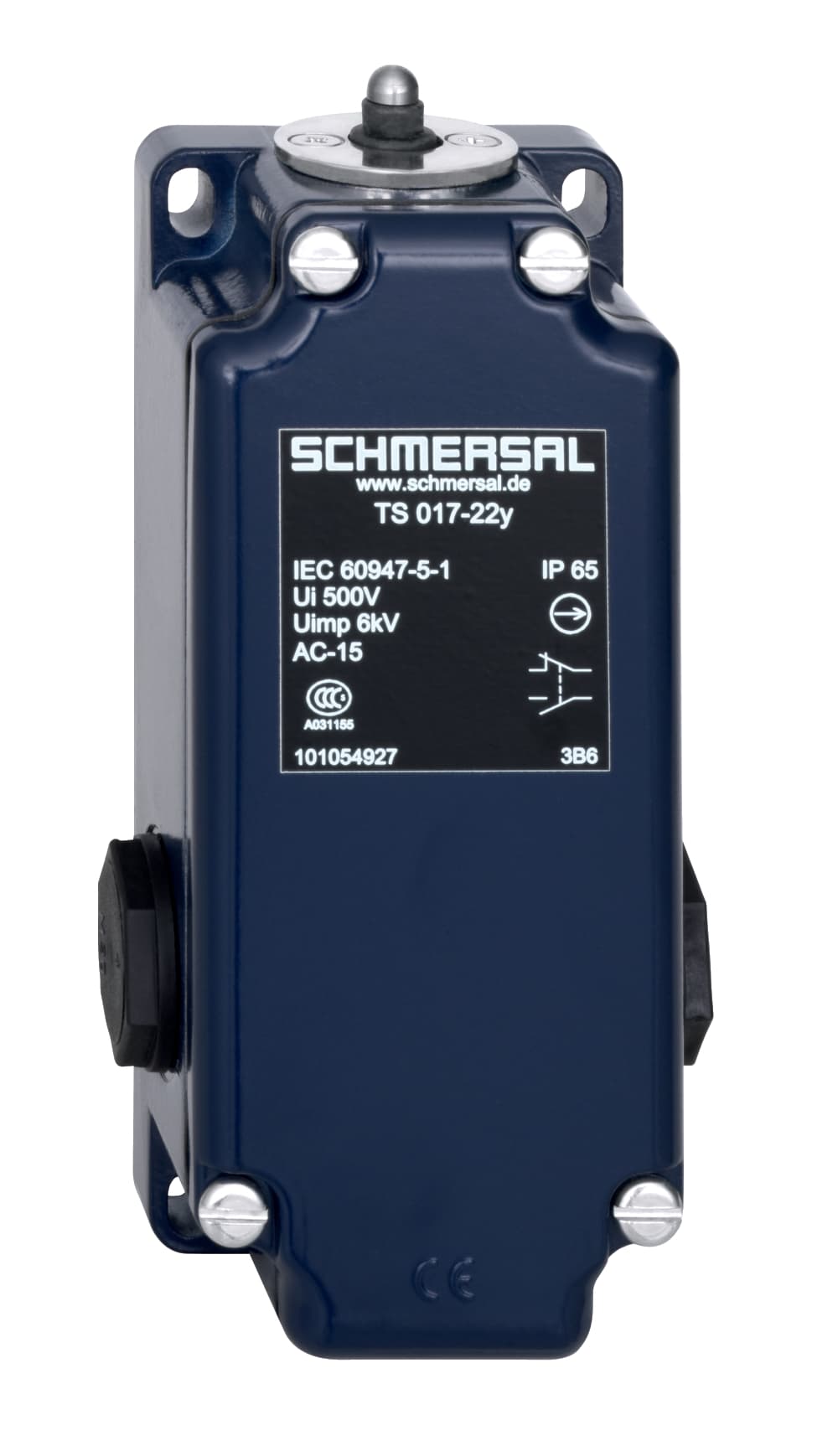

Position switch; Medium-duty position switches; 3 Cable entry M 20 x 1.5; Metal enclosure; 4 Contacts; 67 mm x 130 mm x 43 mm ( basic component)
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the MS 017-22Y Schmersal price in the box on the right side or send a quick quote.
Product Details
- Standards EN 60947-5-1
- Actuating speed, minimum 1 mm/min
- Length of sensor 43 mm
- Ambient temperature, maximum +90 °C
- Switching element NO contact, NC contact
- Number of openers 2
- Actuating speed, maximum 1 m/s
- Degree of protection IP65 to EN 60529
- Material of the contacts, electrical Silver
- Terminal Connector Screw connection
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Note (Switching element) galvanically separated contact bridges
- Rated insulation voltage Ui 500 V
- Gross weight 360 g
- Enclosure material Light-alloy diecast, paint finish
- Actuating element Plunger
- Enclosure coating material painted
- Active principle mechanical
- Mechanical life, minimum 5,000,000 Operations
- Diameter of the Plunger 6 mm
- Cable section, maximum 2.5 mm²
- Switchover time, maximum 40 ms
- Utilisation category AC-15 2.5 A
- Number of shutters 2
- Width of sensor 67 mm
- Actuating force 16 N
- Wire cross-section 13 AWG
- Ambient temperature, minimum -30 °C
- Thermal test current 10 A
- Switching principle Snap switch element
- Actuating angle 20 °
- Cable section, minimum 1.5 mm²
- Contact opening 2 x 1.2 mm
- Slide form Sphere
- Note (Actuating speed) Actuating speed with vertical actuating angle to switch axis
- Height of sensor 141 mm
- Bounce duration, maximum 2.5 ms
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents MS 017-22Y Specs
