MS 064-21Y Schmersal Electronic Components
Part#:MS 064-21Y
Manufacturer:Schmersal
Alt. Part#:101056924
Product Lifecycle:Active
Get a quick Quote!

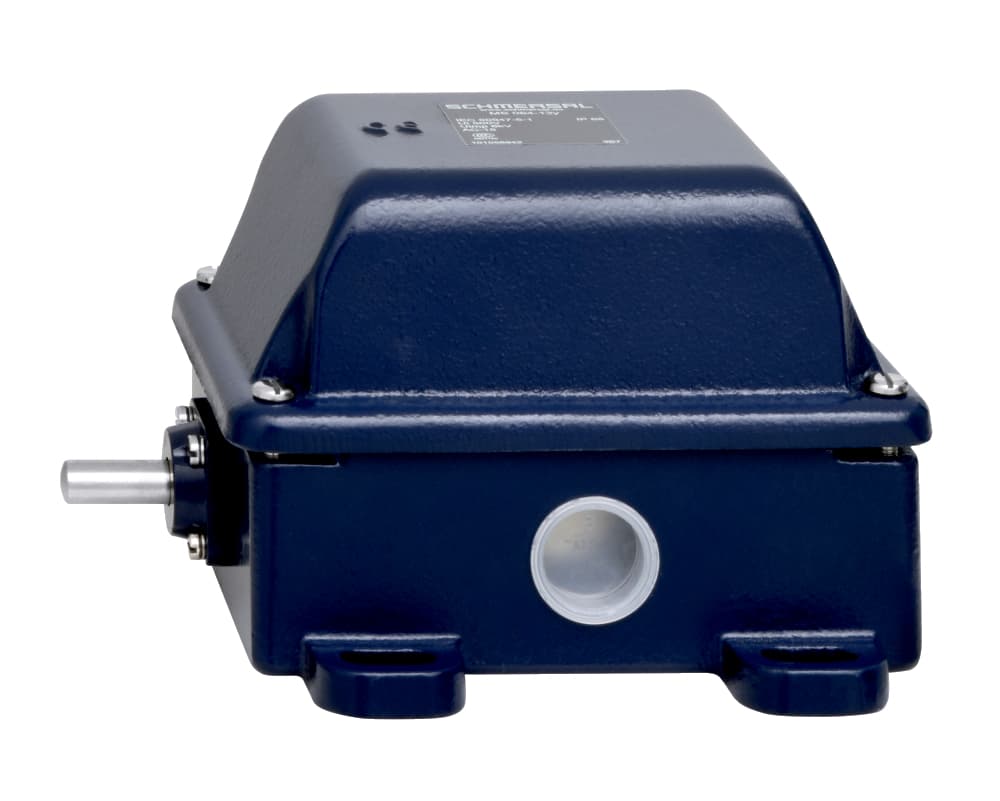

Automation technology; Position switch; Metal enclosure; 184 mm x 111 mm x 149 mm (basic component); 2 cable entries M 25 x 1.5; 3 or 4 Contacts; Actuator heads can be repositioned by 4 x 90°
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the MS 064-21Y Schmersal price in the box on the right side or send a quick quote.
Product Details
- Enclosure material Grey cast iron, galvanised
- Terminal Connector Screw connection
- Number of shutters 2
- Diameter of the Plunger 10 mm
- Rated insulation voltage Ui 500 V
- Actuating speed, maximum 1 m/s
- Gross weight 3,550 g
- Width of sensor 156 mm
- Utilisation category AC-15 25 A
- Enclosure coating material painted
- Mechanical life, minimum 30,000 Operations
- Actuating element Plunger
- Active principle mechanical
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Note (Actuating speed) Actuating speed with vertical actuating angle to switch axis
- Number of openers 1
- Height of sensor 111 mm
- Actuating speed, minimum 600 mm/min
- Cable section, minimum 1.5 mm²
- Material of the contacts, electrical Silver
- Degree of protection IP65 to EN 60529
- Switching element NO contact / NC contact
- Actuating angle 20 °
- Slide form Sphere
- Cable section, maximum 4 mm²
- Ambient temperature, maximum +90 °C
- Switching principle Snap switch element
- Standards EN 60947-5-1
- Contact opening 2 x 4 mm
- Length of sensor 149 mm
- Ambient temperature, minimum -30 °C
- Note (Switching element) galvanically separated contact bridges
- Wire cross-section 11 AWG
- Rated impulse withstand voltage Uimp 6 kV
- Switching frequency 1,000 /h
- Thermal test current 25 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents MS 064-21Y Specs
