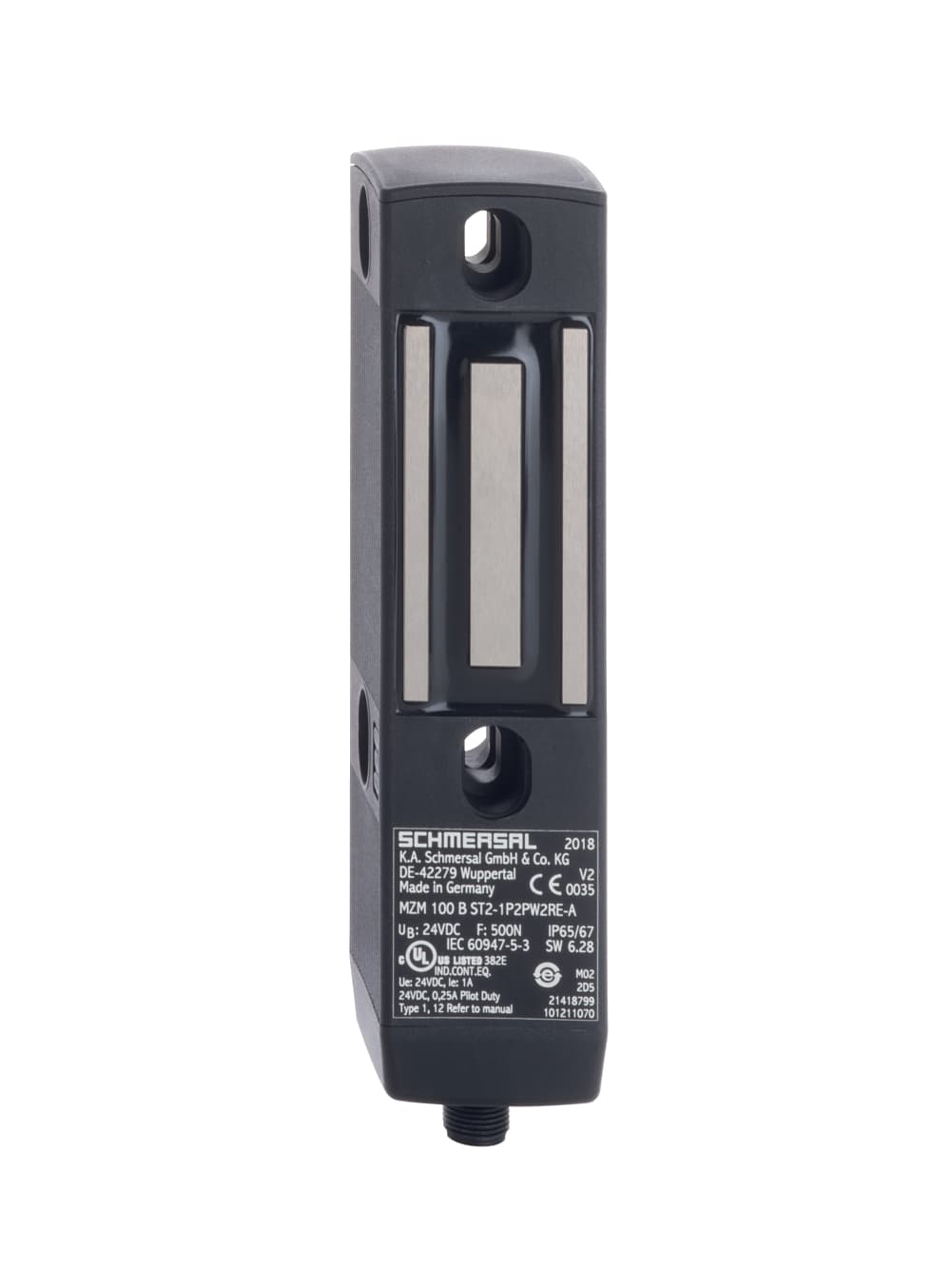

MZM 100 B ST2-1P2PW2R60M-A Schmersal Safety Switch Interlocks
Part#:MZM 100 B ST2-1P2PW2R60M-A
Manufacturer:Schmersal
Alt. Part#:101210772
Product Lifecycle:Active
Get a quick Quote!
MZM 100 B ST2-1P2PW2R60M-A Schmersal - Solenoid interlocks; Connector M12, 8-pole; Power to lock; Automatic latching; Solenoid interlocks (for the protection of man) with innovating and unique operating principle; 40 mm x 179 mm x 40 mm; Electronic contact-free, coded system; Thermoplastic enc
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switch Interlocks that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the MZM 100 B ST2-1P2PW2R60M-A Schmersal price in the box on the right side or send a quick quote.
Product Details
- Gross weight 623.5 g
- Coding level according to ISO 14119 Low
- Latching Yes
- Mechanical life, minimum 1,000,000 Operations
- Height of sensor 179 mm
- Ambient temperature, maximum +55 °C
- Rated insulation voltage Ui 32 VDC
- Note Cable length and cable section alter the voltage drop depending on the output current
- Reaction time, maximum 150 ms
- Power to lock Yes
- Number of Series-wiring of sensors 31
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Note (Relative humidity) non-condensing, non-icing
- Degree of pollution to VDE 0100 3
- Classification ZVEI CB24I, Source C1, C2, C3
- Standards IEC 61508, EN 60947-5-3, EN ISO 13849-1
- Short-circuit recognition Yes
- Clamping force, guaranteed 500 N
- Ambient temperature, minimum -25 °C
- Relative humidity, maximum 95 %
- Rated impulse withstand voltage Uimp 0.8 kV
- Switching frequency, maximum 1 Hz
- Current leakage Ir 0.5 mA
- general information Universal coding
- Actuator monitored Yes
- Terminal Connector Connector M12, 8-pole
- Protection rating III
- Required rated short-circuit current to EN 60947-5-1 100 A
- Voltage drop Ud, maximum 2 V
- Active principle inductive
- Safety functions Yes
- Latching force 60 N
- Resistance to vibrations to EN 60068-2-6 10 … 150 Hz, amplitude 0.35 mm
- Operating voltage, maximum 26.4 VDC
- Enclosure material Glass-fibre, reinforced thermoplastic
- Series-wiring Yes
- Clamping force, typically 750 N
- Restistance to shock 30 g / 11 ms
- Operating current 1,000 mA, 50 mA
- Rated operating current (safety outputs) 250 mA
- Time to readiness, maximum 4,000 ms
- Integral System Diagnostics, status Yes
- Width of sensor 40 mm
- Storage and transport temperature, maximum +70 °C
- No-load supply current I0 600 mA
- Classification ZVEI CB24I, Sink C1
- Current, Utilisation category DC13 0.05 A
- Duration of risk, maximum 150 ms
- Number of safety contacts 2
- Length of sensor 40 mm
- Relative humidity, minimum 30 %
- Operating voltage, minimum 20.4 VDC
- Short circuit detection Yes
- Note (Mechanical lifetime) Actuating speed < 0.5 m/s, Operations for door weights ≤ 5 kg
- Storage and transport temperature, minimum -25 °C
- Overvoltage category III
- Switching thresholds −3 V … 5 V (Low), 15 V … 30 V (High)
- Voltage, Utilisation category DC13 24 VDC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MZM 100 B ST2-1P2PW2R60M-A Description
MZM 100 B ST2-1P2PW2R60M-A Schmersal - Solenoid interlocks; Connector M12, 8-pole; Power to lock; Automatic latching; Solenoid interlocks (for the protection of man) with innovating and unique operating principle; 40 mm x 179 mm x 40 mm; Electronic contact-free, coded system; Thermoplastic enc
