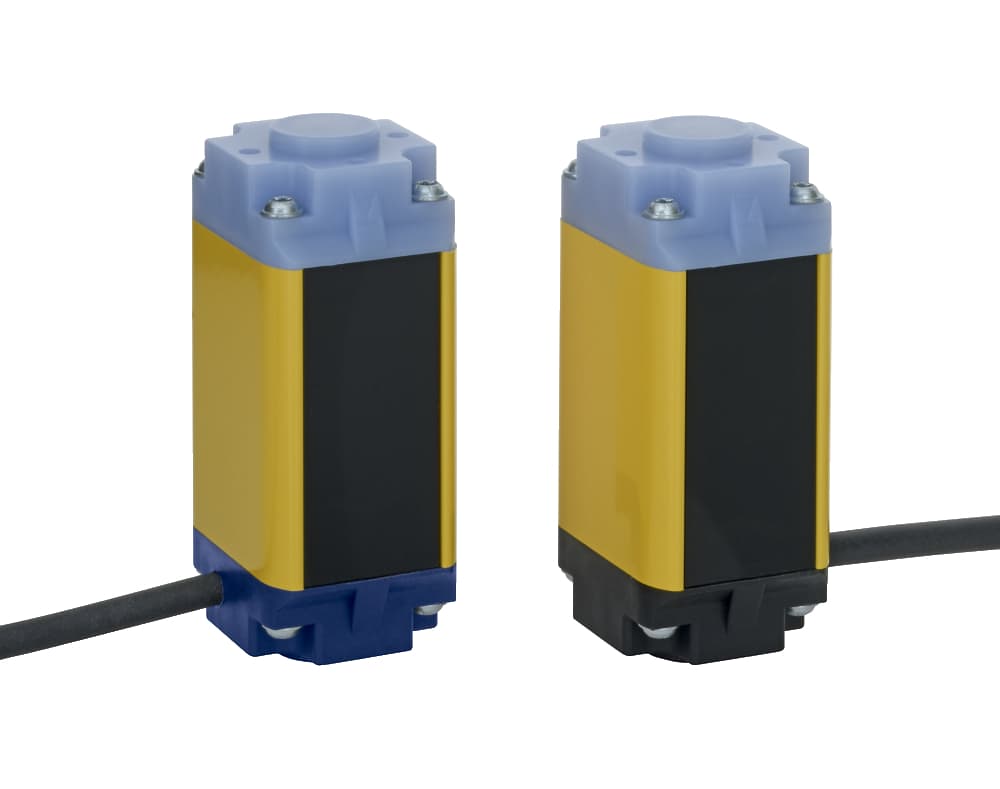

SLB440-ER-3-LST Schmersal Safety Light Curtains
Part#:SLB440-ER-3-LST
Manufacturer:Schmersal
Alt. Part#:103013527
Product Lifecycle:Active
Get a quick Quote!
SLB440-ER-3-LST Schmersal - Safety light barriers; SLB 440 Series -; Compact design With integral evaluation; Height range 75 m (Reserve up to 90 m); Safe OSSD outputs to PLe; Automatic start or restart interlock; Sturdy metal enclosure with M12 connector or cable; Version with heat
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SLB440-ER-3-LST Schmersal price in the box on the right side or send a quick quote.
Product Details
- Gross weight 180 g
- Range, protection field, minimum 300 mm
- Width 27.8 mm
- Voltage type DC (direct current)
- Versions p-type
- Enclosure material Aluminium
- Detection ability for test bodies at v = 1.6 m/s 40 mm
- Terminal connector, Recipient Cable with connector plug M12, 5-pole
- Storage and transport temperature, maximum +70 °C
- Electrical power consumption of the transmitter, maximum 5 W
- Integral System Diagnostics Yes
- Standards EN 61496-1, EN 61496-2
- Degree of protection IP67 to EN 60529
- Storage and transport temperature, minimum -30 °C
- Number of beams 1
- Integral System Diagnostics, status Yes
- Height 72 mm
- Switching voltage OSSD, HIGH signal 24 V
- Number of fail-safe digital outputs 2
- Reaction time, maximum 22 ms
- Terminal, Connector, Transmitter Cable with connector plug M12, 4-pole
- Output current, (fail-safe output), maximum 0.2 A
- Beam coding available Yes
- Restart interlock (manual reset) Yes
- Ambient temperature, maximum +50 °C
- Electrical power consumption of the receiver, maximum 5 W
- Reaction time, minimum 7 ms
- Wave length of the sensor 880 nm
- Length 33 mm
- Protection rating III
- Coding, light barrier beam 3
- Range, protection field, maximum 15,000 mm
- Ambient temperature, minimum -30 °C
- Length of cable, maximum 100 m
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLB440-ER-3-LST Description
SLB440-ER-3-LST Schmersal - Safety light barriers; SLB 440 Series -; Compact design With integral evaluation; Height range 75 m (Reserve up to 90 m); Safe OSSD outputs to PLe; Automatic start or restart interlock; Sturdy metal enclosure with M12 connector or cable; Version with heat
