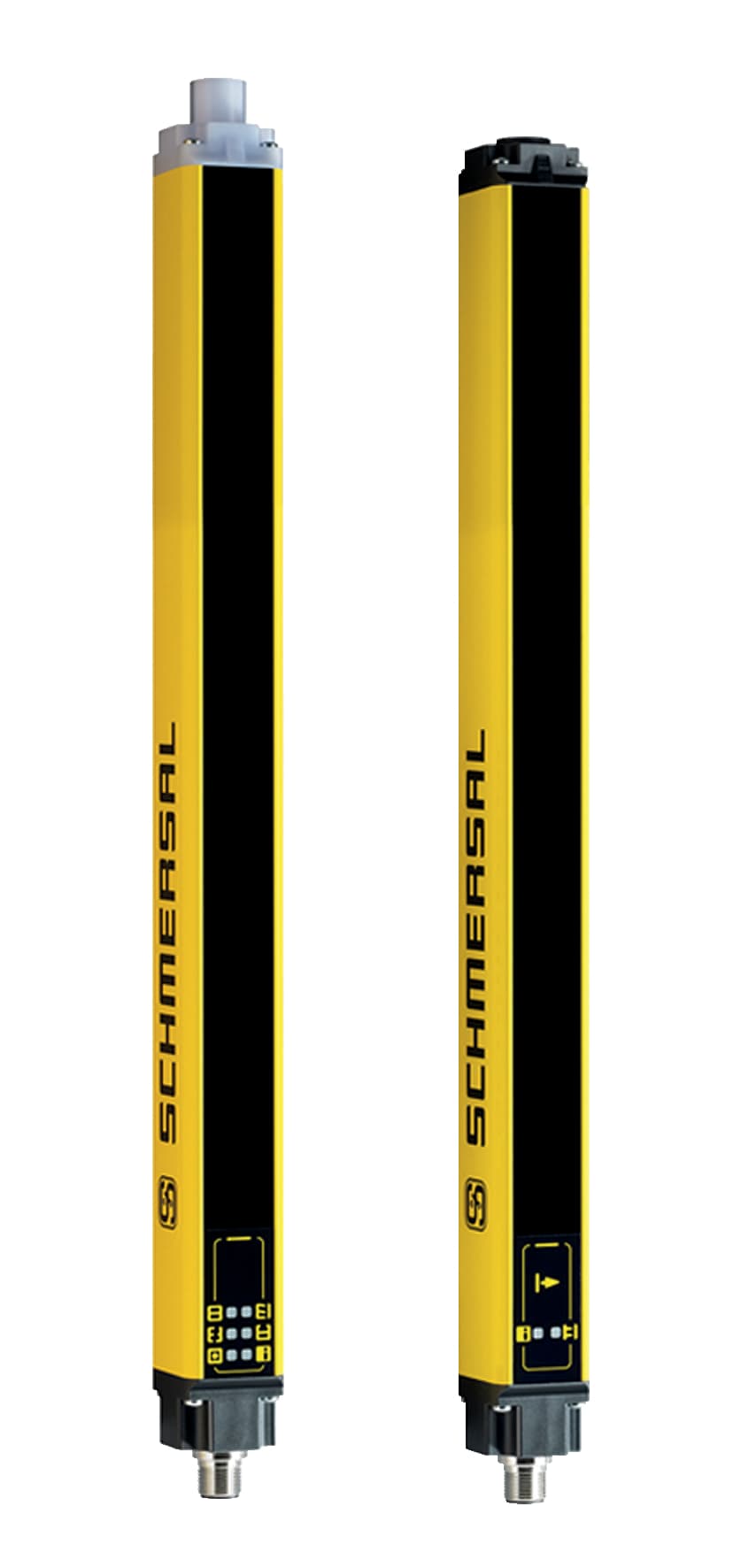

SLC445-ER-0330-30-01 Schmersal Safety Light Curtains
Part#:SLC445-ER-0330-30-01
Manufacturer:Schmersal
Alt. Part#:103005405
Product Lifecycle:Active
Get a quick Quote!
SLC445-ER-0330-30-01 Schmersal - Safety light curtains, Safety light grids; Safety light curtains; Multifunctional; Muting; Cyclic mode; Double acknowledgement/reset; Multiscan; Safety type 4 in accordance with IEC 61496-1; active integrated set-up tool; Blanking: fixed/floating; Status
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SLC445-ER-0330-30-01 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Clock control possible Yes
- Override Yes
- Number of fail-safe digital outputs 2
- Terminal, Connector, Transmitter Connector plug M12, 4-pole
- Ambient temperature, minimum -25 °C
- Electrical power consumption of the transmitter, maximum 5 W
- Gross weight 780 g
- Number of beams 16
- Wave length of the sensor 880 nm
- Ambient temperature, maximum +50 °C
- Protection rating III
- Enclosure material Aluminium
- Reduced resolution Yes
- Terminal Connector Connector
- Height of the Sensor (Transmitter) 411 mm
- Switching voltage OSSD, HIGH signal 24 V
- Restart interlock (manual reset) Yes
- Integral System Diagnostics, status Yes
- Range, protection field, maximum 10,000 mm
- Length of sensor 33 mm
- Electrical power consumption of the receiver, maximum 10 W
- Contactor control integrated Yes
- 7-segment display Yes
- Range, protection field, minimum 300 mm
- Degree of protection IP67 to EN 60529
- Voltage type DC (direct current)
- Beam coding available Yes
- Height of the protection field 330 mm
- Width of sensor 27.8 mm
- Storage and transport temperature, maximum +70 °C
- Reaction time, maximum 10 ms
- Standards EN 61496-1, CLC/TS 61496-2
- Hide function Yes
- Detection ability for test bodies at v = 1.6 m/s 30 mm
- Length of the connectable cable, maximum 100 m
- Storage and transport temperature, minimum -25 °C
- Versions p-type
- Muting function Yes
- Integral System Diagnostics Yes
- Terminal connector, Recipient Connector plug M12, 12-pole
- Height of the Sensor (Receiver) 421 mm
- Output current, (fail-safe output), maximum 0.25 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLC445-ER-0330-30-01 Description
SLC445-ER-0330-30-01 Schmersal - Safety light curtains, Safety light grids; Safety light curtains; Multifunctional; Muting; Cyclic mode; Double acknowledgement/reset; Multiscan; Safety type 4 in accordance with IEC 61496-1; active integrated set-up tool; Blanking: fixed/floating; Status
