TESF/ST24.1/0 Schmersal Electronic Components
Part#:TESF/ST24.1/0
Manufacturer:Schmersal
Alt. Part#:101182843
Product Lifecycle:Active
Get a quick Quote!

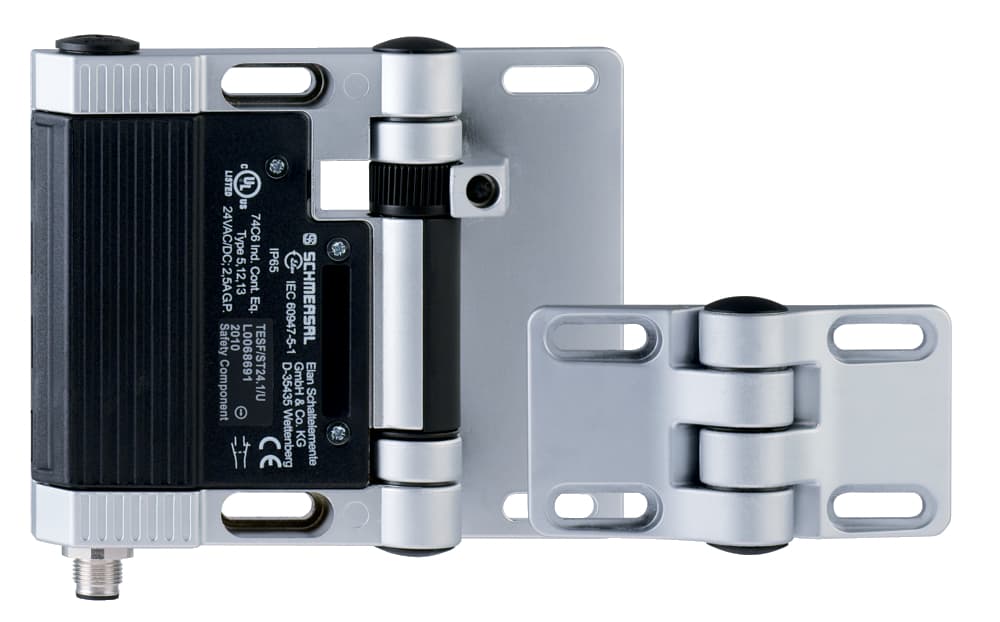

Safety switch for hinged guards; Hinge safety switch; 1 cable entries M 16 x 1.5; with fixed switching angle; 1 connector M12, 8-pole; Metal enclosure; Good resistance to oil and petroleum spirit; For left or right hinged doors; 141 mm x 115 mm x 21,5 mm;
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the TESF/ST24.1/0 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Standards EN 60947-5-1, BG-GS-ET-15
- Additional hinge Yes
- Ambient temperature, maximum +65 °C
- Thermal test current 2.5 A
- Switching element NO contact, NC contact
- Enclosure material Zinc die-cast
- Positive break angle 14 °
- Ambient temperature, minimum -25 °C
- Switching frequency 1,200 /h
- Mounting outside Yes
- Opening angle 180°
- Material of the contacts, electrical Silver-nickel alloy 10
- Mechanical life, minimum 1,000,000 Operations
- Number of safety contacts 2
- Length of sensor 21.5 mm
- Number of auxiliary contacts 2
- Terminal Connector Plug-in connection, bottom
- Utilisation category AC-15 2 A
- Gross weight 840 g
- Height of sensor 115 mm
- Utilisation category DC-13 1 A
- Rated insulation voltage Ui 250 V
- Switching principle Creep circuit element
- Rated impulse withstand voltage Uimp 0.8 kV
- Colour of the housing Black
- Width of sensor 141 mm
- Degree of protection IP65
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents TESF/ST24.1/0 Specs
