TS 236-02Z-M20 Schmersal Electronic Components
Part#:TS 236-02Z-M20
Manufacturer:Schmersal
Alt. Part#:101163385
Product Lifecycle:Active
Get a quick Quote!

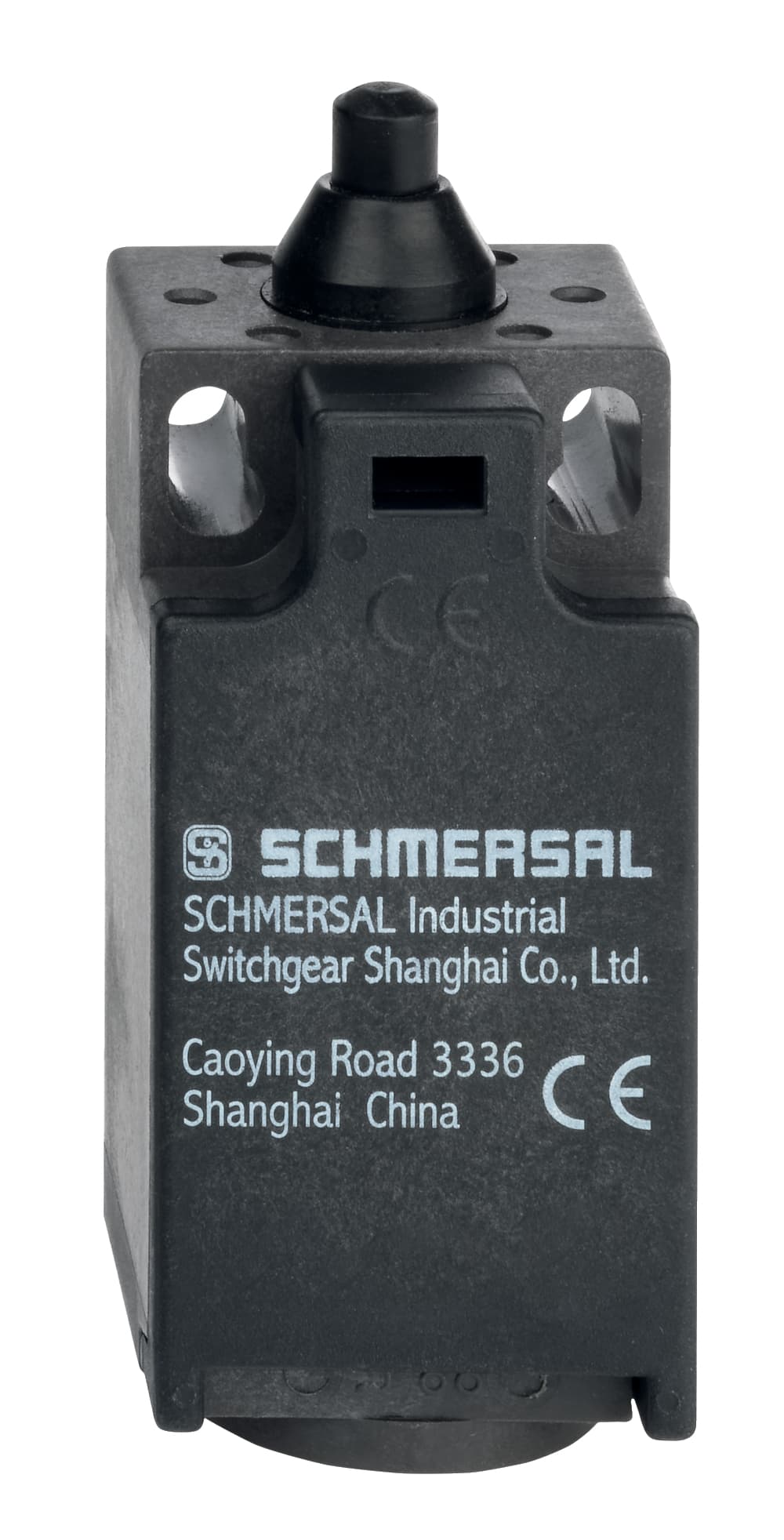

Position switch; 236; 1 Cable entry M 20 x 1.5; Thermoplastic enclosure; Good resistance to oil and petroleum spirit; Wide range of alternative actuators; 30 mm x 58,5 mm x 30 mm; Double-insulated; Mounting details to EN 50047; Actuator heads can be repos
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the TS 236-02Z-M20 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Material of the contacts, electrical Silver
- Positive break force, minimum 19 N
- Length of sensor 30 mm
- Switching element Opener (NC)
- Gross weight 95 g
- Actuating element Plunger
- Actuating speed, minimum 60 mm/min
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Rated impulse withstand voltage Uimp 6 kV
- Safety functions Yes
- Terminal Connector Screw connection
- Ambient temperature, maximum +80 °C
- Housing construction form Norm construction design
- Note Bounce duration Bounce duration in accordance with actuating speed
- Cable section, maximum 2.5 mm²
- Ambient temperature, minimum -30 °C
- Standards IEC 60947-5-1, EN ISO 13849-1, BG-GS-ET-15
- Cable section, minimum 0.75 mm²
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Switching principle Creep circuit element
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Actuator type to DIN EN 50047 B
- Actuating speed, maximum 1 m/s
- Height of sensor 73.5 mm
- Utilisation category AC-15 4 A
- Mechanical life, minimum 20,000,000 Operations
- Width of sensor 30 mm
- Thermal test current 10 A
- Switching frequency 5,000 /h
- Number of safety contacts 2
- Note (Switchover time) Switchover time in accordance with actuating speed
- Actuating force, minimum 9 N
- Rated insulation voltage Ui 250 V
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Utilisation category DC-13 24 VDC
