TS 236-11Z-M20-1894 Schmersal Electronic Components
Part#:TS 236-11Z-M20-1894
Manufacturer:Schmersal
Alt. Part#:101168163
Product Lifecycle:Active
Get a quick Quote!

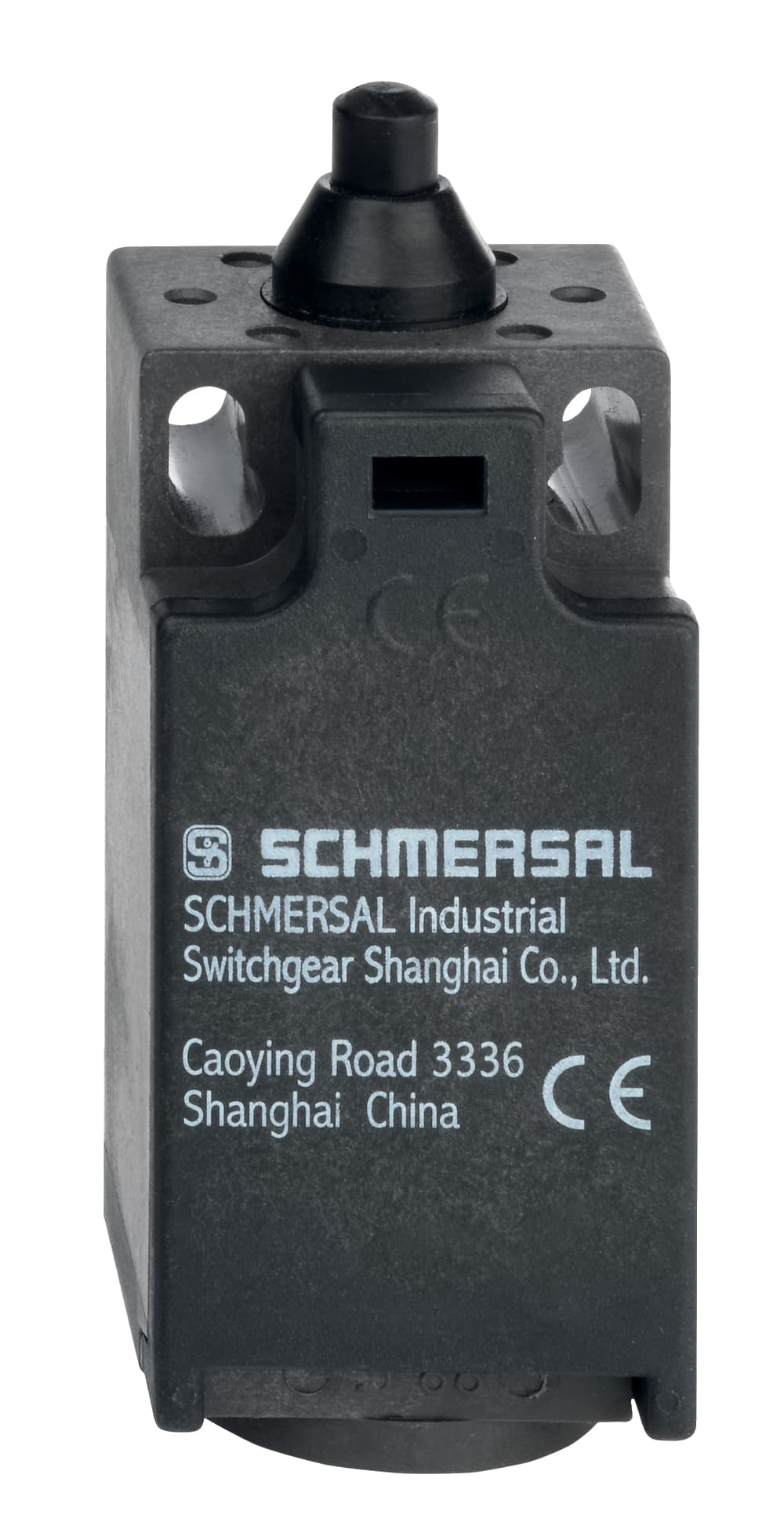

Position switch; 236; Thermoplastic enclosure; Good resistance to oil and petroleum spirit; Wide range of alternative actuators; 30 mm x 58,5 mm x 30 mm; Double-insulated; Mounting details to EN 50047; Actuator heads can be repositioned by 4 x 90°
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the TS 236-11Z-M20-1894 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Number of auxiliary contacts 1
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Mechanical life, minimum 20,000,000 Operations
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Thermal test current 10 A
- Utilisation category DC-13 1 A
- Actuating force, minimum 9 N
- Number of safety contacts 1
- Height of sensor 73.5 mm
- Housing construction form Norm construction design
- Actuating speed, minimum 60 mm/min
- Terminal Connector Screw connection
- Rated insulation voltage Ui 250 V
- Switching principle Creep circuit element
- Actuator type to DIN EN 50047 B
- Width of sensor 30 mm
- Note (Switchover time) Switchover time in accordance with actuating speed
- Rated impulse withstand voltage Uimp 6 kV
- Switching frequency 5,000 /h
- Gross weight 55 g
- Cable section, minimum 0.75 mm²
- Actuating element Plunger
- Ambient temperature, maximum +80 °C
- Switching element NO contact, NC contact
- Standards IEC 60947-5-1, EN ISO 13849-1, BG-GS-ET-15
- Positive break force, minimum 19 N
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Safety functions Yes
- Note Bounce duration Bounce duration in accordance with actuating speed
- Length of sensor 30 mm
- Utilisation category AC-15 240 VAC
- Material of the contacts, electrical Silver
- Actuating speed, maximum 1 m/s
- Cable section, maximum 2.5 mm²
- Ambient temperature, minimum -30 °C
- Required rated short-circuit current to EN 60947-5-1 1,000 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents TS 236-11Z-M20-1894 Specs
