BGF36060 Schneider Electric Industrial Automation Components

Schneider Electric BGF36060 Square D by Schneider Electric BGF36060 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design. It has a rated current of 60A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. The connection type is a terminal nut kit for fixed busbar connection on both line and load sides, offering a degree of protection of IP40. This MCCB has a mechanical durability of 15,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. It has three poles (3P) and falls under utilisation category A. The dimensions are 137 mm in height, 80 mm in depth, and 81 mm in width. It provides over-current protection fixed at 60A, short-circuit hold current protection fixed at 640A, and short-circuit trip current protection fixed at 960A. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 525 V. It features thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 60 AT. The electrical durability with load is 10,000 operations at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual). The short circuit breaking rating varies: 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.
Schneider Electric

Part#:BGF36060

Manufacturer:Schneider Electric

Product Lifecycle:Active

Get a quick Quote!

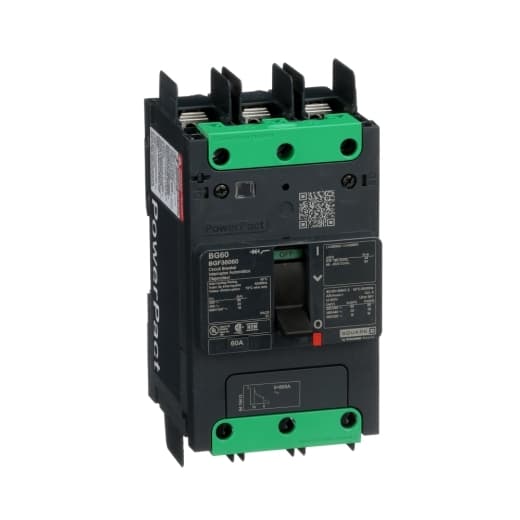

Square D by Schneider Electric BGF36060 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design. It has a rated current of 60A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. The connection type is a terminal nut kit for fixed busbar connection on both line and load sides, offering a degree of protection of IP40. This MCCB has a mechanical durability of 15,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. It has three poles (3P) and falls under utilisation category A. The dimensions are 137 mm in height, 80 mm in depth, and 81 mm in width. It provides over-current protection fixed at 60A, short-circuit hold current protection fixed at 640A, and short-circuit trip current protection fixed at 960A. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 525 V. It features thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 60 AT. The electrical durability with load is 10,000 operations at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual). The short circuit breaking rating varies: 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the BGF36060 Schneider Electric price in the box on the right side or send a quick quote.

Product Details

  • Product Or Component Type
    Circuit breaker
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Connection Pitch
    1.06 in (27 mm)
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Number Of Poles
    3P
  • Breaking Capacity Code
    G
  • Suitability For Isolation
    Yes IEC 60947-2
  • Width
    3.19 in (81 mm)
  • Depth
    3.15 in (80 mm)
  • Product Name
    PowerPact B
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Control Type
    Toggle
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Protected Poles Description
    3t
  • Trip Unit Name
    TM-D
  • Net Weight
    2.04 lb(US) (0.924 kg)
  • Trip Unit Technology
    Thermal-magnetic
  • Utilisation Category
    Category A
  • Device Short Name
    BG 060
  • Device Application
    Distribution
  • Continuous Current Rating
    80 %
  • Range
    PowerPact
  • 9 Mm Pitches
    9
  • Line Rated Current
    60 A
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • Electrical Connection
    Terminal nut ON and OFF end
  • Quantity Per Set
    Set of 1
  • Mechanical Durability
    15000 cycles IEC 947-1 Annex K ed 5.2
  • Height
    5.39 in (137 mm)
  • Color
    Gray RAL 7016)
  • Mounting Mode
    Clip-on 35 mm symmetrical DIN rail) By screws plate)
  • AWG Gauge
    AWG 14...AWG 8 aluminium/copper AWG 6...AWG 3/0 aluminium/copper
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
  • [Ics] Rated Service Breaking Capacity
    65 kA 220...240 V AC 50/60 Hz IEC 60947-2 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 35 kA 440 V AC 50/60 Hz IEC 60947-2
  • Breaking Capacity
    65 kA 208Y/120 V AC 50/60 Hz UL 489 65 kA 240 V AC 50/60 Hz UL 489 35 kA 480/277 V AC 50/60 Hz UL 489 35 kA 480 V AC 50/60 Hz UL 489 20 kA 250 V DC UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents BGF36060 Specs

BGF36060 Product Datasheet-1631033677370.pdf
BGF36060 Instruction Sheet-1631033677373.pdf
BGF36060 Catalog-1631033677377.pdf

1-year warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

By purchasing this item, you agree to the Terms & Conditions

Quotebeam is NOT an authorized distributor of Schneider Electric

Shipping and Delivery Worldwide

calculate costs and time

Secure Payment Processing

with money back guarantee

1 year warranty

on all parts

Responsive Customer Support

we're here to help!

Need more details?

Feel free to chat with us or check our FAQ

Schneider Electric Disclaimer:

The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Schneider Electric Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Schneider Electric, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
