Name: BGL26070
Brand: Schneider Electric

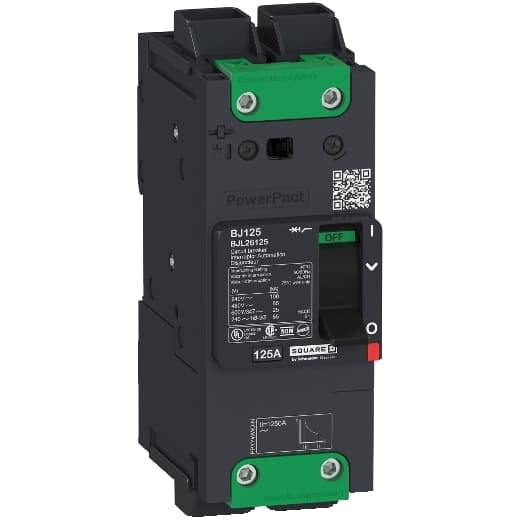

Schneider Electric BGL26070 Square D by Schneider Electric BGL26070 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGL sub-range. It features a PowerPact B-Frame 100 TMD 2P 70A design, operating at 600Y/347Vac with a rated impulse voltage (Uimp) of 8 kV. This breaker utilizes Everlink (Creep compensating) lugs for connections on both line and load sides and offers a degree of protection rated at IP40. It has a rated current of 70A and a rated voltage (AC) of 600Vac 600Y/347Vac. The mechanical durability is specified at 20,000 operations when not under load, and it can be mounted either on a DIN rail or as an individual unit on a plate. This 2-pole (2P) device measures 137 mm in height, 80 mm in depth, and 54 mm in width. It falls under utilisation category A and features protection settings for over-current fixed at 70A, short-circuit hold current fixed at 640A, and short-circuit trip current fixed at 960A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. Protection functions include thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 70 AT. Its electrical durability with load is rated at 10,000 operations at 440Vac; In. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies by voltage, with 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Y/347Vac for UL489 standards, and 20kA at 250Vdc. The trip unit type is thermal-magnetic (fixed) without a display.

Part#:BGL26070

Manufacturer:Schneider Electric

Product Lifecycle:Active

Get a quick Quote!

Square D by Schneider Electric BGL26070 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGL sub-range. It features a PowerPact B-Frame 100 TMD 2P 70A design, operating at 600Y/347Vac with a rated impulse voltage (Uimp) of 8 kV. This breaker utilizes Everlink (Creep compensating) lugs for connections on both line and load sides and offers a degree of protection rated at IP40. It has a rated current of 70A and a rated voltage (AC) of 600Vac 600Y/347Vac. The mechanical durability is specified at 20,000 operations when not under load, and it can be mounted either on a DIN rail or as an individual unit on a plate. This 2-pole (2P) device measures 137 mm in height, 80 mm in depth, and 54 mm in width. It falls under utilisation category A and features protection settings for over-current fixed at 70A, short-circuit hold current fixed at 640A, and short-circuit trip current fixed at 960A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. Protection functions include thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 70 AT. Its electrical durability with load is rated at 10,000 operations at 440Vac; In. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies by voltage, with 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Y/347Vac for UL489 standards, and 20kA at 250Vdc. The trip unit type is thermal-magnetic (fixed) without a display.

About the manufacturer: Schneider Electric is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the BGL26070 Schneider Electric price in the box on the right side or send a quick quote.

Product Details

Product Or Component Type
Circuit breaker
Continuous Current Rating
80 %
Connection Pitch
1.06 in (27 mm)
Depth
3.15 in (80 mm)
[Uimp] Rated Impulse Withstand Voltage
8 kV IEC 60947-2
Trip Unit Technology
Thermal-magnetic
Electrical Durability
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Product Name
PowerPact B
[Ui] Rated Insulation Voltage
800 V IEC 60947-2
Net Weight
1.70 lb(US) (0.769 kg)
Device Short Name
BG 070
Number Of Poles
2P
Local Signalling
for presence of auxiliary contacts flag (green)
Breaking Capacity Code
G
9 Mm Pitches
6
Device Application
Distribution
Control Type
Toggle
Power Wire Stripping Length
0.79 in (20 mm)
Range
PowerPact
[Ue] Rated Operational Voltage
525 V AC 50/60 Hz UL 489

Mechanical Durability

20000 cycles IEC 947-1 Annex K ed 5.2

Width

2.13 in (54 mm)

Suitability For Isolation

Yes conforming to IEC 60947-2

Color

Grey (RAL 7016)

Utilisation Category

Category A

Height

5.39 in (137 mm)

Line Rated Current

70 A

Quantity Per Set

Set of 1

Mounting Mode

Clip-on 35 x 15 mm symmetrical DIN rail) By screws plate)

Tightening Torque

44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)

Number Of Slots

1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in)

Electrical Connection

Everlink lug line Everlink lug load

AWG Gauge

AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper

[Ics] Rated Service Breaking Capacity

65 kA 220...240 V AC 50/60 Hz IEC 60947-2 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 35 kA 440 V AC 50/60 Hz IEC 60947-2

Breaking Capacity

65 kA 208Y/120 V AC 50/60 Hz UL 489 65 kA 240 V AC 50/60 Hz UL 489 35 kA 480/277 V AC 50/60 Hz UL 489 35 kA 480 V AC 50/60 Hz UL 489 20 kA 250 V DC UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Relevant products

BGL26080LU

Verified stock: 0

Square D by Schneider Electric BGL26080LU is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGL sub-range. It features a PowerPact B-Frame 100 TMD 2P 80A design for 600Y/347Vac with an 18kA interrupting capacity and includes Everlink (Creep compensating) lugs on both line and load sides, plus a Control Wire terminal (CWT) on the line side only. This MCCB has a rated impulse voltage (Uimp) of 8 kV, an IP40 degree of protection, and a rated current of 80A. It operates at a rated voltage of 600Vac 600Y/347Vac, with a mechanical durability of 20,000 operations when not under load. The unit can be mounted on a DIN rail or as an individual unit on a plate, features 2 poles (2P), and has dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. It falls under utilisation category A, with protection settings including over-current fixed at 80A and short-circuit protection with hold and trip currents fixed at 800A and 1200A, respectively. The rated voltage for DC applications is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. It offers thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 80 AT. The electrical durability with load is rated at 10,000 operations at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mechanism. The short circuit breaking rating varies by voltage, with 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Y/347Vac for UL489 standards, and 20kA at 250Vdc. The trip unit is a fixed thermal-magnetic type without a display.

Schneider Electric

BGL26100

Verified stock: 0

Square D by Schneider Electric BGL26100 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 100A design for 600Y/347Vac with an 18kA breaking capacity and 80% rated Everlink (Creep compensating) lugs on both line and load sides. It has a rated impulse voltage (Uimp) of 8 kV, an IP40 degree of protection, and supports a rated current of 100A with a rated voltage (AC) of 600Vac 600Y/347Vac. The MCCB offers mechanical durability of 20,000 operations and can be mounted either on a DIN rail or as an individual unit on a plate. It features 2 poles (2P), with dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. The utilisation category is A, and it includes protection settings for over-current fixed at 100A, short-circuit hold current fixed at 1000A, and short-circuit trip current fixed at 1500A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V, and a rated operating voltage (Ue) of 525 V. Protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 100 AT. Its electrical durability with load is rated for 10,000 operations at 440Vac; In, and it has a frame current rating of 100 AF. The operating mode is manual toggle, and the short circuit breaking rating varies from 65kA at 240Vac to 20kA at 250Vdc, according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

Schneider Electric

BGL26040

Verified stock: 0

Square D by Schneider Electric BGL26040 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 40A design for 600Y/347Vac with an 18kA breaking capacity and 80% rated Everlink (Creep compensating) lugs on both line and load sides. It has a rated impulse voltage (Uimp) of 8 kV and offers a degree of protection of IP40. The rated current is 40A, with a rated voltage (AC) of 600Vac 600Y/347Vac. It boasts a mechanical durability of 20,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. This 2-pole (2P) circuit breaker has dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. It falls under utilisation category A and features over-current protection fixed at 40A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. It provides thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 40 AT and an electrical durability of 10,000 operations at 440Vac; In. The frame current rating is 100 AF, operated by a toggle (manual) mechanism. The short circuit breaking rating includes 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, 18kA at 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric

BGL26110

Verified stock: 0

Square D by Schneider Electric BGL26110 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGL sub-range, featuring a PowerPact B-Frame 125 TMD 2P 110A design for 600Y/347Vac with an 18kA breaking capacity and 80% rated Everlink (Creep compensating) lugs on both line and load sides. It has a rated impulse voltage (Uimp) of 8 kV and offers a degree of protection of IP40. The rated current is 110A, with a rated voltage (AC) of 600Vac 600Y/347Vac. This MCCB has a mechanical durability of 20,000 operations at no load and can be mounted on a DIN rail or as an individual unit on a plate. It features 2 poles (2P) and has dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. The utilisation category is A, and it includes protection settings for over-current fixed at 110A, short-circuit hold current fixed at 1000A, and short-circuit trip current fixed at 1500A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. Protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 110 AT. Its electrical durability with load is 10,000 operations at 440Vac; In, and it has a frame current rating of 125 AF. The operating mode is manual toggle, and the short circuit breaking rating varies from 65kA at 240Vac to 20kA at 250Vdc, according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric

BGL26045

Verified stock: 0

Square D by Schneider Electric BGL26045 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 45A 600Y/347Vac 18kA design. It has a rated impulse voltage (Uimp) of 8 kV and utilizes Everlink (Creep compensating) lugs for connections on both line and load sides, offering a degree of protection of IP40. The rated current is 45A, with a rated voltage (AC) of 600Vac 600Y/347Vac. It boasts a mechanical durability of 20,000 operations at no load and can be mounted either on a DIN rail or as an individual unit on a plate. This 2-pole (2P) circuit breaker has dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. It falls under utilisation category A and features protection settings for over-current fixed at 45A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. Protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 45 AT. Its electrical durability with load is rated at 10,000 operations at 440Vac; In, and it has a frame current rating of 100 AF. The operating mode is toggle (manual), and it has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, and 18kA at 600Y/347Vac under UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric

BGL26100LU

Verified stock: 0

Square D by Schneider Electric BGL26100LU is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGL sub-range. It features a PowerPact B-Frame 100 TMD 2P 100A design, operating at 600Y/347Vac with a short circuit breaking rating of 18kA and includes Everlink (Creep compensating) lugs on both line and load sides, plus a Control Wire terminal (CWT) on the line side only. This MCCB has a rated impulse voltage (Uimp) of 8 kV, an IP40 degree of protection, and a rated current of 100A. It supports a fixed mounting on DIN rail or can be individually mounted on a plate, with dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. The BGL26100LU is designed for a utilisation category A, with a mechanical durability of 20,000 operations at no load and an electrical durability of 10,000 operations with load at 440Vac. Its protection settings include over-current fixed at 100A, short-circuit hold current fixed at 1000A, and short-circuit trip current fixed at 1500A. The device operates with a toggle (manual) mode and features thermal and magnetic protection functions without a display.

Schneider Electric

BGL26015LU

Verified stock: 0

Square D by Schneider Electric BGL26015LU is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 15A 600Y/347Vac 18kA design. It includes Everlink (Creep compensating) lugs on both line and load sides and a Control Wire terminal (CWT) on the line side only. This MCCB offers a degree of protection of IP40 and has a rated current of 15A with a rated voltage (AC) of 600Vac 600Y/347Vac. It is designed for 20000 operations in terms of mechanical durability at no load and can be mounted either on a DIN rail or as an individual unit on a plate. The device has 2 poles (2P), with dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. It falls under utilisation category A and features protection settings including over-current fixed at 15A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. Its protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 15 AT. The electrical durability with load is rated for 10000 operations at 440Vac; In, and the frame current rating is 100 AF. The operating mode is manual toggle, and it has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, 18kA at 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric

BGL26020

Verified stock: 0

Square D by Schneider Electric BGL26020 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 20A 600Y/347Vac 18kA design. It has a rated impulse voltage (Uimp) of 8 kV and utilizes Everlink (Creep compensating) lugs for connections on both line and load sides, offering a degree of protection of IP40. The rated current is 20A, with a rated voltage (AC) of 600Vac 600Y/347Vac. It boasts a mechanical durability of 20,000 operations at no load and can be mounted either on a DIN rail or as an individual unit on a plate. This 2-pole (2P) circuit breaker has dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. It falls under utilisation category A and features protection settings including over-current fixed at 20A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. Protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 20 AT. Its electrical durability with load is rated at 10,000 operations at 440Vac; In, and it has a frame current rating of 100 AF. The operating mode is toggle (manual), and it has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, 18kA at 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric
