EZM11200GCBTMS Schneider Electric Industrial Automation Components

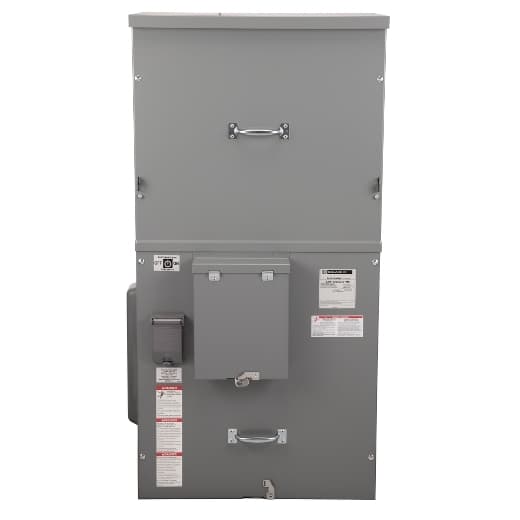

Schneider Electric EZM11200GCBTMS Square D by Schneider Electric EZM11200GCBTMS is a meter center main unit designed for wall mounting with a steel enclosure and aluminium busbar. It offers a degree of protection rated at NEMA 3R and has dimensions of H1659mm x W602mm x D346mm (H65.31" x W23.7" x D13.62"). This unit operates at a rated voltage of 120Vac/240Vac and is suitable for indoor or rainproof metering applications. It is a single-phase (1PH-3W) network type device, pre-equipped with an incoming breaker and an Energy Reduction Maintenance Switch (ERMS). The rated current for both the main unit and the busbar is 1200A. It accommodates 1 x 6AWG to 300kcmil aluminium/copper lugs for the ground and 4 x 3/0AWG to 500kcmil aluminium/copper lugs for phase and neutral connections.
Schneider Electric

Part#:EZM11200GCBTMS

Manufacturer:Schneider Electric

Product Lifecycle:Active

Get a quick Quote!

Square D by Schneider Electric EZM11200GCBTMS is a meter center main unit designed for wall mounting with a steel enclosure and aluminium busbar. It offers a degree of protection rated at NEMA 3R and has dimensions of H1659mm x W602mm x D346mm (H65.31" x W23.7" x D13.62"). This unit operates at a rated voltage of 120Vac/240Vac and is suitable for indoor or rainproof metering applications. It is a single-phase (1PH-3W) network type device, pre-equipped with an incoming breaker and an Energy Reduction Maintenance Switch (ERMS). The rated current for both the main unit and the busbar is 1200A. It accommodates 1 x 6AWG to 300kcmil aluminium/copper lugs for the ground and 4 x 3/0AWG to 500kcmil aluminium/copper lugs for phase and neutral connections.

About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the EZM11200GCBTMS Schneider Electric price in the box on the right side or send a quick quote.

Product Details

  • Bus Rated Current
    1200 A
  • Main Type
    Main Circuit Breaker
  • Device Mounting
    Wall mounted
  • [Ue] Rated Operational Voltage
    120/240 V AC
  • Service Feed Location
    OH
  • Enclosure Material
    Steel
  • Main Rated Current
    1200 A
  • Height
    65.31 in (1658.87 mm)
  • Material
    Aluminium busbar
  • Width
    23.70 in (601.98 mm)
  • Product Or Component Type
    Meter center main unit
  • Range Of Product
    EZ meter-pak
  • Wiring Configuration
    3-wire
  • Depth
    13.62 in (345.95 mm)
  • Number Of Phases
    1 phase in 1 phase out
  • Included Items
    Circuit breaker 1) 2P 1200 A 65 kA main supply, ready assembled Closing plate
  • Electrical Connection
    Lugs 1 AWG 6...300 kcmil aluminium/copper) ground Lugs 4 AWG 3/0...500 kcmil aluminium/copper) phase and neutral

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents EZM11200GCBTMS Specs

EZM11200GCBTMS Product Datasheet-1631034929706.pdf
