M9F53206 Schneider Electric Industrial Automation Components
Part#:M9F53206
Manufacturer:Schneider Electric
Product Lifecycle:Active
In-stock parts: 8
Jan 7, 2026

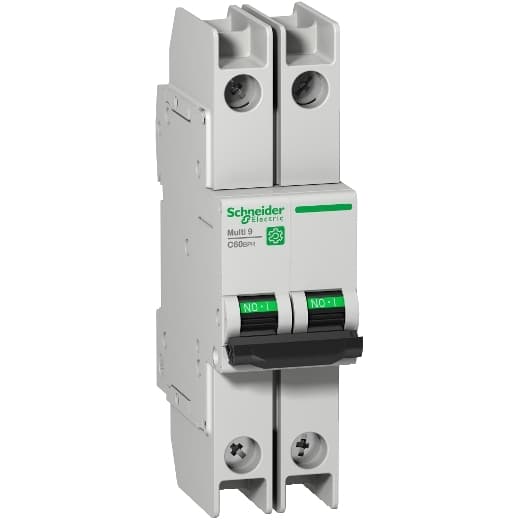

Schneider Electric M9F53206 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed with a 2 Pole configuration and a rated current of 6A. It features a rated insulation voltage (Ui) of 500 V and a rated impulse voltage (Uimp) of 6 kV. This MCB offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 125Vdc. It supports a rated voltage (AC) for phase-to-phase connections up to 440 V and ensures both poles are protected. The tripping curve for this device is classified as D.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the M9F53206 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Height 5.00 in (127 mm)
- Earth-Leakage Protection Without
- Product Name Multi 9 C60
- Suitability For Isolation Yes EN/IEC 60947-2
- Mounting Support DIN rail
- Number Of Protected Poles 2
- Mounting Mode Clip-on
- 9 Mm Pitches 4
- Device Short Name C60BPR
- Product Or Component Type Miniature circuit-breaker
- Trip Unit Technology Thermal-magnetic
- Contact Position Indicator Yes
- Color Gray
- Mechanical Durability 20000 cycles
- Control Type Toggle
- Line Rated Current 6 A 77 °F (25 °C) EN/IEC 60947-2
- Range Multi 9
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Poles Description 2P
- Curve Code D
- Local Signalling ON/OFF indication
- [Ui] Rated Insulation Voltage 500 V AC EN/IEC 60947-2
- Electrical Durability 10000 cycles
- Device Application Distribution
- Depth 2.83 in (72 mm)
- Width 1.42 in (36 mm)
- Provision For Padlocking Padlockable
- Tightening Torque 17.70 lbf.in (2 N.m) top or bottom
- Connections - Terminals Ring terminal top or bottom)
- Network Type DC AC
- Breaking Capacity 6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 14 kA AIR 240 V AC UL 489 10 k
- Magnetic Tripping Limit 12 x In +/- 20 % AC 17 x In +/- 20 % DC
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
- Product Certifications IEC CCC CSA UL
- Standards EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
- [Ics] Rated Service Breaking Capacity 4.5 kA 75 % GB 14048.2 - 240 V AC 7.5 kA 75 % GB 14048.2 15 kA 75 % GB 14048.2 4.5 kA 75 % EN/IEC 60947-2 - 125 V DC 7.5 kA 75 % EN/IEC 60947-2 - 440 V AC 15 kA 75 % EN/IEC 60947-2 - 415 V AC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents M9F53206 Specs
This item can ship within 24h!
1-year warranty
$281.88
Stock:
8
Select Qty:
$281.88
$281.88 each
