TM5SDO4T Schneider Electric Industrial Automation Components
Part#:TM5SDO4T
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

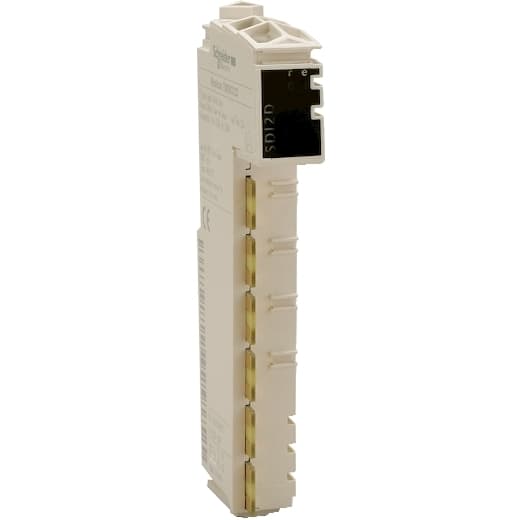

Schneider Electric TM5SDO4T is an I/O unit categorized under the Modicon TM5 I/O modules sub-range, designed specifically for DC digital output applications. This unit features a white color and utilizes a removable spring terminal block for connections, which is sold separately. It operates on a supply voltage range of 19-30Vdc, with a nominal voltage of 24Vdc, and can be mounted on a symmetrical DIN rail. The TM5SDO4T is equipped with four digital outputs, each capable of delivering 24Vdc at 500mA (Source). It has a current consumption of 32mA at 5Vdc via bus and 20mA at 24Vdc for input/output operations. The unit offers protection functions including reverse polarity, short-circuit, and overload protection. It operates efficiently within an ambient air temperature range of +14 to +131°F (-10 to +55°C) for horizontal installation, with a derating factor allowing operation up to +140°F (+60°C), and +14 to +122°F (-10 to +50°C) for vertical installation. The device is designed for storage in environments with temperatures ranging from -40 to +158°F (-40 to +70°C) and humidity levels of 5-95% without condensation. It has a degree of protection of IP20 and a power dissipation/loss of 0.86 W.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the TM5SDO4T Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Discrete Output Number 4
- Maximum Current Per Output Common 2 A
- Net Weight 0.06 lb(US) (0.025 kg)
- Product Or Component Type Discrete output module
- Output Voltage Limits 20.4...28.8 V
- Electrical Connection 3 wires
- Maximum Supply Current For Sensors 500 mA
- Discrete Output Type Transistor
- Current Per Channel 0.5 A
- Peak Output Current 12 A
- Marking CE
- Color White
- Output Voltage 24 V DC
- Discrete Output Logic Source
- Switching Frequency <= 500 Hz resistive
- Range Of Product Modicon TM5
- Maximum Power Dissipation In W 0.86 W
- Maximum Leakage Current 5 µA when switched off
- Isolation 500 Vrms AC insulation between channel and bus No insulation between channels
- Response Time <= 300 µs from state 0 to state 1 output <= 300 µs from state 1 to state 0 output
- Maximum Voltage Drop <0.3 V at 500 mA output <2 V at 500 mA sensor supply
- Current Consumption 20 mA 24 V DC input/output 32 mA 5 V DC bus
- Local Signalling 1 LED green power supply 1 LED red power supply 4 LEDs yellow output status
- Range Compatibility Modicon LMC058 PacDrive LMC motion controller Modicon M258
- Protection Type Reverse polarity protection Short-circuit protection Overload protection
- Product Compatibility PacDrive LMC Pro 2 PacDrive LMC Pro PacDrive LMC Eco Logic controller Motion controller
