.3318OT1BW56CFL-S WEG AC Motors
Part#:.3318OT1BW56CFL-S
Manufacturer:WEG
Alt. Part#:7909265584481
Product Lifecycle:Active
Get a quick Quote!

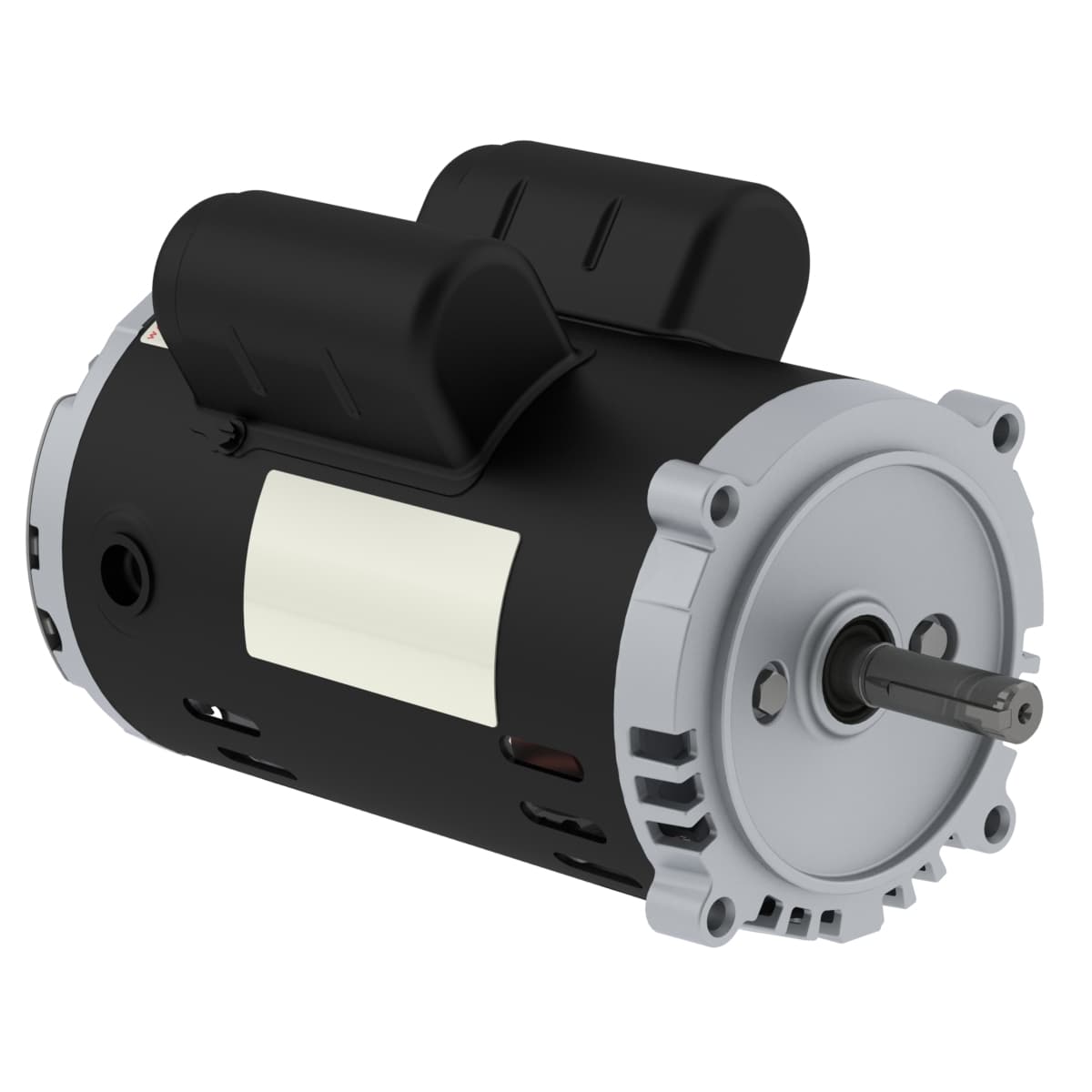

Rolled Steel 0.33 HP 4P W56C 1Ph 115/208-230 V 60 Hz IC01 - ODP - Footless
Check out the .3318OT1BW56CFL-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.33 HP
- Rated Speed1745 rpm
- Number of Poles4 Pole
- Voltage115/208-230 V
- Flange TypeC
- No load current 3.10/1.34-1.55 A
- Temperature rise 80 K
- Rated voltage 115/208-230 V
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Approx. weight³ 19.4 lb
- Frame W56C
- Moment of inertia (J) 0.0439 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Rated current 4.12/2.32-2.06 A
- Design N
- Duty Cycle Cont.(S1)
- Terminal box¹ Without Terminal Box
- Frequency 60 Hz
- Service factor 1.35 (1.00 @ 208V)
- Noise level² 50.0 dB(A)
- Flange C
- Number of Poles 4
- Rated torque 0.993 ft.lb
- Starting Method Direct On Line
- Number of poles 4
- Output 0.33 HP (0.25 kW)
- Locked rotor time 30s (cold) 17s (hot)
- Mounting F-1
- Standard NEMA MG-1
- L. R. Amperes 30.1/16.9-15.0 A
- LRC 7.3x(Code M)
- Enclosure IC01 - ODP
- Output rating 0.33 HP
- Rated speed 1745 rpm
- Breakdown torque 300 %
- Voltage 115/208-230 V
- Slip 3.06 %
- Locked rotor torque 320 %
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1800 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents .3318OT1BW56CFL-S Specs
1-year warranty
