.5018ES1RAD56NZ-S WEG AC Motors
Part#:.5018ES1RAD56NZ-S
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

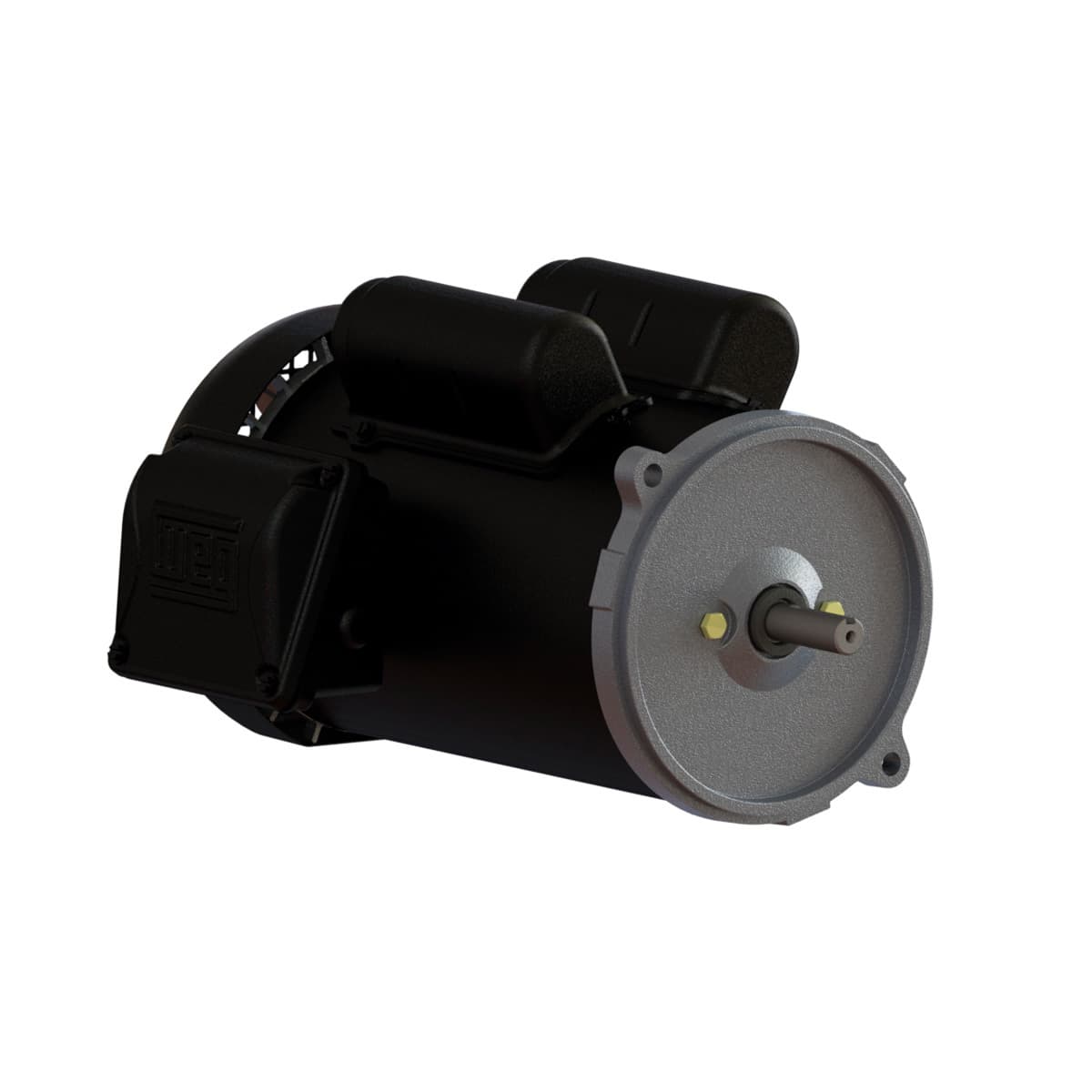

Rolled Steel 0.5 HP 4P 56Z 1Ph 115/208-230//110/220 V 60 Hz IC411 - TEFC - Footless
Check out the .5018ES1RAD56NZ-S WEG price in the box on the right side or send a quick quote.
Product Details
- L. R. Amperes 48.5/24.2 A
- Locked rotor time 50s (cold) 28s (hot)
- Slip 3.33 %
- Rated torque 1.81 ft.lb
- Ambient temperature -20°C to +40°C
- Noise level² 54.0 dB(A)
- Number of Poles 4
- Insulation Class F
- Mounting F-1
- Frequency 50 Hz
- No load current 6.70/3.35 A
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Rated voltage 110/220 V
- Moment of inertia (J) 0.0831 sq.ft.lb
- Output rating 0.5 HP
- Rated current 8.09/4.04 A
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated speed 1450 rpm
- Breakdown torque 270 %
- Altitude 1000 m.a.s.l.
- Synchronous speed 1800 rpm
- Frame 56Z
- Temperature rise 80 K
- Approx. weight³ 31.1 lb
- Output 0.5 HP (0.37 kW)
- Locked rotor torque 360 %
- Enclosure IC411 - TEFC
- Number of poles 4
- LRC 6.0x(Code M)
- Starting Method Direct On Line
- Degree of Protection IP55
- Voltage 115/208-230//110/220 V
- Flange N FLANGE
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents .5018ES1RAD56NZ-S Specs
