00112ES3H56CFL-S WEG AC Motors
Part#:00112ES3H56CFL-S
Manufacturer:WEG
Alt. Part#:7909158993482
Product Lifecycle:Active
Get a quick Quote!

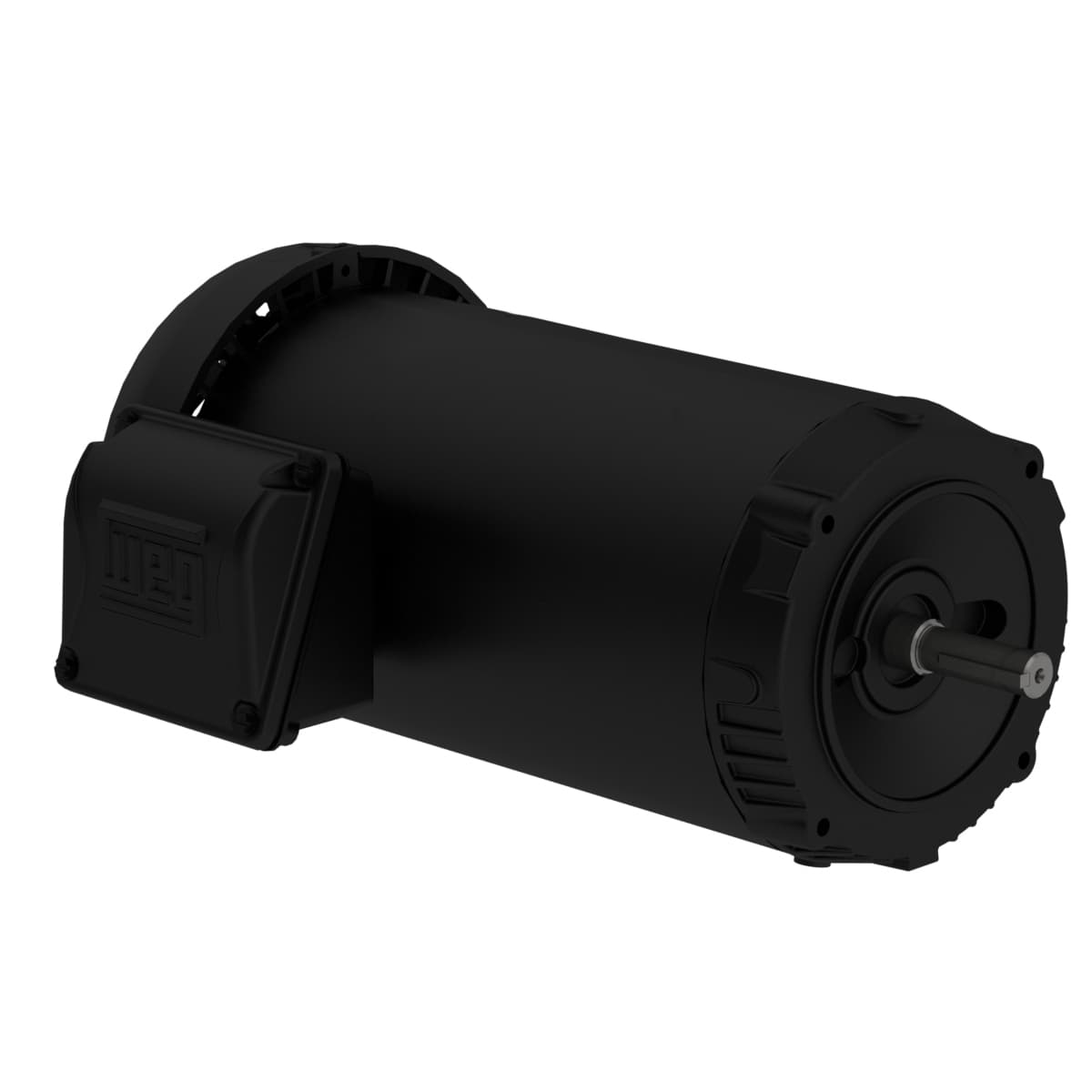

Rolled Steel Standard Efficiency 1 HP 6P 56C 3Ph 575 V 60 Hz IC411 - TEFC - Footless
Check out the 00112ES3H56CFL-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1 HP
- Rated Speed1145 rpm
- Number of Poles6 Pole
- Voltage575 V
- Flange TypeC
- Rated current 1.34 A
- Duty Cycle Cont.(S1)
- L. R. Amperes 7.48 A
- Starting Method Direct On Line
- Altitude 1000 m.a.s.l.
- Output rating 1 HP
- Number of Poles 6
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Standard NEMA MG-1
- Rated torque 4.59 ft.lb
- Service factor 1.15
- Voltage 575 V
- Frequency 60 Hz
- Design A
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1200 rpm
- Rated speed 1145 rpm
- Locked rotor time 27s (cold) 15s (hot)
- Insulation Class F
- Mounting F-1
- Frame 56C
- Breakdown torque 260 %
- Degree of Protection IP55
- Flange C
- Output 1 HP (0.75 kW)
- LRC 5.6x(Code J)
- Locked rotor torque 210 %
- Approx. weight³ 33.8 lb
- Slip 4.58 %
- Moment of inertia (J) 0.1597 sq.ft.lb
- Noise level² 50.0 dB(A)
- Terminal box¹ Left position
- Rated voltage 575 V
- No load current 0.920 A
- Ambient temperature -20°C to +40°C
- Number of poles 6
