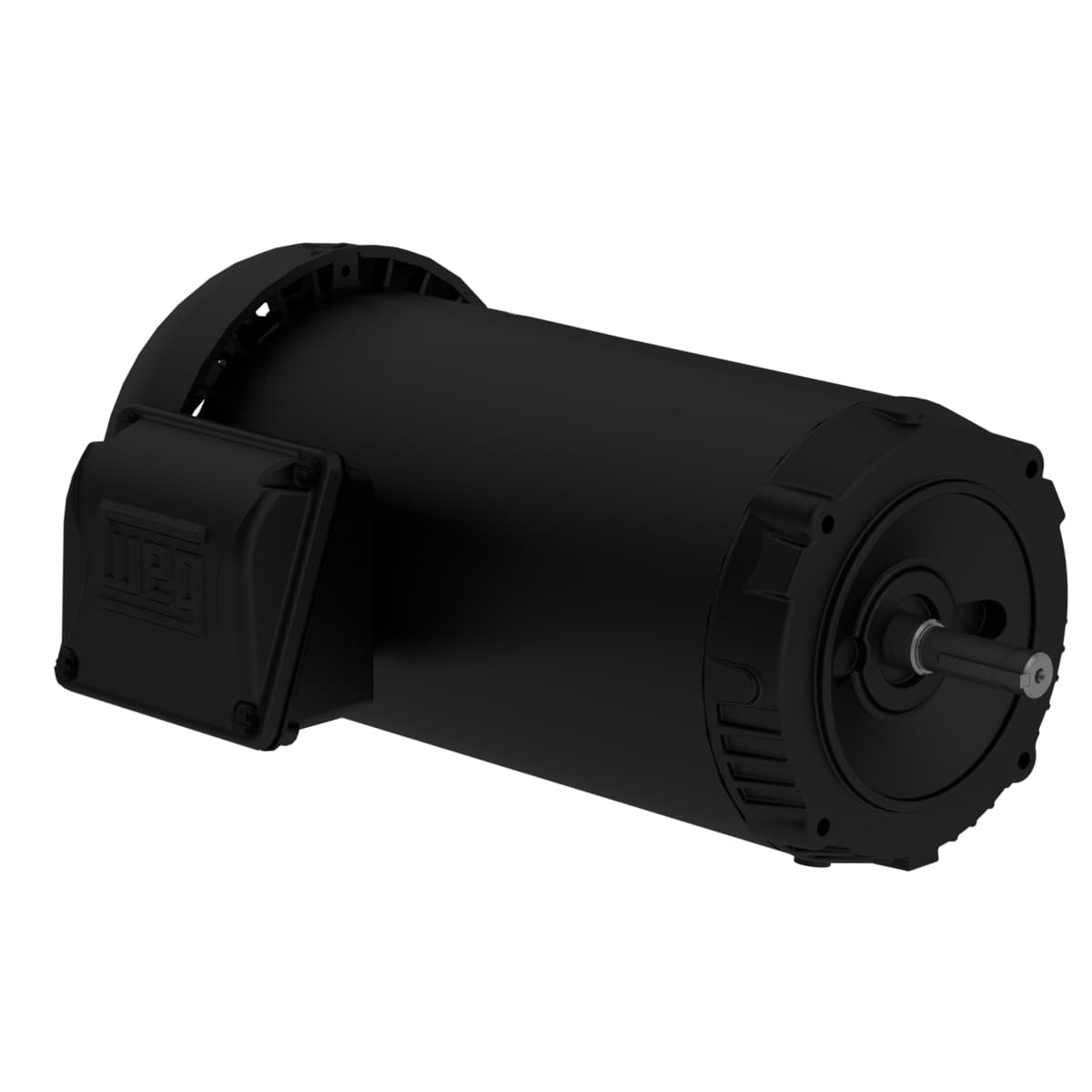

00112ET3H56CFL-S WEG AC Motors
Part#:00112ET3H56CFL-S
Manufacturer:WEG
Alt. Part#:7909492928522
Product Lifecycle:Active
Get a quick Quote!
Rolled Steel Premium Efficiency 1 HP 6P 56C 3Ph 575 V 60 Hz IC411 - TEFC - Footless
Check out the 00112ET3H56CFL-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1 HP
- Rated Speed1145 rpm
- Number of Poles6 Pole
- Voltage575 V
- Flange TypeC
- Output 1 HP (0.75 kW)
- Altitude 1000 m.a.s.l.
- Approx. weight³ 37.1 lb
- Number of Poles 6
- Rated torque 4.59 ft.lb
- Degree of Protection IP55
- Frame 56C
- No load current 0.810 A
- Locked rotor time 55s (cold) 31s (hot)
- Mounting F-1
- Output rating 1 HP
- LRC 5.8x(Code J)
- Temperature rise 80 K
- Standard NEMA MG-1
- Slip 4.58 %
- Design B
- Duty Cycle Cont.(S1)
- Flange C
- L. R. Amperes 7.33 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Rated current 1.26 A
- Moment of inertia (J) 0.1597 sq.ft.lb
- Service factor 1.15
- Enclosure IC411 - TEFC
- Rated voltage 575 V
- Locked rotor torque 229 %
- Starting Method Direct On Line
- Voltage 575 V
- Rated speed 1145 rpm
- Ambient temperature -20°C to +40°C
- Number of poles 6
- Frequency 60 Hz
- Breakdown torque 280 %
- Noise level² 50.0 dB(A)
- Synchronous speed 1200 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00112ET3H56CFL-S Specs
