00156OT3E143T-S WEG AC Motors
Part#:00156OT3E143T-S
Manufacturer:WEG
Alt. Part#:7909158435838
Product Lifecycle:Active
Get a quick Quote!

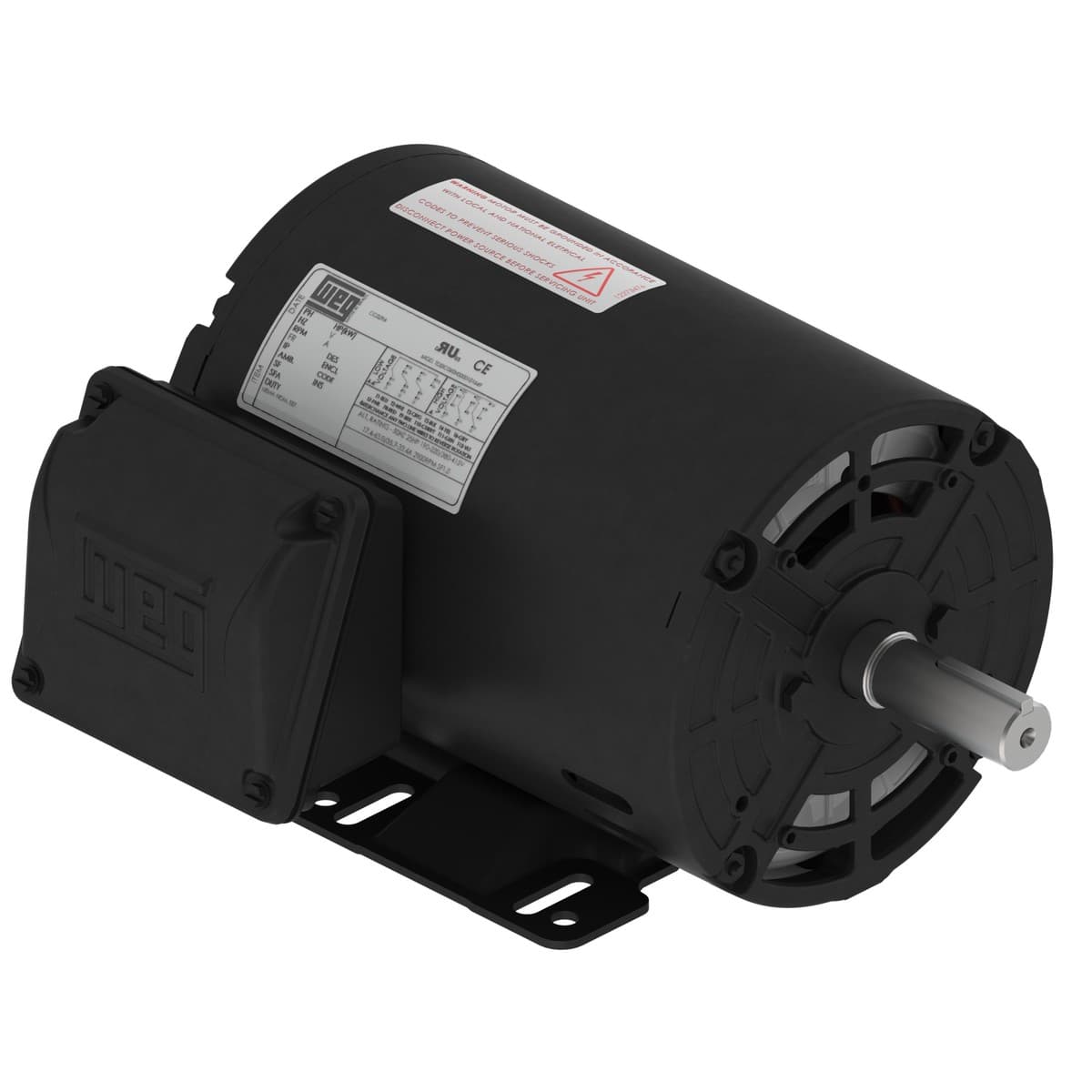

Rolled Steel NEMA Premium Efficiency 1.5 HP 2P 143/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00156OT3E143T-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1.5 HP
- Rated Speed3510 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeWithout
- L. R. Amperes 31.8/15.9 A
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Output 1.5 HP (1.1 kW)
- Voltage 230/460//190-220/380-415 V
- Slip 2.50 %
- Rated torque 2.24 ft.lb
- Enclosure IC01 - ODP
- Synchronous speed 3600 rpm
- LRC 8.6x(Code K)
- Frequency 60 Hz
- Breakdown torque 330 %
- Duty Cycle Cont.(S1)
- Approx. weight³ 29.4 lb
- Insulation Class F
- Mounting F-1
- Rated speed 3510 rpm
- Terminal box¹ Left position
- Rated current 3.70/1.85 A
- Moment of inertia (J) 0.0835 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Flange Without
- Rated voltage 230/460 V
- Locked rotor torque 210 %
- Noise level² 62.0 dB(A)
- Design B
- Output rating 1.5 HP
- Frame 143/5T
- No load current 1.62/0.809 A
- Altitude 1000 m.a.s.l.
- Starting Method Direct On Line
- Number of Poles 2
- Temperature rise 80 K
- Locked rotor time 34s (cold) 19s (hot)
- Service factor 1.15 (1.00 @ 208V)
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
