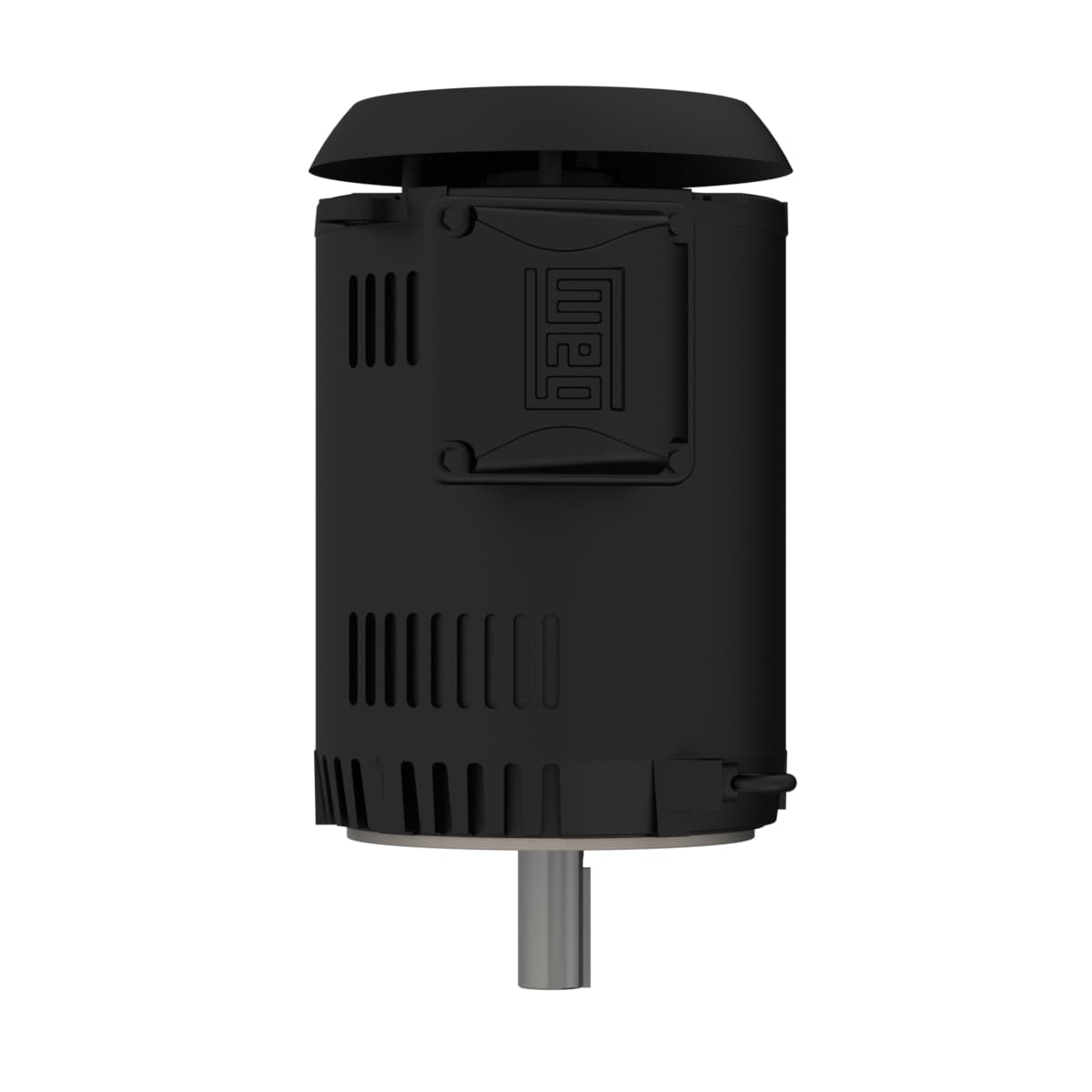

00212OT3ER184TC-S WEG AC Motors
Part#:00212OT3ER184TC-S
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
Rolled Steel NEMA Premium Efficiency 2 HP 6P 182/4TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless
Check out the 00212OT3ER184TC-S WEG price in the box on the right side or send a quick quote.
Product Details
- Frequency 60 Hz
- Service factor 1.15
- Enclosure IC01 - ODP
- Terminal box¹ Left position
- Number of Poles 6
- Moment of inertia (J) 0.2800 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Number of poles 6
- L. R. Amperes 38.9/19.5 A
- Locked rotor torque 200 %
- Duty Cycle Cont.(S1)
- Flange C
- LRC 6.6x(Code J)
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Slip 2.92 %
- Locked rotor time 59s (cold) 33s (hot)
- Noise level² 52.0 dB(A)
- Synchronous speed 1200 rpm
- Rated speed 1165 rpm
- Breakdown torque 300 %
- Standard NEMA MG-1
- Rated voltage 230/460 V
- Insulation Class F
- Approx. weight³ 73.9 lb
- Output 2 HP (1.5 kW)
- Rated torque 9.02 ft.lb
- Starting Method Direct On Line
- Voltage 230/460//190-220/380-415 V
- Frame 182/4TC
- No load current 3.42/1.71 A
- Altitude 1000 m.a.s.l.
- Output rating 2 HP
- Rated current 5.90/2.95 A
- Design B
- Mounting W-6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00212OT3ER184TC-S Specs
