00218ET3ESB145TCZ1-S WEG AC Motors
Part#:00218ET3ESB145TCZ1-S
Manufacturer:WEG
Product Lifecycle:Active
Get a quick Quote!

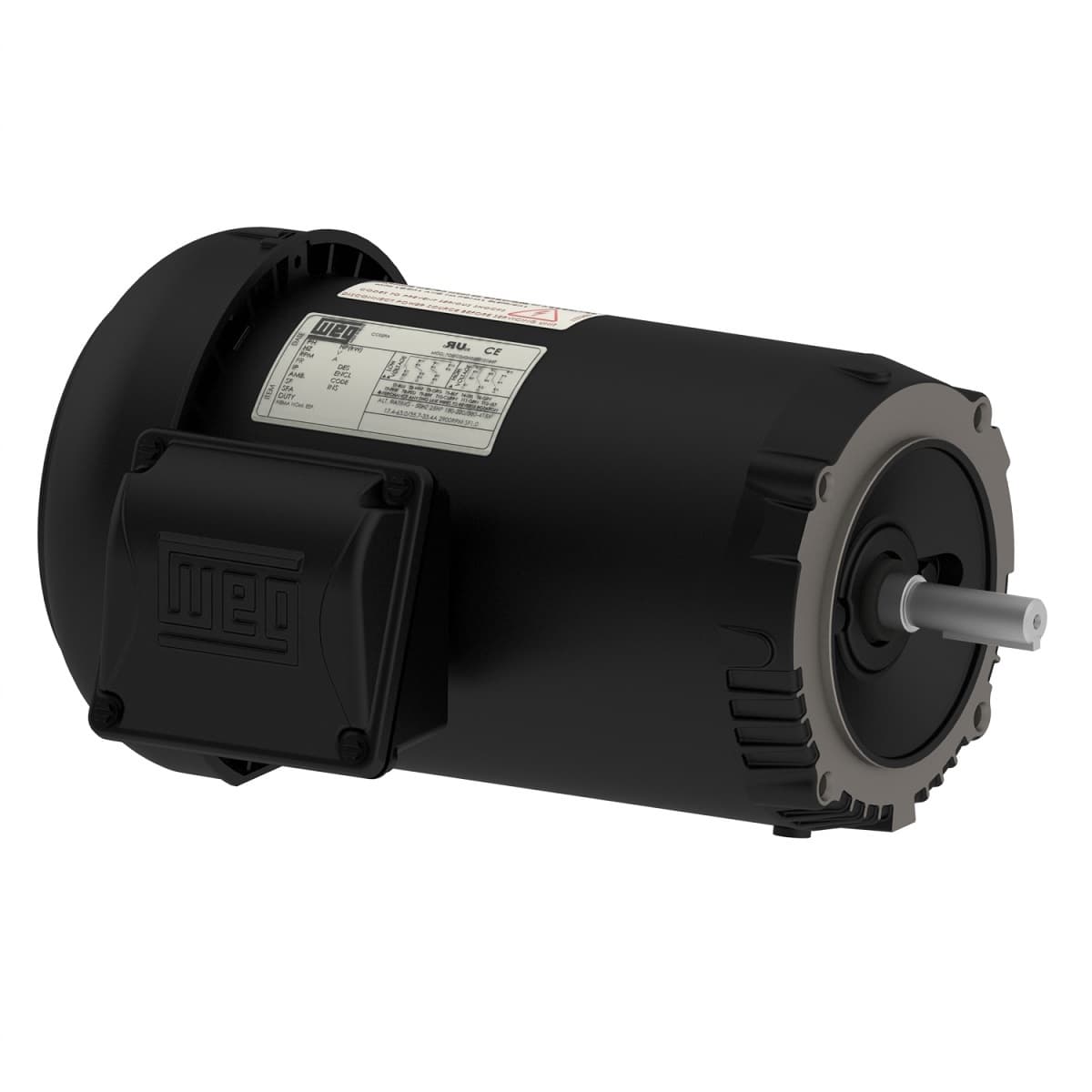

Rolled Steel NEMA Premium Efficiency 2 HP 4P 143/5TCZ 3Ph 208-230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless
Check out the 00218ET3ESB145TCZ1-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating2 HP
- Rated Speed1415 rpm
- Number of Poles4 Pole
- Voltage190/380 V
- Flange TypeC
- Slip 5.67 %
- No load current 2.75/1.37 A
- Temperature rise 55 K
- Rotation¹ Both (CW and CCW)
- Flange C
- L. R. Amperes 39.0/19.5 A
- Locked rotor time 0s (cold) 0s (hot)
- Ambient temperature -20°C to +65°C
- Synchronous speed 1800 rpm
- Rated current 6.50/3.25 A
- Rated torque 7.42 ft.lb
- Degree of Protection IP55
- Number of poles 4
- Number of Poles 4
- Service factor 1.00
- Enclosure IC411 - TEFC
- LRC 6.0x(Code H)
- Moment of inertia (J) 0.1305 sq.ft.lb
- Noise level² 49.0 dB(A)
- Rated speed 1415 rpm
- Insulation Class H
- Mounting F-1
- Frequency 50 Hz
- Design B
- Approx. weight³ 42.0 lb
- Frame 143/5TCZ
- Starting Method Direct On Line
- Standard NEMA MG-1
- Terminal box¹ Left position
- Output 2 HP (1.5 kW)
- Breakdown torque 240 %
- Duty Cycle Cont.(S1)
- Output rating 2 HP
- Rated voltage 190/380 V
- Locked rotor torque 210 %
- Altitude 1000 m.a.s.l.
- Voltage 208-230/460//190-220/380-415 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
